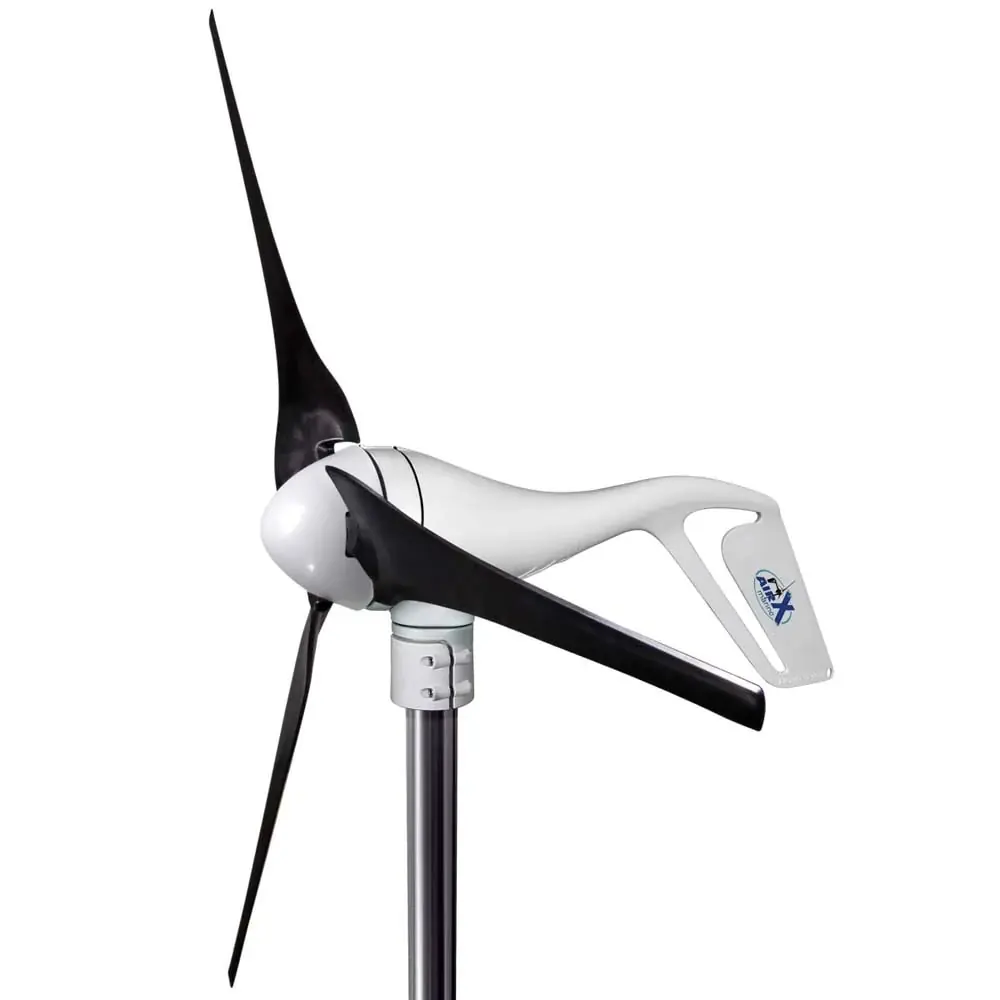

Air-X Marine 400 W Wind Generator
Air Silent-X
With Spreco Carbon Blades
Shipping Costs:
Manufactured by Ryse Energy in Texas, United States.
The Air Series small wind generators are by far the world’s best-selling wind generators with over 180,000 units sold worldwide. The Air-X has an incredible 400 W output squeezed into a small lightweight body with built in charge controller. It is recommended in areas with higher wind speeds and is specifically designed for use in marine environments whether on yachts, buoys, coastal or industrial installations. The heavy-duty design, a 3-year warranty and a full list of available spare parts makes the Air-X marine a sound investment and is still a favourite among sailors.
Lightweight, less than 6 kilos.
The Air-X weighs only 5.9 kilos, compared to as much as 20 kilos with other 400 W models. Weight is important as it simplifies installation by requiring less support and can be mounted on a pole on the stern or attached to an arch.
The Sailors Choice.
The Air-X marine has a powder coated marine grade aluminium body for maximum corrosion resistance and has been a favorite among sailors since its introduction, probably the most widely used generator on sailing boats.
Optimized for higher Wind Speeds.
At the factory setting of 14.1 volts (12 V model) adjustable for different battery types, the Air-X can produce over 25 A with a little over 20 knots of apparent wind, conditions which when sailing upwind are not uncommon. For constant high wind areas such as the trade wind regions we can expect 128 - 260 Ah/day with wind speeds from 15 - 20 Knots.
Built-in Charge Regulator

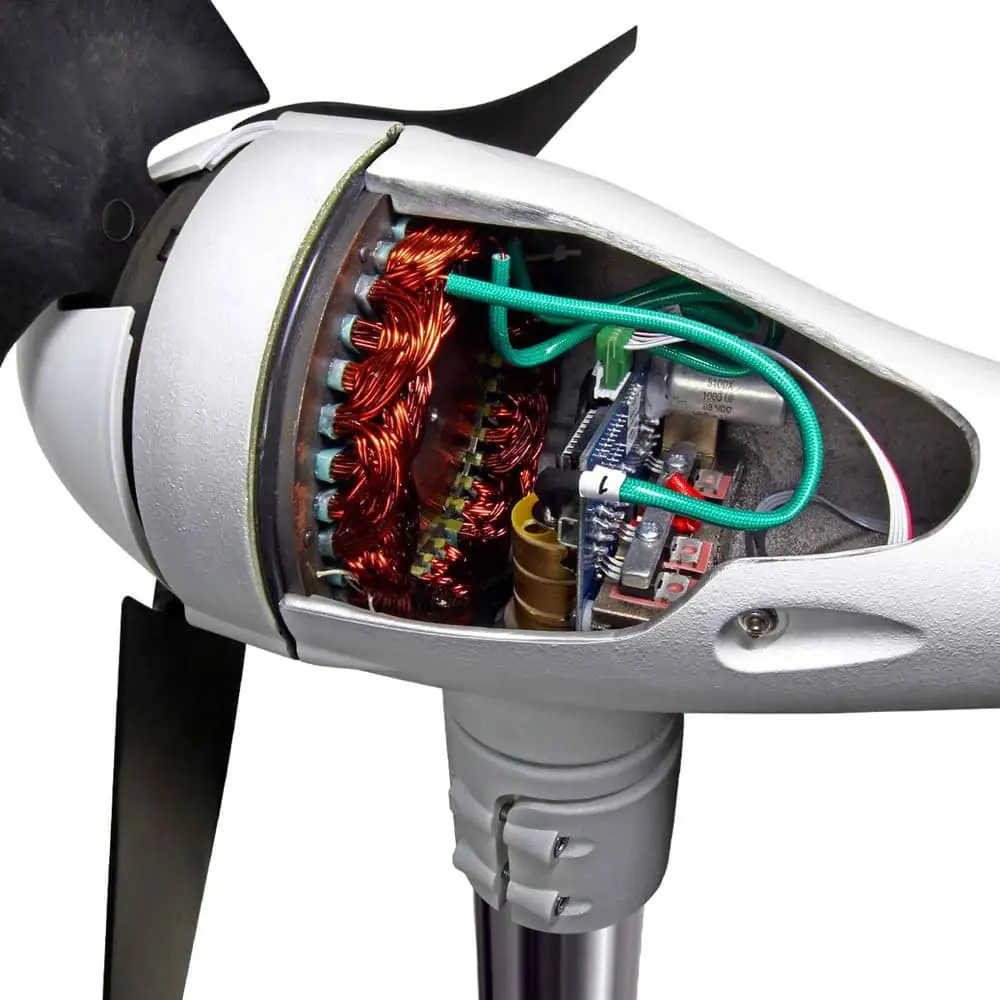

The Air-X Marine features a sophisticated built in charge regulator allowing connection directly to the batteries (circuit breaker or fuse is recommended) with a LED indication light on the bottom of the unit. The light turns on when the unit is charging and flashes when the internal regulator senses that the batteries are charged.

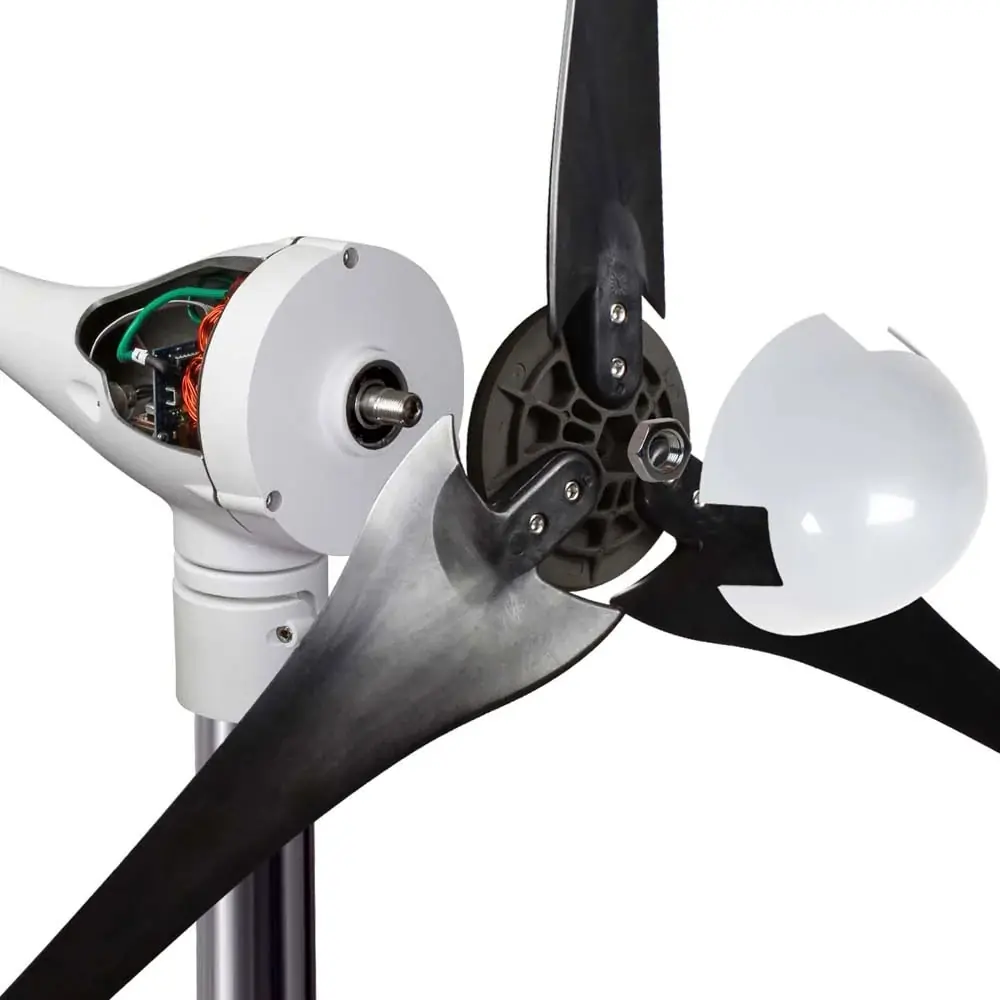

Air Silent-X, now available with Spreco carbon fibre blades and self centering hub.
All the advantages of the Air-X Marine and now with the ultra-silent performance of Spreco carbon fibre blades. The Silent-X is supplied standard with a balanced set of Silent Power Blades in place of the original Air-X blades and a self-centering blade hub.
Three position stop switch included.
Recommended fuse 40 Amps (12v model)
Technical Specifications

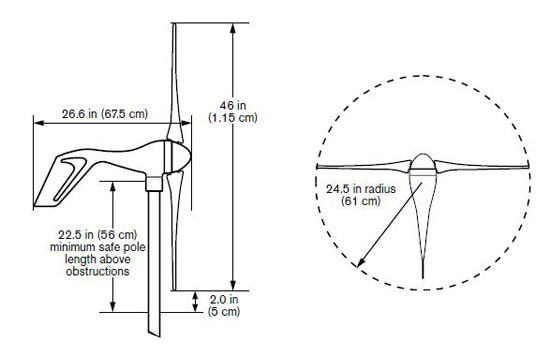

- 1.17 m Rotor Diameter.
- Weight 5.85 kg.
- Shipping Weight - 7.7 kg (686 x 318 x 229 mm).
- Mount 1.9 inch (48.3mm) outside diameter pipe.
- Start-Up Wind Speed 8 mph (3.58 m/s).
- 12, 24, and 48 VDC Versions.
- Rated Power 400 watts at 28 mph (12.5 m/s).
- 38 kWh /month at 12 mph (5.4 m/s).
- Microprocessor-based smart internal regulator with peak power tracking.
- Cast aluminum powder coated body.
- 3-Carbon fiber composite Blades.
- Electronic torque control Overspeed Protection.
- 110 mph (49.2 m/s) Survival Wind Speed.
- 3-year limited warranty
| Code | Air-X Marine | Availability | Price | |
|---|---|---|---|---|
|
RYSE ENERGY 1-ARXM-15-24
|
In stock
|
€1,669.00 (inc. VAT)
€1,379.34 (ex. VAT) |
|
|
RYSE ENERGY 1-ARXM-15-12
|
10 days
|
€1,669.00 (inc. VAT)
€1,379.34 (ex. VAT) |
|
|
RYSE ENERGY 1-ARSM-15-12
|
10 days
|
€1,949.00 (inc. VAT)
€1,610.74 (ex. VAT) |
|
|
RYSE ENERGY 1-ARSM-15-24
|
10 days
|
€1,949.00 (inc. VAT)
€1,610.74 (ex. VAT) |
|
|
RYSE ENERGY 1-ARXM-15-48
|
10 days
|
€1,669.00 (inc. VAT)
€1,379.34 (ex. VAT) |
|
|
RYSE ENERGY 1-ARSM-15-48
|
10 days
|
€1,949.00 (inc. VAT)
€1,610.74 (ex. VAT) |
