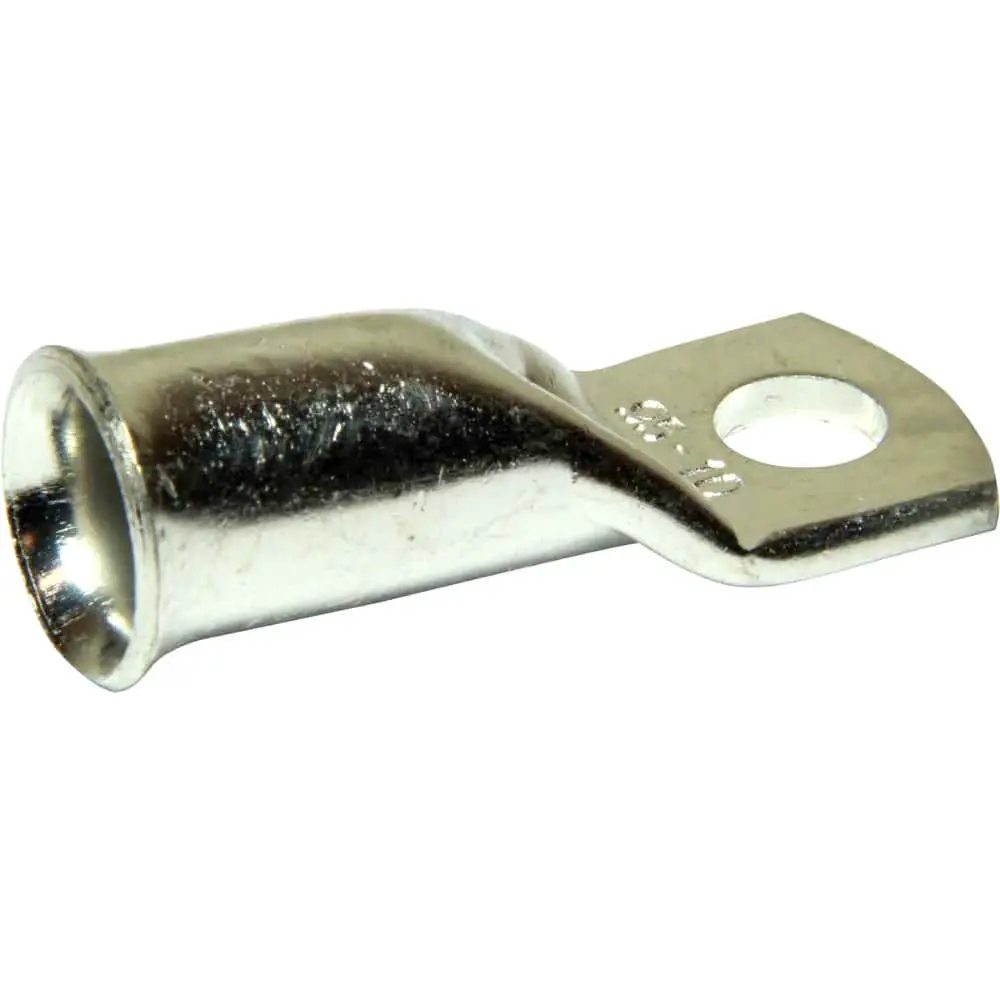

AMC Tinned Copper Tube Terminals

Price:0.57 ex. VAT
Price: 0.69 (inc. VAT)
AMC CTT06/8
8 in stock
10 days (approx.)
+
Shipping Costs:

Heavy duty tinned copper tube terminals with extra-long barrel.

Suitable for either crimping or soldering. The flared barrel opening and inspection hole facilitate correct cable insertion and the extra-long barrel allows double crimping for maximum strength and connectivity.


AMC Tinned Copper Terminal

Sold each.

Ref. Cable Stud C S L W
CTT06/8 6 mm² 8 mm 4.5 8.4 30 11
CTT10/8 10 mm² 8 mm 4.5 8.6 35 13
CTT10/10 10 mm² 10 mm 4.5 10.2 40 15
CTT16/8 16 mm² 8 mm 5.5 8.6 39 13
CTT16/10 16 mm² 10 mm 5.5 10.5 42 15
CTT25/8 25 mm² 8 mm 7.0 8.5 41 15
CTT25/10 25 mm² 10 mm 7.0 10.4 44 16
CTT35/8 35 mm² 8 mm 8.2 8.4 41 15
CTT35/10 35 mm² 10 mm 8.2 10.6 46 15
CTT50/8 35 mm² 8 mm 9.5 8.5 45 17.5
CTT50/10 50 mm² 10 mm 9.5 10.6 50 17.5
CTT70/8 70 mm² 8 mm 11.5 8.5 47 21
CTT70/10 70 mm² 10 mm 11.5 10.2 52 21
CTT95/10 95 mm² 10 mm 13.4 10.4 59 25
