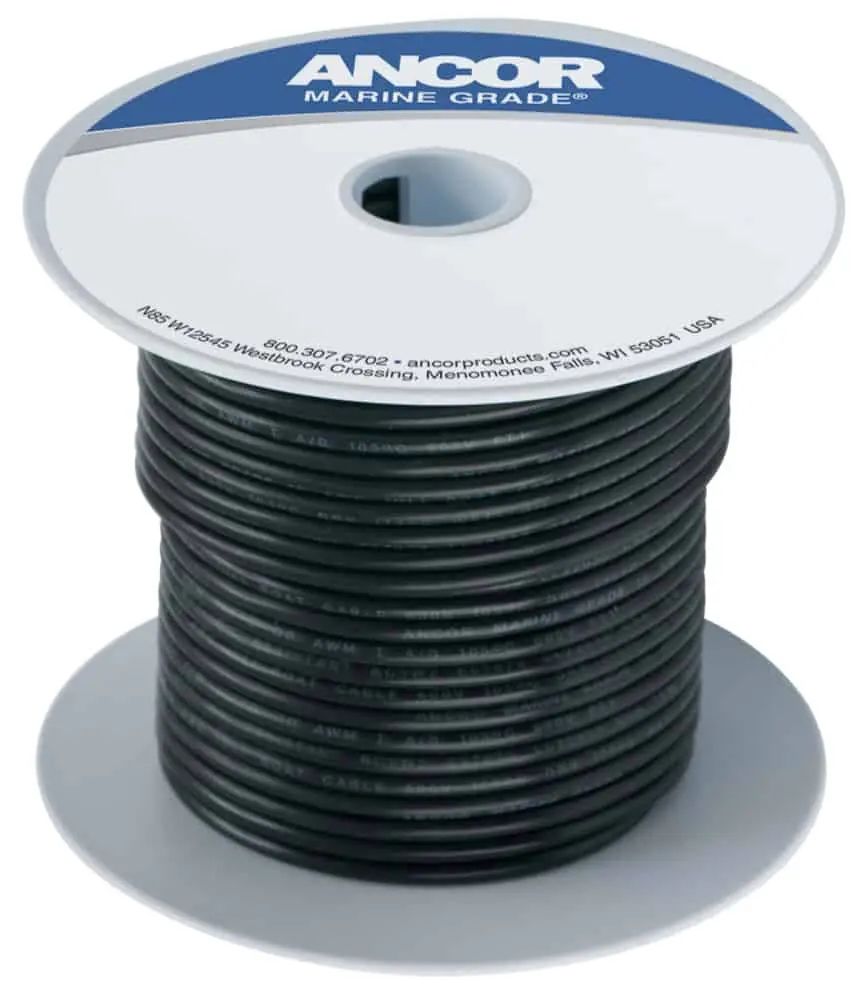

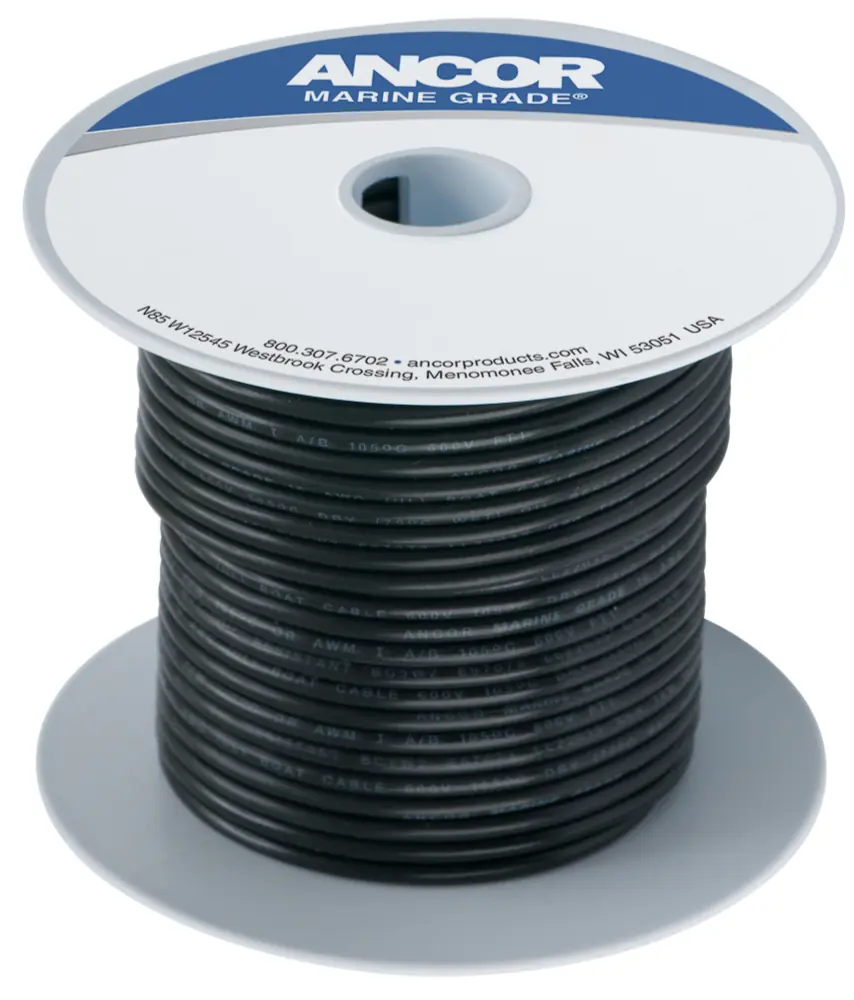

Ancor Marine Grade Tinned Cable
Ancor marine grade tinned cable exceeds UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards.
Constructed with premium vinyl insulation - rated at 600 volts, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation.
Highest quality ultra flexible (Type 3) tinned copper stranding - provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.
Sold by the metre.
Specifications:
| US Size AWG |
Equivalent Metric |
Outside Diameter Ø mm |
ABYC Recommended Max. Amps | |
| Inside Engine Room | Outside Engine Room | |||
| 16 | 1 mm² | 3.2 | 21 | 25 |
| 14 | 2 mm² | 3.6 | 30 | 35 |
| 12 | 3 mm² | 4.0 | 38 | 45 |
| 10 | 5 mm² | 5.6 | 51 | 60 |
| 8 | 8 mm² | 7.9 | 80 | 68 |
| 6 | 13 mm² | 8.7 | 120 | 102 |
| 4 | 21 mm² | 10.3 | 160 | 136 |
Cable Sizing Recommendation:
Use 3% voltage drop for any “critical application” affecting the safety of the vessel or its passengers:
- bilge pumps, navigation lights, electronics, switch panels etc....
Use 10% voltage drop for any “non-critical” applications:
- windlass, cabin lights, etc...
Length is the total distance from the +ve power source to the equipment and back to the -ve power source.
| Code | Ancor Cable Color | Ancor Cable Size | Availability | Price | |
|---|---|---|---|---|---|
|
ANCOR 1020 16 AWG BLACK
|
In stock
|
€1.09 (inc. VAT)
€0.90 (ex. VAT) |
||
|
ANCOR 1028 16 AWG RED
|
In stock
|
€0.99 (inc. VAT)
€0.82 (ex. VAT) |
||
|
ANCOR 1029 16 AWG BLUE
|
In stock
|
€1.19 (inc. VAT)
€0.98 (ex. VAT) |
||
|
ANCOR 1030 16 AWG YELLOW
|
10 days
|
€1.19 (inc. VAT)
€0.98 (ex. VAT) |
||
|
ANCOR 1040 14 AWG BLACK
|
In stock
|
€1.59 (inc. VAT)
€1.31 (ex. VAT) |
||
|
ANCOR 1048 14 AWG RED
|
In stock
|
€1.59 (inc. VAT)
€1.31 (ex. VAT) |
||
|
ANCOR 1041 14 AWG BLUE
|
In stock
|
€1.79 (inc. VAT)
€1.48 (ex. VAT) |
||
|
ANCOR 1050 14 AWG YELLOW
|
In stock
|
€1.59 (inc. VAT)
€1.31 (ex. VAT) |
||
|
|
ANCOR 1060 12 AWG BLACK
|
In stock
|
€2.49 (inc. VAT)
€2.06 (ex. VAT) |
||
|
ANCOR 1068 12 AWG RED
|
In stock
|
€2.49 (inc. VAT)
€2.06 (ex. VAT) |
||
|
ANCOR 1070 12 AWG YELLOW
|
10 days
|
€2.09 (inc. VAT)
€1.73 (ex. VAT) |
||
|
|
ANCOR 1080 10 AWG BLACK
|
In stock
|
€3.79 (inc. VAT)
€3.13 (ex. VAT) |
||
|
ANCOR 1088 10 AWG RED
|
In stock
|
€3.79 (inc. VAT)
€3.13 (ex. VAT) |
||
|
ANCOR 1090 10 AWG YELLOW
|
In stock
|
€3.19 (inc. VAT)
€2.64 (ex. VAT) |
||
|
ANCOR 1110 8 AWG BLACK
|
In stock
|
€6.29 (inc. VAT)
€5.20 (ex. VAT) |
||
|
ANCOR 1115 8 AWG RED
|
In stock
|
€5.09 (inc. VAT)
€4.21 (ex. VAT) |
||
|
ANCOR 1120 6 AWG BLACK
|
In stock
|
€9.09 (inc. VAT)
€7.51 (ex. VAT) |
||
|
ANCOR 1125 6 AWG RED
|
In stock
|
€9.09 (inc. VAT)
€7.51 (ex. VAT) |
||
|
|
ANCOR 1130 4 AWG BLACK
|
In stock
|
€12.79 (inc. VAT)
€10.57 (ex. VAT) |
||
|
ANCOR 1135 4 AWG RED
|
In stock
|
€12.79 (inc. VAT)
€10.57 (ex. VAT) |
