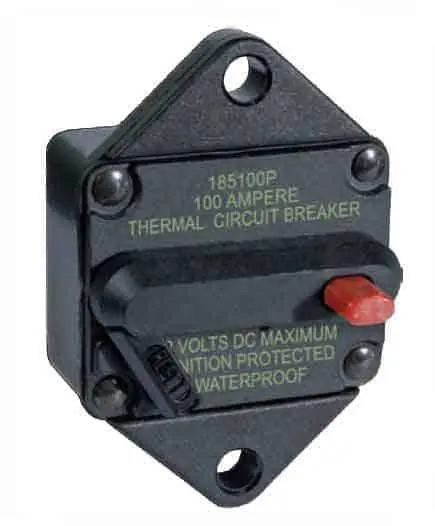

Blue Sea Systems 185-Series Panel Mount Circuit Breaker
Shipping Costs:

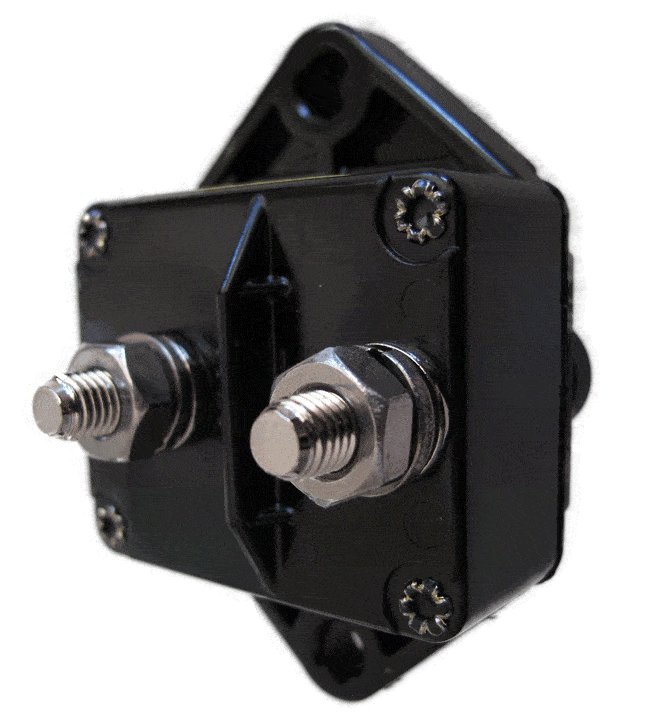

High amperage thermal circuit breakers from Blue Sea Systems. Trip Free - designed to trip even if the reset lever is held in the on position. Self trimming case with recessed holes for a simple and clean installation. Large clearance around the terminal studs for large gauge wire lugs.
- Ignition protected -(meets SAE J1171 external ignition protection requirements) Safe for installation aboard gasoline powered boats
- Weather Resistant
- Combines switching and circuit breaker function into one unit
- "Trip Free" - cannot be held closed after trip
Specifications
| Interrupting Capacity Iic |
3000 Amps @ 42 volts DC |
| Maximum Operating Voltage Vmxo | 42 Volts DC |
| Minimum Operating Temperature Tmno | -25°C |
| Maximum Operating Temperature Tmxo | +82°C |
| Type | Thermally Responsive Bi-metal |
| Class | Type III Switchable/Manual Reset - Trip Free |
| Terminal Stud | 1/4" - 28 |
| Terminal Stud Torque | 50 in-lb |
| Mounting Hole | 1/4" M6 |
| Weight | 0.25lb / 0.11kg |
| Product Code | Model | Availability | Price | |
|---|---|---|---|---|
|
BLUE SEA SYSTEMS 7008
|
Discontinued Product
|
€49.95 (inc. VAT)
€41.28 (ex. VAT) |
|
|
|
BLUE SEA SYSTEMS 7014
|
Discontinued Product
|
€49.95 (inc. VAT)
€41.28 (ex. VAT) |
