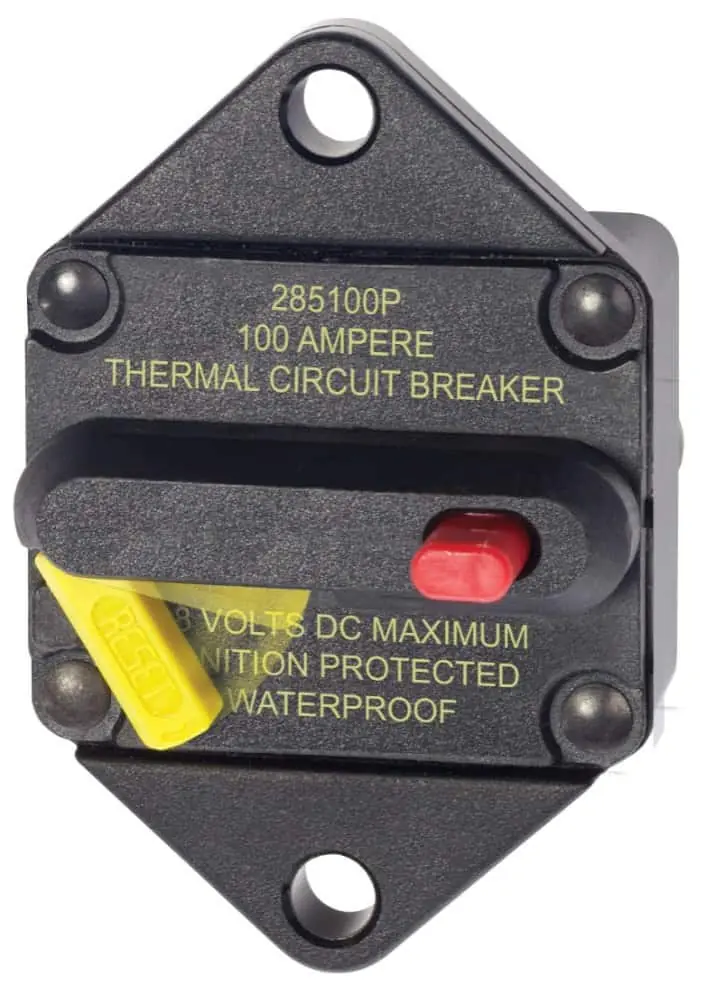

Blue Sea Systems 285-Series Panel Mount Circuit Breaker
Medium duty thermal circuit protection for 25 to 150 Amps. The 285-Series are a drop in replacement for the 185-series with the exact same dimensions for easy replacement. Trip Free - designed to trip even if the reset lever is held in the on position. Self trimming case with recessed holes for a simple and clean installation. Large clearance around the terminal studs for large gauge wire lugs.
- Drop in replacement for the 185-Series
- Ignition protected - (meets SAE J1171 external ignition protection requirements) Safe for installation aboard gasoline powered boats
- Weather Resistant
- Combines switching and circuit breaker function into one unit
- "Trip Free" - cannot be held closed after trip
Specifications:
|
285 - Series Thermal Circuit Breaker |
|
| Interrupting Capacity Iic |
3000 Amps @ 48 volts DC |
| Maximum Operating Voltage Vmxo | 48 Volts DC |
| Minimum Operating Temperature Tmno | -40°C |
| Maximum Operating Temperature Tmxo | +85°C |
| Type | Thermally Responsive Bi-metal |
| Class | Type III Switchable/Manual Reset - Trip Free |
| Terminal Stud | 1/4" - 28 |
| Terminal Stud Torque | 50 in-lb (5.65Nm) |
| Mounting Hole | 1/4" M6 |
| Weight | 0.50lb / 0.23kg |
