Blue Sea Systems MaxiBus 250 A BusBar
Tin Plated 250 Ampere copper busbar, used to consolidate multiple wires or feed multiple circuits.

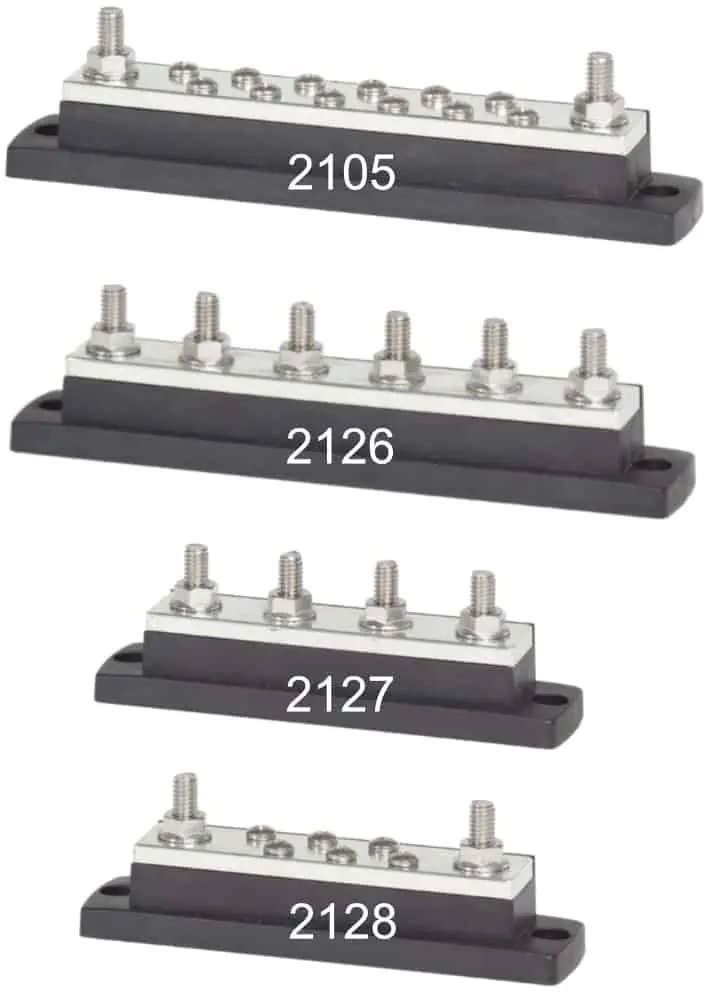

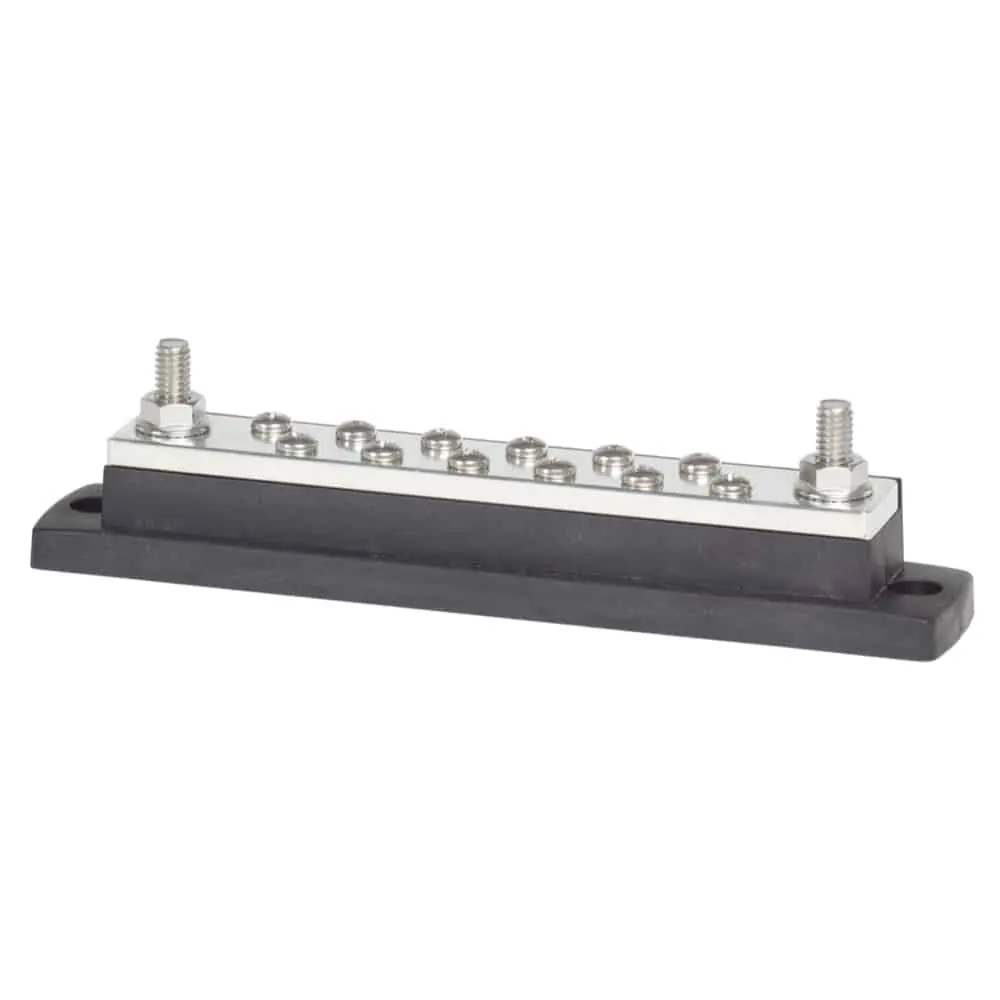

Available in four versions, the 2105 with two 5/16" studs and twelve #10-24 screws, the 2126 with six 5/16" studs, the 2127 with four 5/16" studs and the 2128 with two 5/16" studs and six #10-24 screws.
- Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
- Raised bus provides easy access to multiple wires on a single stud
- UL 94-V0 rated base material resists high heat
- Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
- Stud design provides direct terminal to bus contact for low resistant connection
- Great for limited space applications in electronics, cabinets and under dashboards
- Tin-Plated copper bus won't corrode and stays conductive
Specifications:
| Model | 2105 | 2126 | 2127 | 2128 |
| Max. Voltage | 300V AC / 48V DC | |||

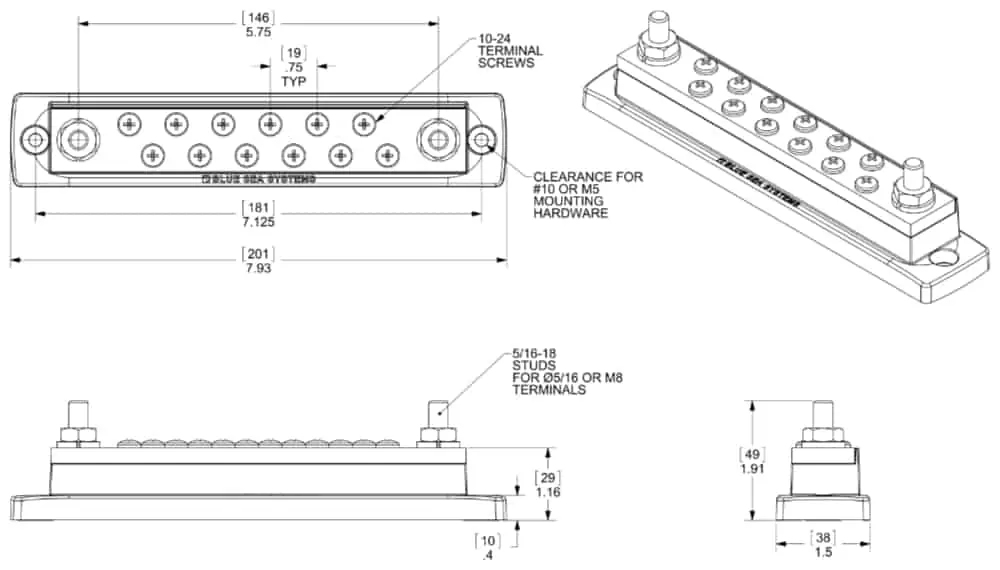

| N° of studs x Size | 2 x 5/16"-18 Stud 12 x #10-24 Screw |
6 x 5/16"-18 Stud | 4 x 5/16"-18 Stud | 2 x 5/16"-18 Stud 6 x #10-24 Screw |
| Continuous Rating Ic | 250A | |||
| Base Material | UL94-V0 Glass Reinforced Plastic | |||
| Bus Material | Tin Plated Copper CDA 110/UNS11000 | |||
| Mounting Holes | #10 (∼M5) Screws | |||
| Recommended Stud Torque | 132 in-lb (14.91 N·m) | |||
| Weight | 0.36 kg | |||
