Blue Sea Systems PowerBar 1000A

Price:201.61 ex. VAT
Price: 243.95 (inc. VAT)
BLUE SEA SYSTEMS 1990
Last one in stock
7 days (approx.)
+
Shipping Costs:

Tin plated 1000 Ampere copper busbar, used to consolidate large and small conductors in complex wiring systems. Ideal as a common ground point or for high amperage cables such as battery, bow thruster, windlass and electric winches.

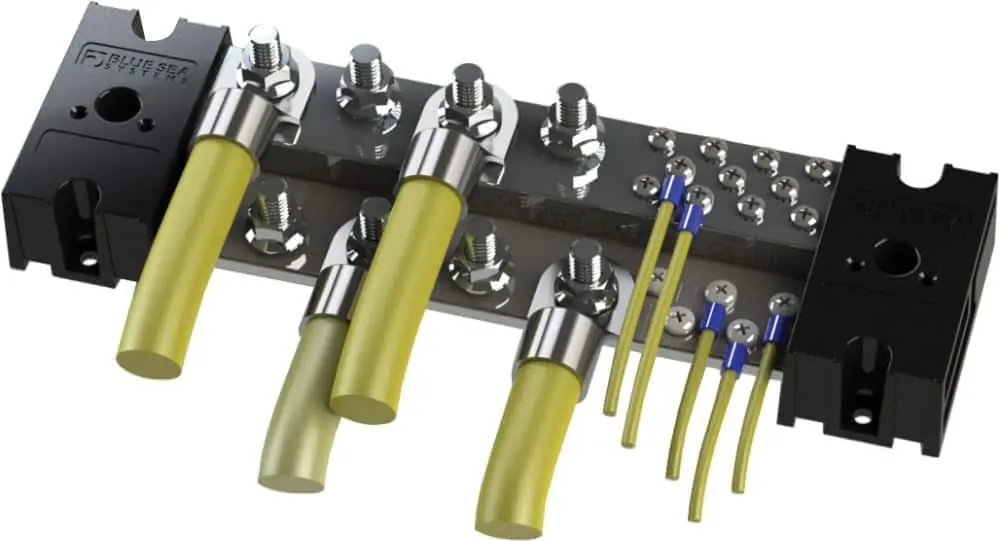

The unique stepped, raised bus design and stud spacing of the PowerBar allows multiple connections without interfering with the cables attached to the next stud. The step height is the same as comon fuse blocks which allows direct connection without connecting wires.

  • 1,000 Amp busbar for large complex wiring systems
  • Tin plated pure electrical copper for maximum conductivity
  • Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars
  • Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
  • One-piece serrated flange nuts ensure correct and secure connections
  • Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
  • Busbar may be cut to a shorter length to accommodate constricted spaces

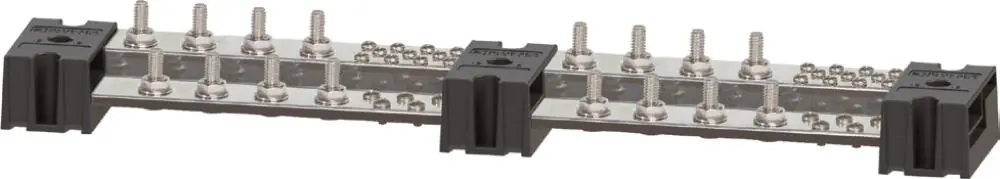

  • Bi-directional busbar end caps allow the grouping of additional busbars

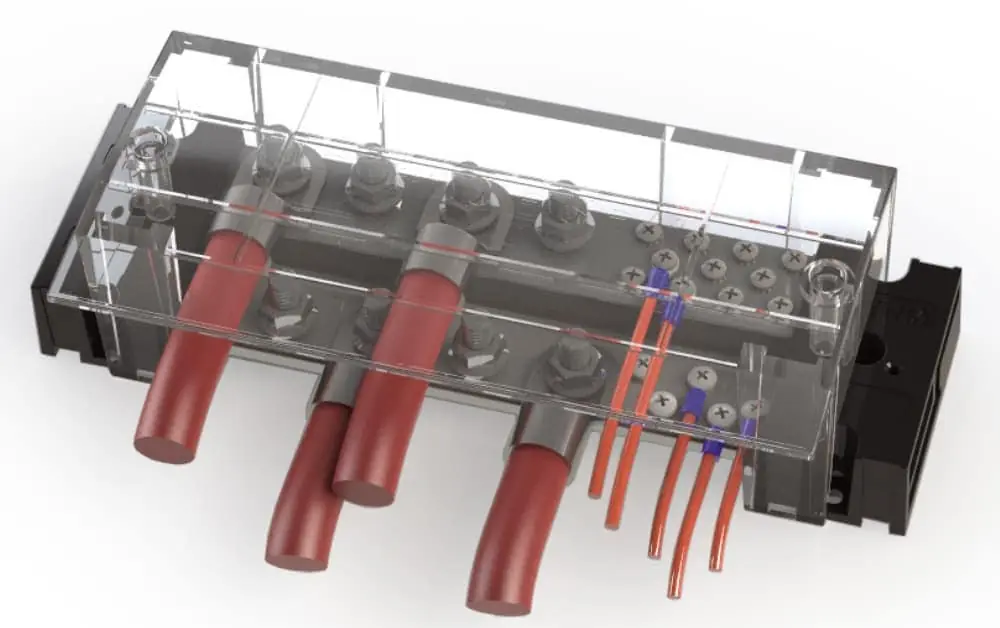

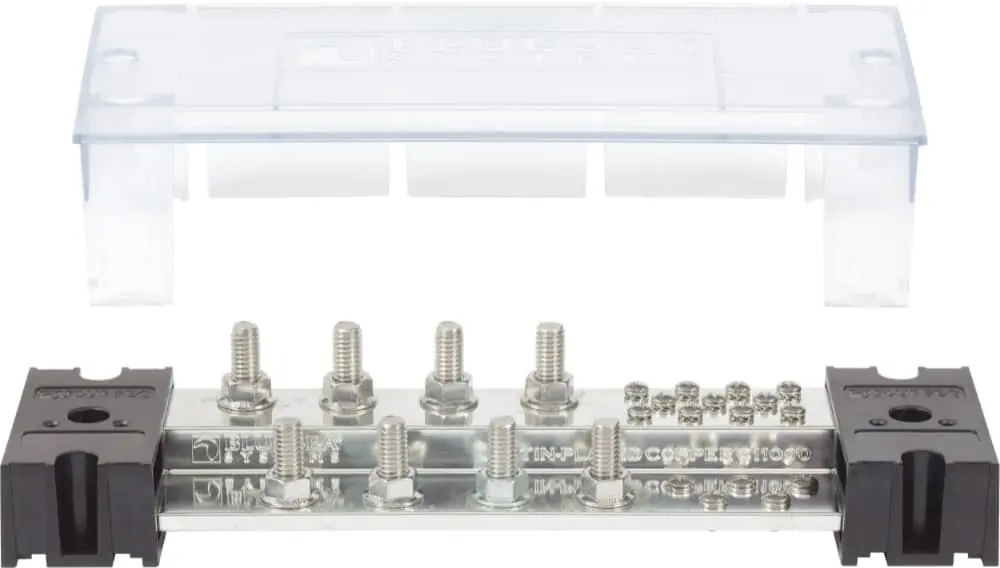

  • Snap on insulating cover meets ABYC and USCG requirements and includes label recess


Available in two versions, with 3/8" studs or 5/16" studs.

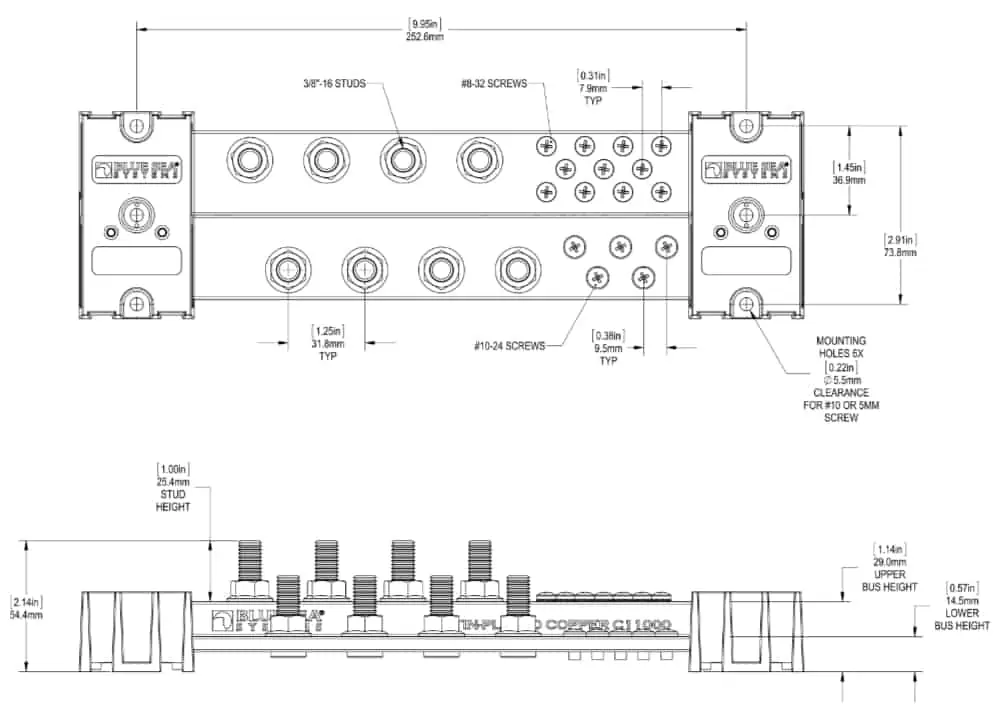

See the Downloads Tab for detailed dimensional drawings.


Specifications:

Model 1990 1991 1992 1993
Max. Voltage 150V AC / 48V DC
N° of Studs x Size 8 × 3/8"-16 12 × 3/8"-16 8 × 5/16"-18 12 × 5/16"-18
N° of Screws x Size 5 x #10-32 + 11 x #8-32
Continuous Rating Ic 1000A
Base Material UL94-V0 Glass Reinforced Plastic
Bus Material Tin Plated Copper CDA 110/UNS11000
Mounting Holes #10 (∼ M5) Screws
Recommended Stud Torque 140 in-lb (15.82 Nm)
Weight 2.8 kg
  Code PowerBar 1000A Availability Price
Blue Sea Systems PowerBar 1000A - bluemarinestore.com
BLUE SEA SYSTEMS 1990
1990 - 8 × 3/8"
In stock
243.95 (inc. VAT)
201.61 (ex. VAT)
Blue Sea Systems PowerBar 1000A - bluemarinestore.com
BLUE SEA SYSTEMS 1991
1991 - 12 × 3/8"
7 days
253.95 (inc. VAT)
209.88 (ex. VAT)
Blue Sea Systems PowerBar 1000A - bluemarinestore.com
BLUE SEA SYSTEMS 1992
1992 - 8 × 5/16"
In stock
243.95 (inc. VAT)
201.61 (ex. VAT)
Blue Sea Systems PowerBar 1000A - bluemarinestore.com
BLUE SEA SYSTEMS 1993
1993 - 12 × 5/16"
7 days
253.95 (inc. VAT)
209.88 (ex. VAT)

Blue Sea Systems 1990 Dimensions (497 Kb) - Download

Blue Sea Systems 1991 Dimensions (542 Kb) - Download

Blue Sea Systems 1992 Dimensions (542 Kb) - Download

Blue Sea Systems 1993 Dimensions (531 Kb) - Download
