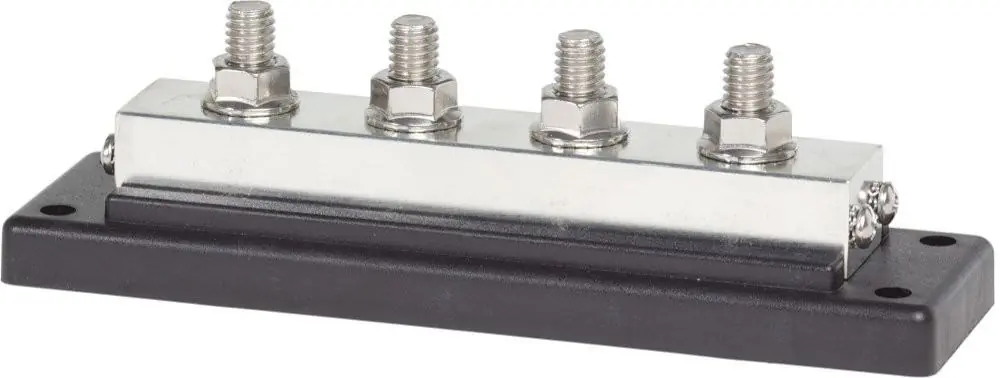

Blue Sea Systems PowerBar 600A

Price:133.84 ex. VAT
Price: 161.95 (inc. VAT)
BLUE SEA SYSTEMS 2104
Preorder
10 days (approx.)
+
Shipping Costs:

Tin Plated 600 Ampere copper busbar, used to consolidate high amperage cables such as battery, bow thruster, windlass and electric winches. Also ideal for a common ground point.

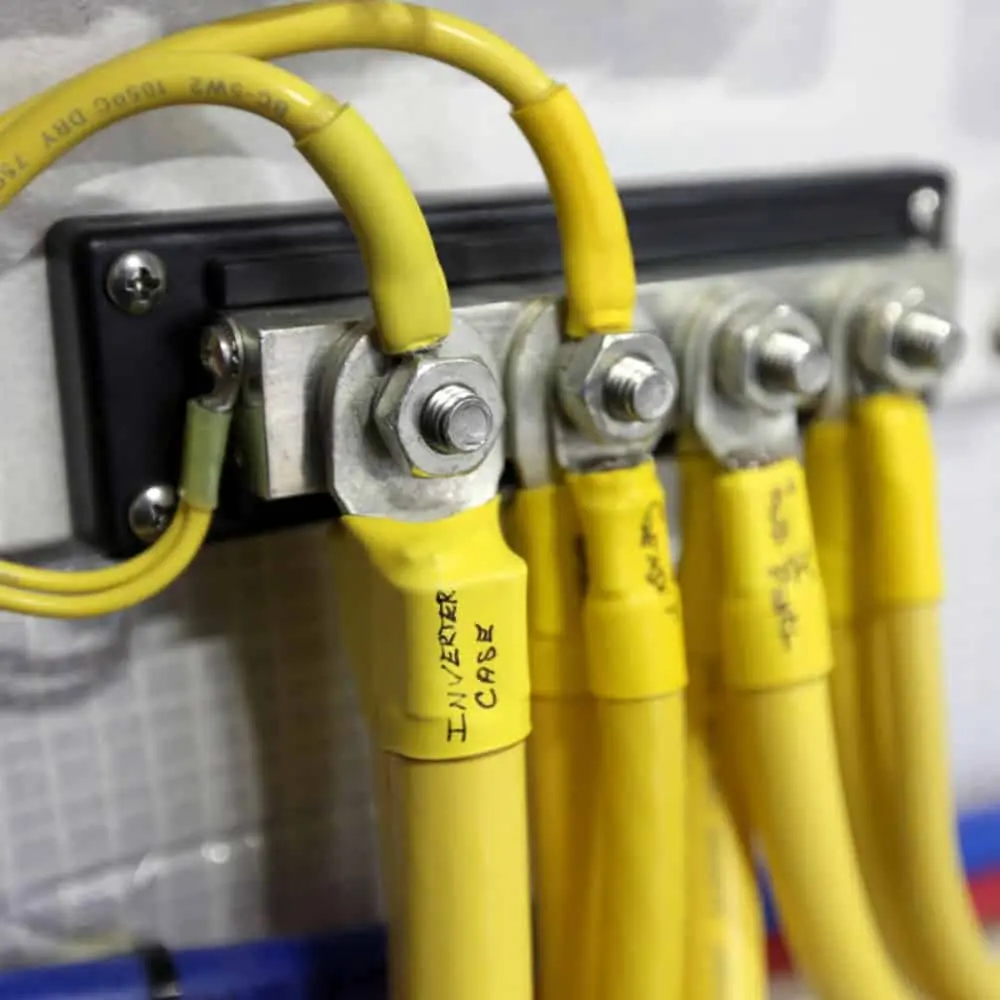

The unique raised bus design of the PowerBar allows attachment of the first cable terminal on the stud in an inverted position and the second in the upright position, allowing each stud to easily accommodate four terminals without interfering with the cables attached to the next stud.

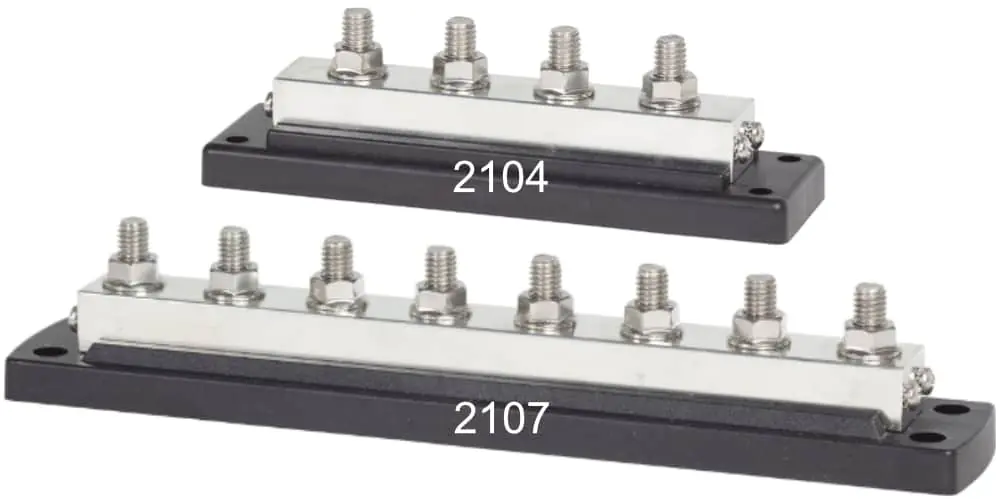

Available in four versions, the 2104 with four 3/8" studs and the 2107 with eight 3/8" studs. Both models feature two #8-32 (∼ M4) screws on each end of the busbar.

  • Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
  • Raised bus provides easy access to multiple wires on a single stud
  • UL 94-V0 rated base material resists high heat
  • Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
  • Stud design provides direct terminal to bus contact for low resistant connection
  • Great for limited space applications in electronics, cabinets and under dashboards
  • Tin-Plated copper bus won't corrode and stays conductive


Specifications:

Model 2104 2107
Max. Voltage 300V AC / 48V DC
N° of studs x Size 4 x 3/8"-16 Stud 8 x 3/8"-16 Stud
Continuous Rating Ic 545A AC / 600A DC
Base Material UL94-V0 Glass Reinforced Plastic
Bus Material Tin Plated Copper CDA 110/UNS11000
Mounting Holes #8 (∼ M4) Screws
Recommended Stud Torque 140 in-lb (15.82 Nm)
Weight 0.79 kg
  Code PowerBar 600A Availability Price
Blue Sea Systems PowerBar 600A - bluemarinestore.com
BLUE SEA SYSTEMS 2104
2104
10 days
161.95 (inc. VAT)
133.84 (ex. VAT)
Blue Sea Systems PowerBar 600A - bluemarinestore.com
BLUE SEA SYSTEMS 2107
2107
In stock
230.95 (inc. VAT)
190.87 (ex. VAT)

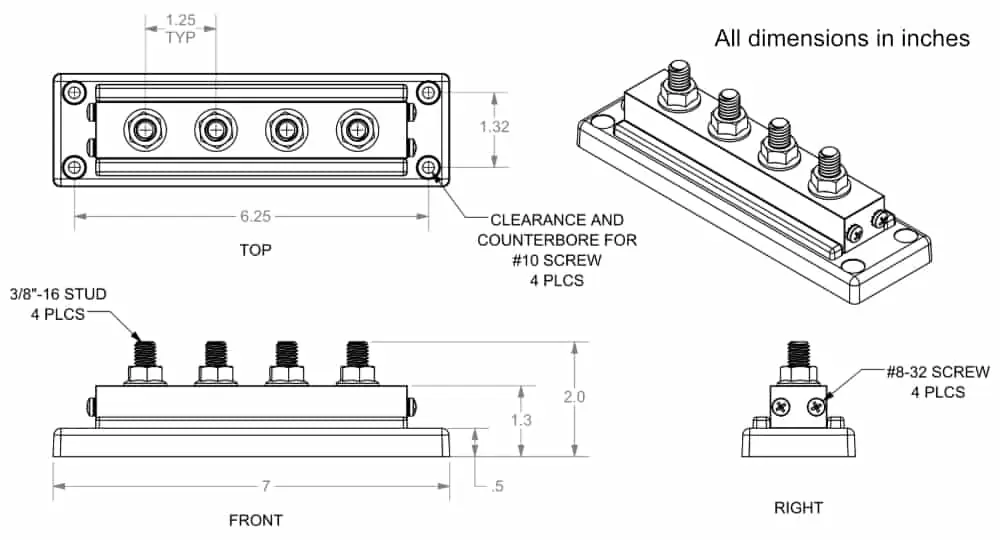

Blue Sea Systems 2104 Dimensions (109 Kb) - Download
