Blue Sea Systems Water-Resistant IP66 Circuit Breaker Panel
Competitively priced combined switch and circuit breaker panel with IP66 water resistant rating for use both above and below decks.

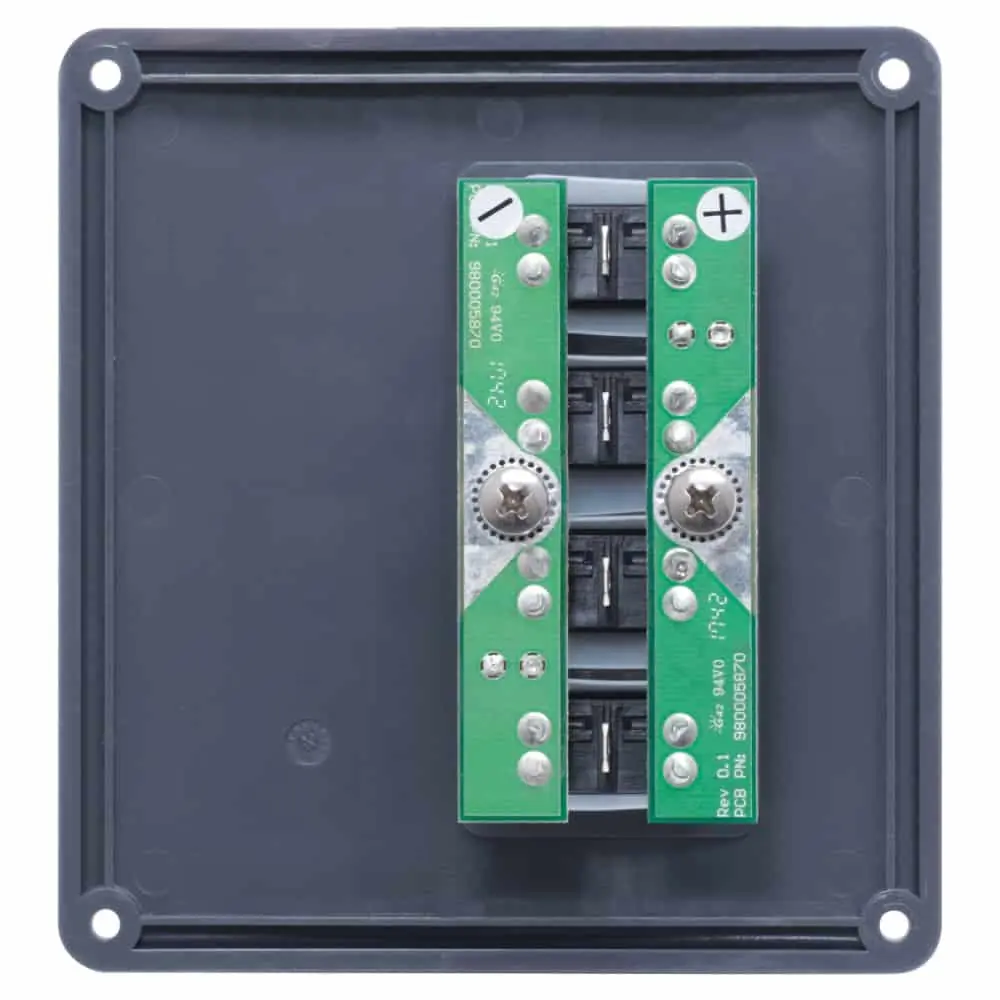

Blue Sea Systems Water-Resistant switch panels include Carling Technologies™ 15A circuit breakers with illuminated ON indication. The circuit breaker switches feature silicon boots and gaskets to protect against water ingress and are rated to IP66. The low-profile grey polycarbonate/ABS panel is UV-stabilized and flame retardant. The panel features a common BUS as well as standard push on 1/4″ Male quick connect terminals for all circuits making installation quick and simple with minimum wiring behind the panel.
Includes a set of 15 Blue Sea Systems square format circuit labels. Additional 50 label packs also available.
See the "Downloads" tab for detailed dimension information.

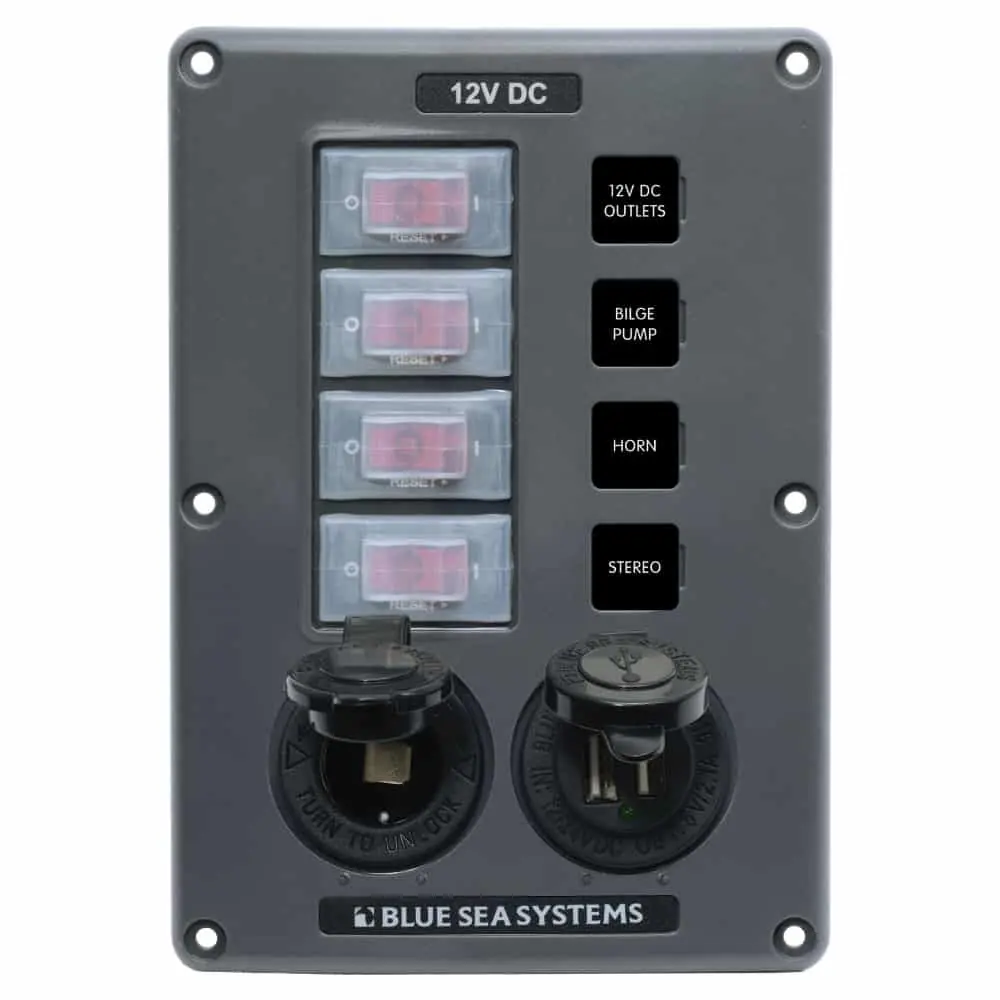

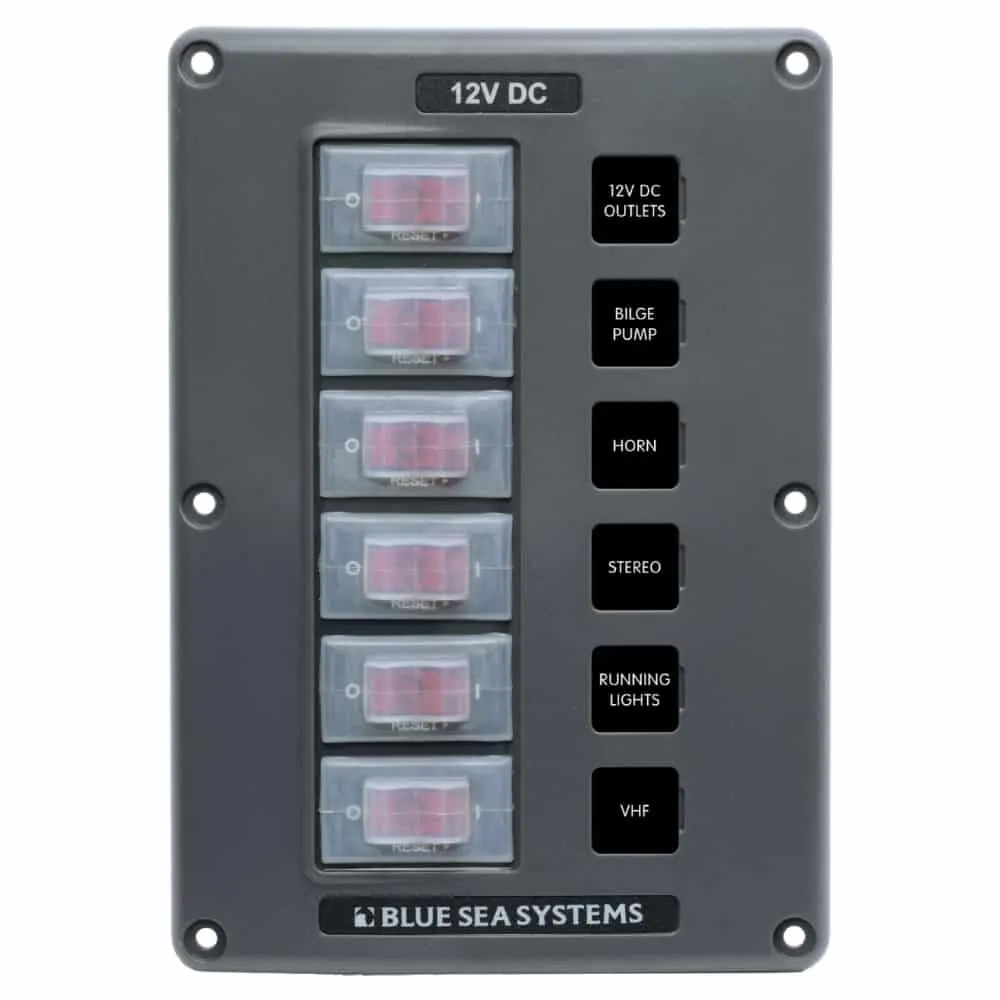

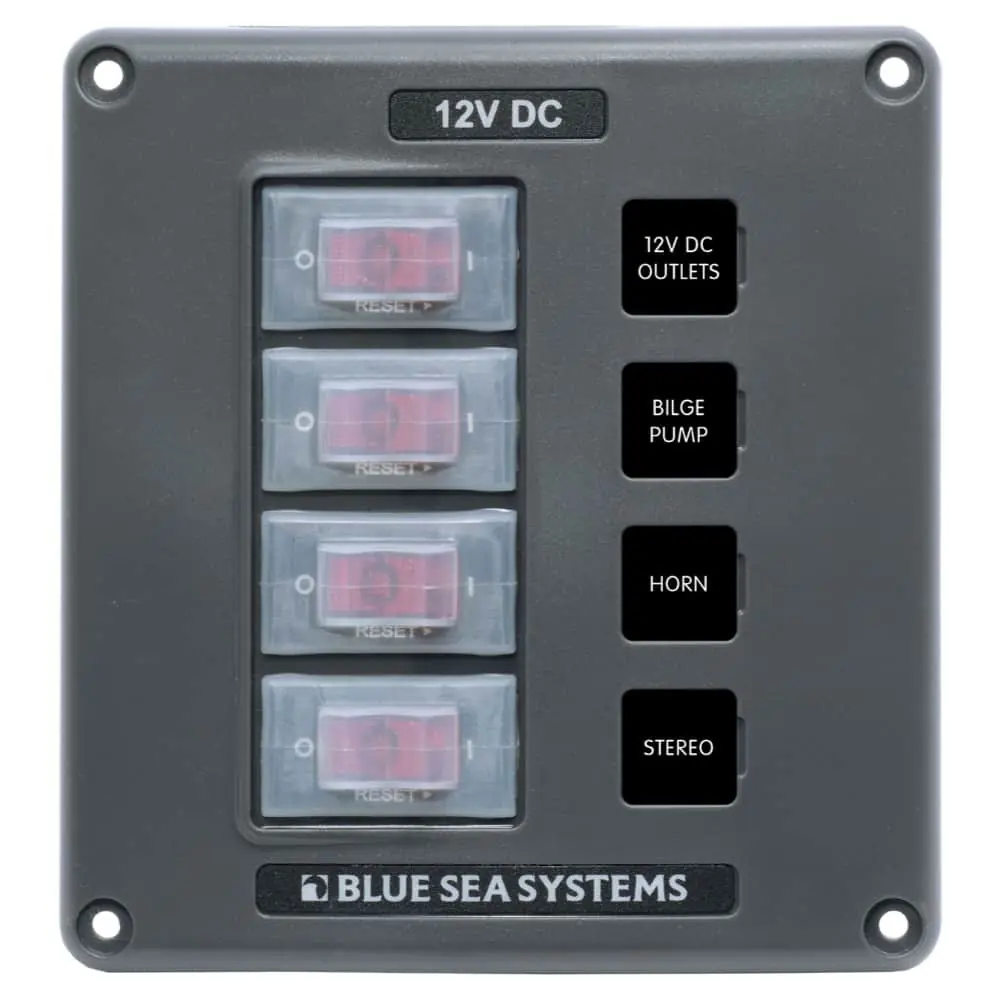

Available in three version with either 4 circuits, 6 circuits or 4 circuits and 2 DC sockets.
Features:
- Voltage: 12 V DC
- Panel Cumulative Rating: 45 A
- Switch/Circuit Breaker Rating: 15 A
- Circuit terminal type: 1/4″ Male quick connect
- Bus Connection: M5 (#10)
