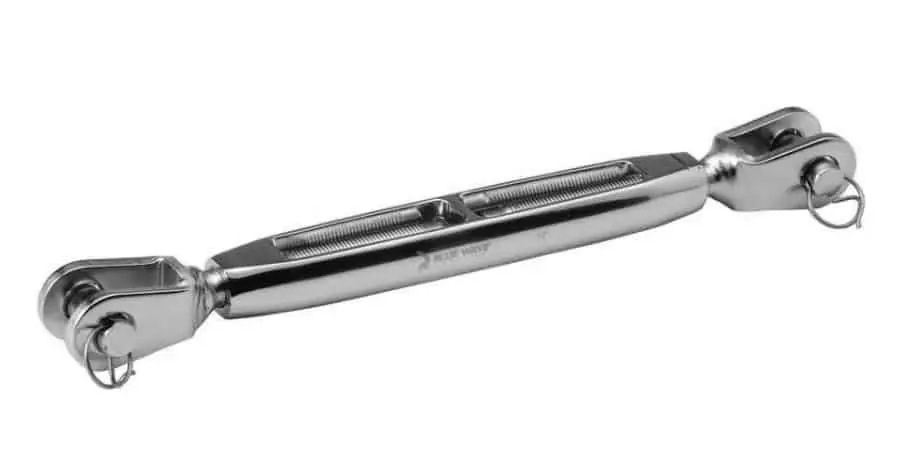

Marine open body UNF fork-fork chromed bronze and stainless steel AISI rigging screw (turnbuckle). The sleek, open chromed bronze body combined with stainless steel AISI screws prevents the threads from seizing up (gauling), a common problem with higher loads on stainless only designs. The open body allows for easier adjustment and inspection. They feature laser engraved thread size, Blue Wave logo, and side marking of the left thread.

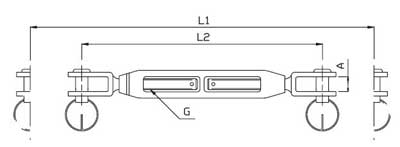

Dimensions in mm
Code | Gauge UNF | For wire size | L1 MAX | L2 MIN | A | Pin Size | Breakload | Weight kg |
130006A | 1/4" | 3mm/4mm | 205 | 143 | 9.5 | 6.35 | 1300kg | 0.120 |
130008A | 5/16" | 4mm | 244 | 168 | 11 | 8.0 | 2200kg | 0.160 |
130010A | 3/8" | 5mm | 299 | 197 | 12 | 9.5 | 3400kg | 0.250 |
130011A | 7/16" | 6mm/7mm | 312 | 222 | 12 | 11.0 | 4600kg | 0.350 |
130012A | 1/2" | 7mm | 358 | 248 | 14 | 12.7 | 6100kg |
0.635 |
130016AX | 5/8" | 8mm | 450 | 312 | 18 | 16.0 | 9900kg | 1.210 |
130020A | 3/4" | 10mm/12mm | 562 | 392 | 24 | 19.0 | 14400kg | 2.180 |
Code | Model | Availability | Price | |
---|---|---|---|---|
BLUE WAVE 130010A
|
In stock
|
€53.95 (inc. VAT)
€44.59 (ex. VAT) |
||
BLUE WAVE 130006A
|
3 days
|
€37.29 (inc. VAT)
€30.82 (ex. VAT) |
||
BLUE WAVE 130008A
|
3 days
|
€46.79 (inc. VAT)
€38.67 (ex. VAT) |
||
BLUE WAVE 130011A
|
In stock
|
€65.95 (inc. VAT)
€54.50 (ex. VAT) |
||
BLUE WAVE 130012A
|
In stock
|
€71.95 (inc. VAT)
€59.46 (ex. VAT) |
||
BLUE WAVE 130016AX
|
3 days
|
€141.95 (inc. VAT)
€117.31 (ex. VAT) |
||
BLUE WAVE 130020A
|
10 days
|
€278.95 (inc. VAT)
€230.54 (ex. VAT) |
