Blue Wave Open Body Rigging Screws UNF Toggle-Fork

Price:52.85 ex. VAT
Price: 63.95 (inc. VAT)
BLUE WAVE 330010A
Preorder
3 days (approx.)
+
Shipping Costs:

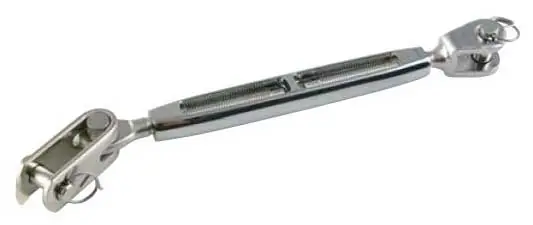

Marine open body UNF toggle-fork chromed bronze and stainless steel AISI rigging screw (turnbuckle). The sleek, open chromed bronze body combined with stainless steel AISI screws prevents the threads from seizing up (gauling), a common problem with higher loads on stainless only designs. The open body allows for easier adjustment and inspection. The toggle normally fitted to the chain plate allows movement both fore and aft as well as side to side completely avoiding the chance of work hardening. They feature laser engraved thread size, Blue Wave logo, and side marking of the left thread.

Blue Wave Chromed Bronze Open Body Rigging Screw UNF Toggle-Fork

Dimensions in mm

Code Gauge UNF For wire size L1 MAX L2 MIN A1 A2 Pin Size Breakload Weight kg/
130006A 1/4" 3mm/4mm 225 163 8 10 6.35 1300kg 0.128
130008A 5/16" 4mm 268 192 10 11 8.0 2220kg 0.205
130010A 3/8" 5mm 313 229 12 12 9.5 3400kg 0.325
130011A 7/16" 6mm/7mm 350 260 15 12 11.0 4600kg 0.540
130012A 1/2" 7mm 382 276 18 14 12.7 6100kg 0.800
130016AX 5/8" 8mm 491 359 20 18 16.0 9900kg 1.370
130020A 3/4" 10mm/12mm 586 426 24 24 19.0 14400kg 2.280
  Product Code Model Availability Price
Blue Wave Open Body Rigging Screws UNF Toggle-Fork - bluemarinestore.com
BLUE WAVE 330010A
3/8 - 5 mm
3 days
63.95 (inc. VAT)
52.85 (ex. VAT)
Blue Wave Open Body Rigging Screws UNF Toggle-Fork - bluemarinestore.com
BLUE WAVE 330011AX
7/16 - 6 mm
3 days
88.95 (inc. VAT)
73.51 (ex. VAT)
Blue Wave Open Body Rigging Screws UNF Toggle-Fork - bluemarinestore.com
BLUE WAVE 330012AX
1/2 - 7 mm
3 days
108.95 (inc. VAT)
90.04 (ex. VAT)
Blue Wave Open Body Rigging Screws UNF Toggle-Fork - bluemarinestore.com
BLUE WAVE 330016AX
5/8 - 8 mm
3 days
179.95 (inc. VAT)
148.72 (ex. VAT)
Blue Wave Open Body Rigging Screws UNF Toggle-Fork - bluemarinestore.com
BLUE WAVE 330020AX
3/4 - 10mm/12 mm
7 days
369.00 (inc. VAT)
304.96 (ex. VAT)
Blue Wave Open Body Rigging Screws UNF Toggle-Fork - bluemarinestore.com
BLUE WAVE 330008A
5/16 - 4 mm
3 days
61.95 (inc. VAT)
51.20 (ex. VAT)
