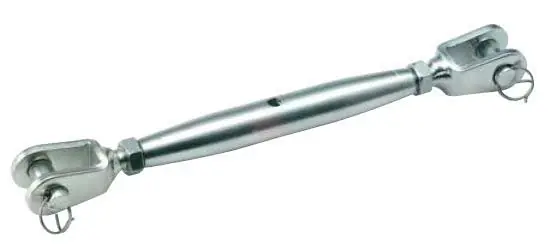

Blue Wave Stainless Metric Rigging Screw Fork-Fork
Marine fork-fork stainless steel AISI 316 metric rigging screw (turnbuckle). Very competitively priced metric rigging screw with the all the quality and features we expect from Blue Wave, laser engraved thread size, Blue Wave logo, and side marking of the left thread.

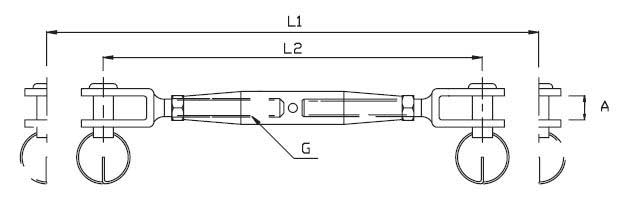

Dimensions in mm and metric thread
| Code | Gauge Metric | For wire size | L1 MAX | L2 MIN | A | Pin Size | Breakload | Weight kg |
| 120005 | 5mm | 2.5mm | 180 | 126 | 7.5 | 5.0 | 800kg | 0.051 |
| 120006 | 6mm | 3mm | 200 | 138 | 7.5 | 5.0 | 1000kg | 0.090 |
| 120006X | 6mm | 3mm/4mm | 202 | 140 | 9.5 | 6.0 | 1200kg | 0.140 |
| 120008 | 4mm | 4mm | 234 | 158 | 9.5 | 6.0 | 1600kg | 0.140 |
| 120008X | 8mm | 4mm/5mm | 240 | 166 | 11 | 8.0 | 2200kg | 0.150 |
| 120010 | 10mm | 5mm | 272 | 188 | 11 | 8.0 | 32000kg | 0.240 |
| 120010X | 10mm | 5mm | 280 | 196 | 12 | 9.5 | 3500kg | 0.260 |
| 120012 | 12mm | 6mm | 350 | 244 | 14 | 12 | 5100kg | 0.525 |
| 120014X | 14mm | 7mm/8mm | 405 | 295 | 18 | 14 | 6900kg | 0.845 |
| 120016X | 16mm | 8mm/10mm | 446 | 313 | 18 | 16 | 9400kg | 1.000 |
| 120020 | 20mm | 10mm/12mm | 550 | 390 | 24 | 19 | 14000kg | 1.970 |
| Code | Model | Thread Size | Availability | Price | |
|---|---|---|---|---|---|
|
BLUE WAVE 120005
|
3 days
|
€21.49 (inc. VAT)
€17.76 (ex. VAT) |
||
|
|
BLUE WAVE 120006
|
3 days
|
€25.10 (inc. VAT)
€20.74 (ex. VAT) |
||
|
|
BLUE WAVE 120006X
|
3 days
|
€26.18 (inc. VAT)
€21.64 (ex. VAT) |
||
|
|
BLUE WAVE 120008
|
3 days
|
€33.80 (inc. VAT)
€27.93 (ex. VAT) |
||
|
|
BLUE WAVE 120008X
|
In stock
|
€34.49 (inc. VAT)
€28.50 (ex. VAT) |
||
|
|
BLUE WAVE 120010
|
3 days
|
€42.29 (inc. VAT)
€34.95 (ex. VAT) |
||
|
|
BLUE WAVE 120010X
|
3 days
|
€45.29 (inc. VAT)
€37.43 (ex. VAT) |
||
|
|
BLUE WAVE 120012
|
3 days
|
€63.95 (inc. VAT)
€52.85 (ex. VAT) |
||
|
|
BLUE WAVE 120014X
|
3 days
|
€95.95 (inc. VAT)
€79.30 (ex. VAT) |
||
|
|
BLUE WAVE 120016X
|
3 days
|
€119.95 (inc. VAT)
€99.13 (ex. VAT) |
||
|
|
BLUE WAVE 120020
|
7 days
|
€236.95 (inc. VAT)
€195.83 (ex. VAT) |
