Blue Wave Stainless Steel Eye Terminal

Name: Blue Wave Stainless Steel Eye Terminal
Brand: Blue Wave
SKU: BLUE WAVE 190005

Blue Wave Stainless Steel Eye Terminal - bluemarinestore.com

List price:€8.17 ex. VAT Price:€7.60 ex. VAT

Price: €9.20 (inc. VAT)

You save: €0.57 (7%)

Save 7%

Model:

Product Code: BLUE WAVE 190005

Stock: Preorder

Availability: 3 days (approx.)

Quantity:

+ −

Shipping Costs:

Check Your location

Free Shipping Promotion to some locations....see details.

Description
Product Variations
Parts & Accessories

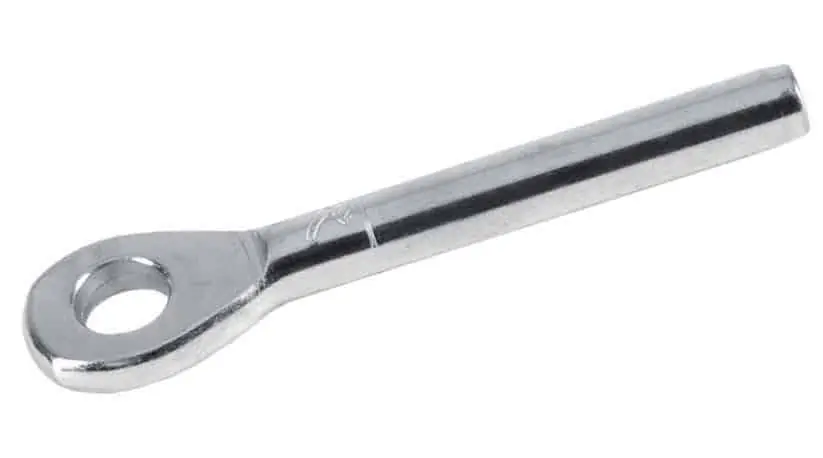

Highly polished AISI 316 stainless steel metric eye terminal. Guaranteed quality from Blue Wave.

For easy and cost effective rigging replacement we recommend ordering the required cable length plus 1 metre (approx.) with a swaged terminal on the upper end (mast fitting). The lower end can then fitted with a swageless terminal allowing exact measurement and final fitting onboard.

Blue Wave Stainless Steel Eye Terminal

All Dimensions in mm

Wire	Ref.	B	D1	D2	L1	L2	T	Break Load kg	Weight g
2 mm	190002	13	5.5	5.5	49	32	3	1200	009
3 mm	190003	14	6.35	6.5	60	38	4	1300	013
4 mm	190004	17	7.5	8.5	67	45	5	1700	023
5 mm	190005	21	9.0	10.5	79	51	6	2400	039
6 mm	190006	25	12.58	13.0	94	64	8	5500	087
6 mm	190006X	28	12.58	13.2	105	64	10	5500	132
7 mm	190007	27	14.2	13.0	104	70	9	6800	115
7 mm	190007X	28	14.2	13.2	110	70	10	6800	135
8 mm	190008	30	16.0	14.5	124	83	10	8000	170
8 mm	190008X	36	16.0	16.5	141	83	12	8700	235
10 mm	190010	40	17.8	16.3	165	100	16	9700	380
10 mm	190010X	40	17.8	19.5	165	100	16	9700	380
12 mm	190012	40	20.0	19.3	156	105	15	11400	415

Product Code	Model	Availability	Price
BLUE WAVE 190003	190003 - 3 mm	7 days	€6.49 (inc. VAT) €5.36 (ex. VAT)
BLUE WAVE 190004	190004 - 4 mm	3 days	€7.39 (inc. VAT) €6.11 (ex. VAT)
BLUE WAVE 190005	190005 - 5 mm	3 days	€9.20 (inc. VAT) €7.60 (ex. VAT)
BLUE WAVE 190006	190006 - 6 mm	3 days	€15.98 (inc. VAT) €13.21 (ex. VAT)
BLUE WAVE 190007	190007 - 7 mm	3 days	€19.38 (inc. VAT) €16.02 (ex. VAT)
BLUE WAVE 190008	190008 - 8 mm	3 days	€26.49 (inc. VAT) €21.89 (ex. VAT)
BLUE WAVE 190008X	190008X - 8 mm	3 days	€27.99 (inc. VAT) €23.13 (ex. VAT)
BLUE WAVE 190010	190010 - 10 mm	3 days	€47.59 (inc. VAT) €39.33 (ex. VAT)
BLUE WAVE 190010X	190010X - 10 mm	3 days	€57.95 (inc. VAT) €47.89 (ex. VAT)
