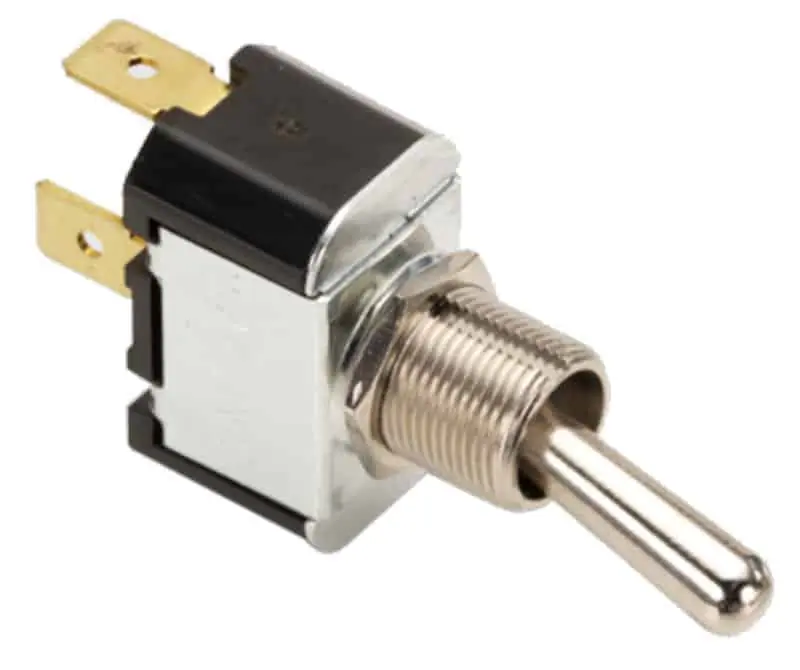

Carling Technologies Toggle Switch
General purpose high quality toggle switch rated up to 15A for DC use. Ideal for marine low voltage DC applications. Very reliable with a service life of up to 50,000 cycles. Available with multiple circuit options in both single and double pole versions.
All versions feature standard 17.44mm long metal toggle, 12.7mm diameter mounting hole and 6.35mm wide push on connection tab.
Specifications:
- Rating at 250V AC: 10A
- Rating at 125V AC: 15A
- Rating at 28V DC: 15A
- Terminal Size: 6.35mm (1⁄4'') quick connect tab
- Electrical Life: 50,000 cycles - maintained / 25,000 cycles - momentary
- Mechanical Life: 100,000 cycles
- Operating Temperature: 32°F to 185°F (0°C to 85°C)
Waterproof rubber boot available for exterior applications.
See the downloads tab for dimensions.
| Circuit | Single Pole F-Series |
Double Pole G-Series |
| On-Off | 2FA53-73 | 2GK51-73 |
| (On)-Off | 6FA53-73 | 6GK5B-73 |
| On-On | 2FB53-73 | 2GL51-73 |
| On-Off-On | 2FC53-73 | 2GM51-73 |
| On-Off-(On) | 6FC57-73 | |
| (On)-Off-(On) | 6FC53-73 | 6GM5M-73 |
Circuit options function in (brackets) denotes momentary action (hold to actuate).
| Product Code | Carling Toggle Series | Carling Circuito | Availability | Price | |
|---|---|---|---|---|---|
|
CARLING TECHNOLOGIES 2GM51-73
|
In stock
|
€11.89 (inc. VAT)
€9.83 (ex. VAT) |
||
|
CARLING TECHNOLOGIES 2FA53-73
|
In stock
|
€6.29 (inc. VAT)
€5.20 (ex. VAT) |
||
|
|
CARLING TECHNOLOGIES 2GK51-73
|
In stock
|
€9.99 (inc. VAT)
€8.26 (ex. VAT) |
||
|
|
CARLING TECHNOLOGIES 6FA53-73
|
In stock
|
€10.99 (inc. VAT)
€9.08 (ex. VAT) |
||
|
|
CARLING TECHNOLOGIES 6GK5B-73
|
In stock
|
€16.79 (inc. VAT)
€13.88 (ex. VAT) |
||
|
|
CARLING TECHNOLOGIES 2FB53-73
|
In stock
|
€7.79 (inc. VAT)
€6.44 (ex. VAT) |
||
|
|
CARLING TECHNOLOGIES 2GL51-73
|
7 days
|
€11.89 (inc. VAT)
€9.83 (ex. VAT) |
||
|
|
CARLING TECHNOLOGIES 2FC53-73
|
In stock
|
€7.79 (inc. VAT)
€6.44 (ex. VAT) |
||
|
|
CARLING TECHNOLOGIES 6FC57-73
|
In stock
|
€11.59 (inc. VAT)
€9.58 (ex. VAT) |
||
|
|
CARLING TECHNOLOGIES 6FC53-73
|
In stock
|
€11.59 (inc. VAT)
€9.58 (ex. VAT) |
||
|
|
CARLING TECHNOLOGIES 6GM5M-73
|
In stock
|
€20.29 (inc. VAT)
€16.77 (ex. VAT) |
