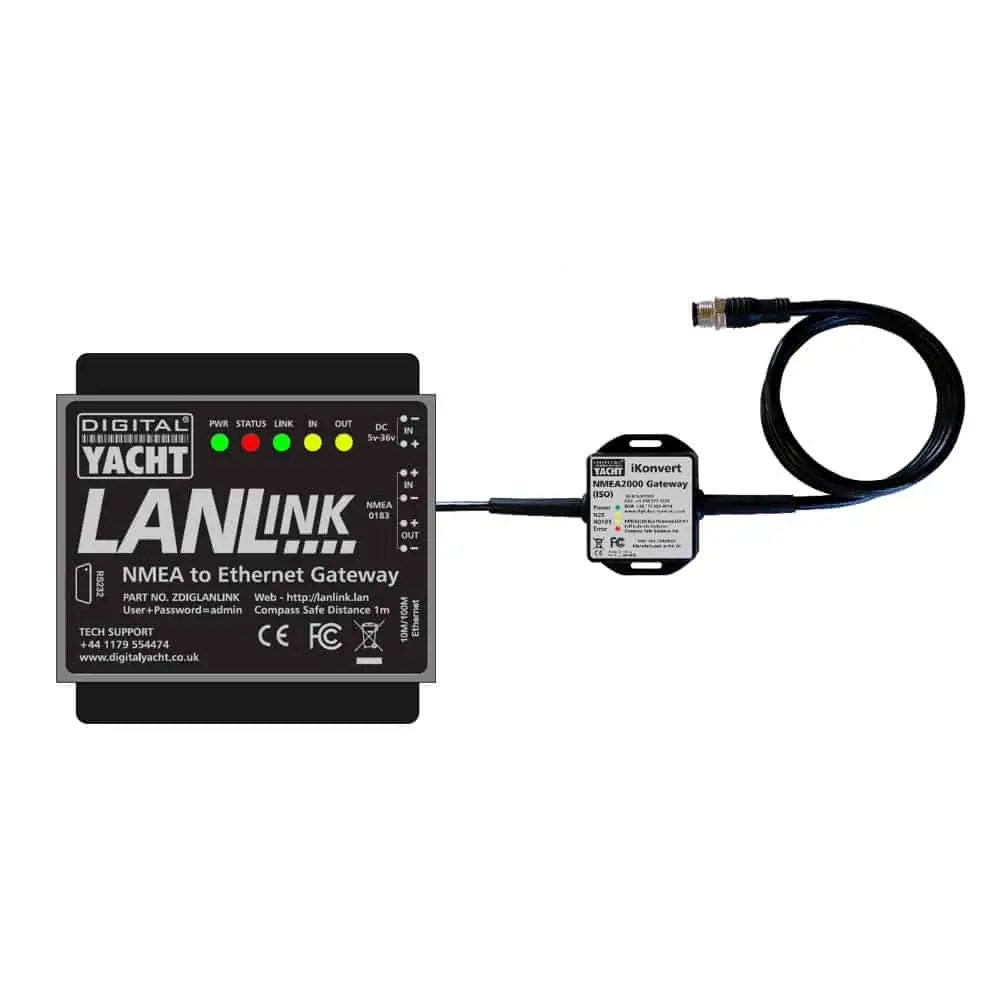

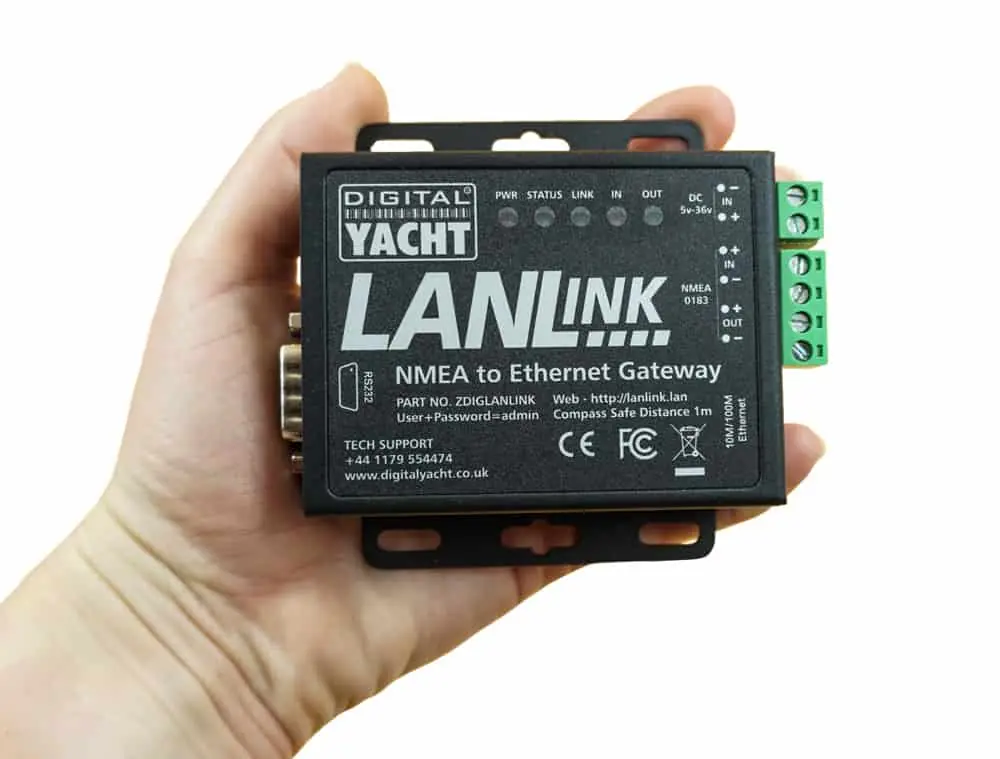

Digital Yacht LANLink – NMEA to Ethernet Gateway
Easily share NMEA data through the boats on board network router and allows up to five connected devices to use this data for apps like TZ iBoat, iNavX, Navionics, NavLink, iSailor, Imray, Weather4D , SailGrib, etc.
The Digital Yacht Lanlink gateway is available in two versions, NMEA 0183 or NMEA 2000 and integrates data with the boats existing network router or WiFi router. The Lanlink connects to the router with a standard CAT 5/6 patch cable and the easy to use web interface allows any device with a browser to configure NMEA baud rates and IP/Port information. It supports multiple TCP/IP connections and is bi-directional. Setup is easy via many apps such as TZ iBoat, iNavX, Navionics, NavLink, iSailor, Imray, Weather4D , SailGrib, simply enter the IP address and port for streaming NMEA data.
Features:
- Suitable for both 12 V and 24 V systems 10-35V DC
- Low Power - consumption approx. 50mA at 12V DC
- Available in two versions: NMEA0183 or NMEA2000
- Connects to router or devices via simple RJ45 Cat 5/6 patch cable connection
- Web user interface for easy setup from connected device via browser
- TCP/IP or UDP connection modes – support for up to 5 connected devices with TCP/IP
- NMEA 2000 variant can offer raw mode with encapsulated PGNs or conversion mode (for apps) supporting AIS, instruments and GPS
- NMEA 0183 variant has one NMEA 0183 input & output.
- RS232 port for PC
- Status indicators for power, data in-out, network link and server status
| Code | LanLink | Availability | Price | |
|---|---|---|---|---|
|
DIGITAL YACHT ZDIGLANLINK
|
In stock
|
€224.95 (inc. VAT)
€185.91 (ex. VAT) |
|
|
DIGITAL YACHT ZDIGLANLN2K
|
In stock
|
€339.01 (inc. VAT)
€280.17 (ex. VAT) |
