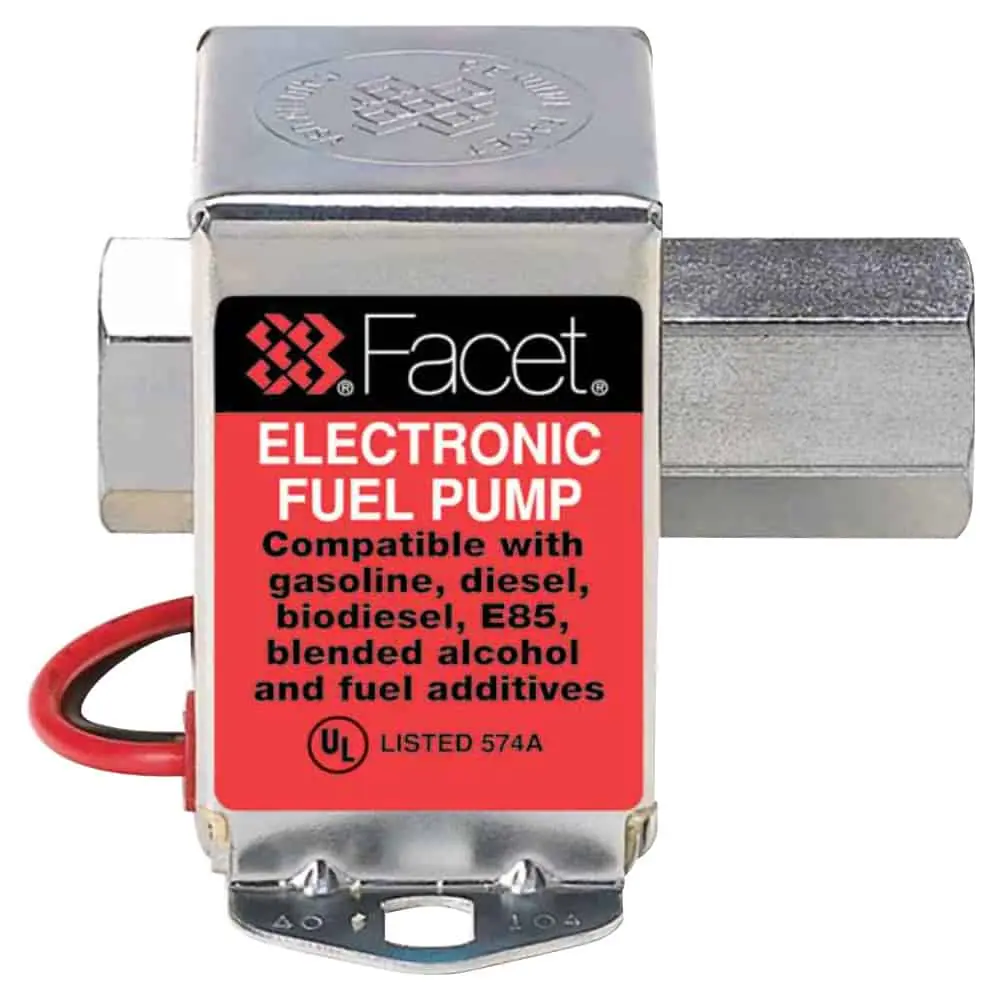

Facet Cube Solid State Electronic Fuel Pump
Very reliable 12 and 24 V DC electronic fuel pumps ideal for marine engines, generators, diesel heaters as well as commercial and industrial applications.
Fuel Compatibility - compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives.
Solid State Reliability - proven on thousands of applications. No electrical contacts. No bearings or diaphragms to wear out or fatigue. Lasts four to five times longer than many other electric fuel pumps.
Easy to Install - two-bolt installation plus the small size makes installation easy. For best results, mount the pump close to the fluid or fuel tank.
Eliminates Vapor Lock - when properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather.
Features:
- Up to 60 cm minimum dry lift (more once primed)
- Up to 145 litres/hr
- Up to 10 PSI
- Low power - 1.6 amp average (12 V models)
- Sealed Electronics
- Transient Protection
- State of the art sealed electronics
- Reverse Polarity protection
- Sealed Electronics
- UL Certified
- ELV Compliant
- Self Priming and Self Regulating
- Weight approx. 85 g
Five models normally available:
| Ref. | Volts V | PSI | BAR | l/h | Min. Dry Lift cm |
| 40104 | 12 | 1.5 - 4 | 0.10 - 0.28 | 95 | 91 |
| 40105 | 12 | 3 - 4.5 | 0.21 - 0.31 | 114 | 91 |
| 40106 | 12 | 4 - 7 | 0.28 - 0.48 | 121 | 91 |
| 40107 | 12 | 7 - 10 | 0.48 - 0.69 | 145 | 60 |
| 40164 | 24 | 4.5 - 6 | 0.31 - 0.41 | 121 | 91 |
Sizes in mm.
| Product Code | Facet Cube | Availability | Price | |
|---|---|---|---|---|
|
FACET 40107
|
In stock
|
€90.90 (inc. VAT)
€75.12 (ex. VAT) |
|
|
|
FACET 40104
|
3 days
|
€71.50 (inc. VAT)
€59.09 (ex. VAT) |
|
|
|
FACET 40105
|
In stock
|
€80.95 (inc. VAT)
€66.90 (ex. VAT) |
|
|
|
FACET 40106
|
In stock
|
€80.95 (inc. VAT)
€66.90 (ex. VAT) |
|
|
|
FACET 40164
|
In stock
|
€83.95 (inc. VAT)
€69.38 (ex. VAT) |
