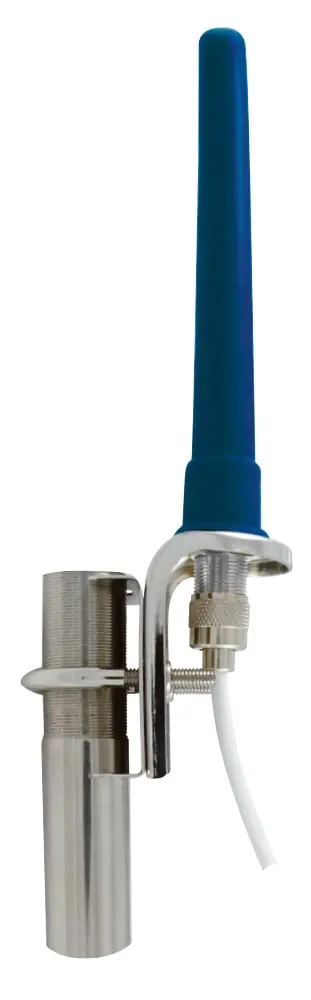

Glomex RA111AIS AIS Antenna, Bracket and Cable
Compact stubby type antenna specifically tuned to 161.975 and 162.025 MHz for both AIS receivers and transponders.
At only 140 mm long and with an included mounting bracket, cable and connectors, the Glomex RA111AIS is easy to install and perfect for mounting on the stern rail or bimini frame.
Specifications:
- Frequencies 161.975 - 162.025 Mhz
- Gain 1 dB
- Impedance 50 ohms
- Polarization Vertical
- SWR ≤ 1,2 at 162 MHz
- Max. Input Power 50 W
- DC Ground No
- Antenna length 140 mm
- Antenna Weight 220 g
- Connector SO239 for PL259 male connector
Includes:
- 9 metres of low loss cable
- BNC connector typical for AIS receivers and transponders
- PL259 Connector for connection to the antenna

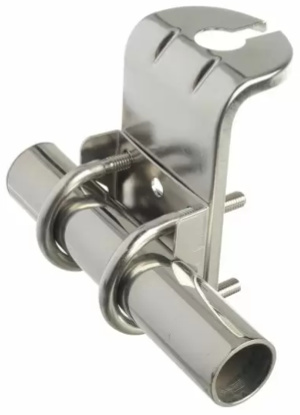

- Electro Polished stainless steel pole/tube (22 mm - 30 mm) mounting bracket suitable for vertical or horizontal installation
- Rubber protector for PL259 Connector
