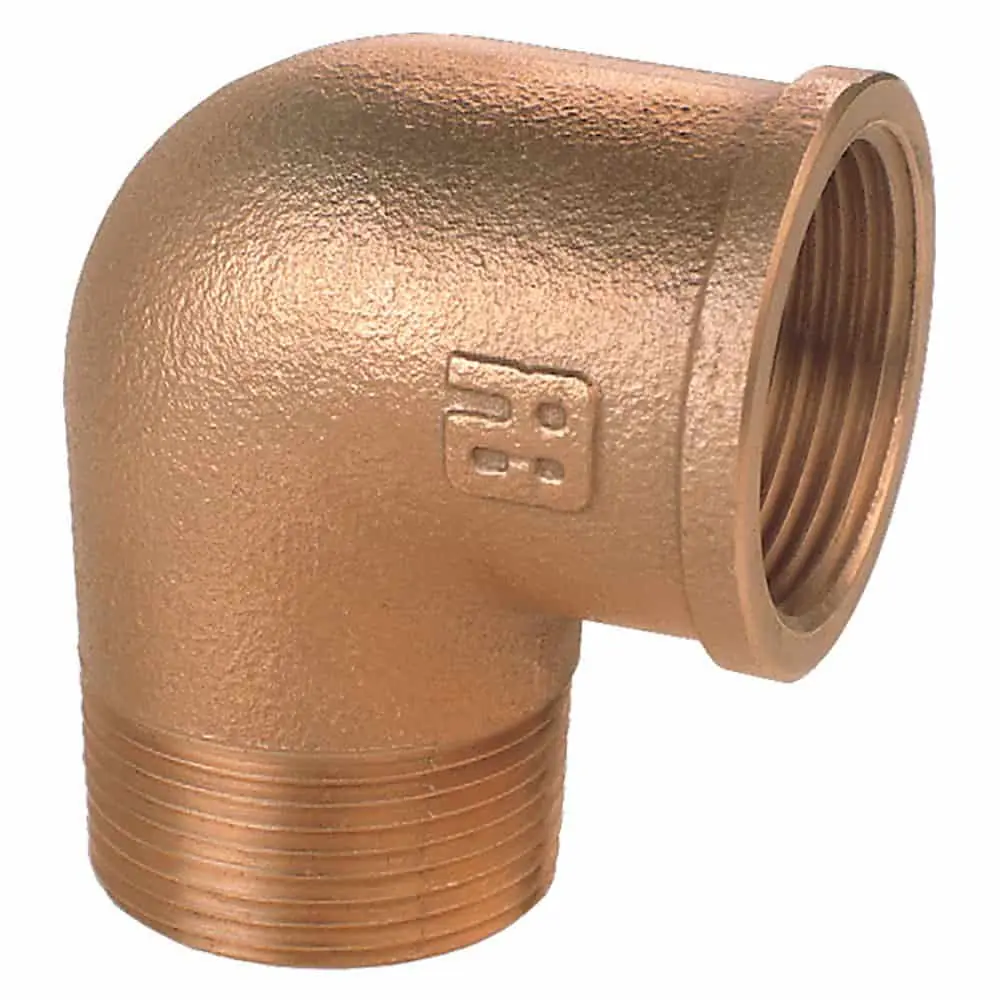

Guidi 0092B 90º Male - Female BSP Bronze Elbow
Quality solid bronze 90° male - female elbow manufactured by Guidi.
EN 10226/1 (BS 21) - BSPT male - BSP female thread.
Manufactured from solid bronze: UNI 7013/8 G-CuSn5Zn5Pb5, also know as LG2 Gunmetal.

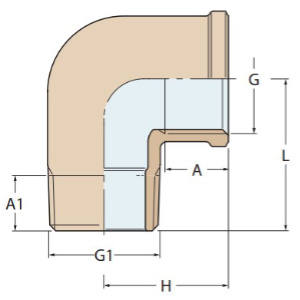

| Ref. | G1 (BSPT) G (BSP) | A mm | H mm | L mm |
| 0092B#200004 | 1/2" | 15 | 27 | 35 |
| 0092B#200005 | 3/4" | 16.3 | 31.5 | 39.5 |
| 0092B#200006 | 1" | 19.1 | 37.5 | 46 |
| 0092B#200007 | 1"1/4 | 21.4 | 45 | 54 |
| 0092B#200008 | 1"1/2 | 21.4 | 48 | 59 |
| 0092B#200009 | 2" | 25.7 | 59 | 69 |
Contact us for other sizes.
