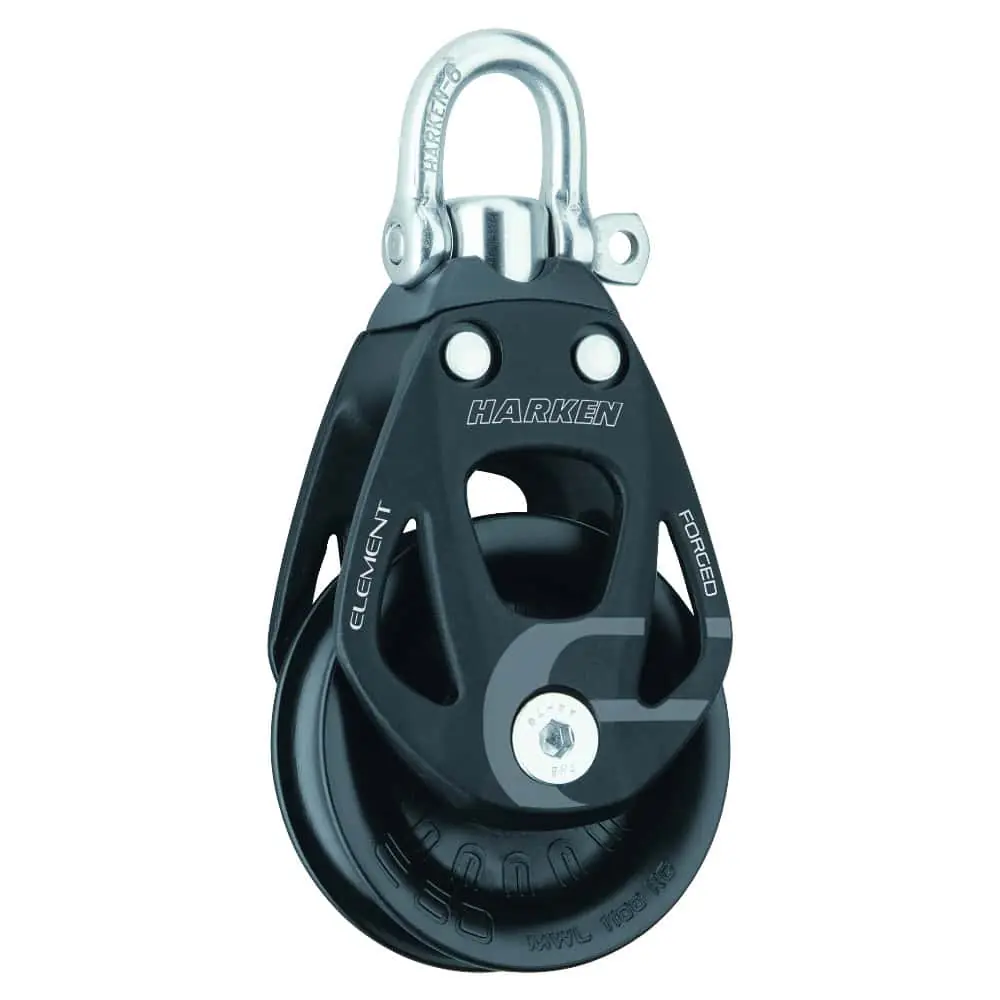

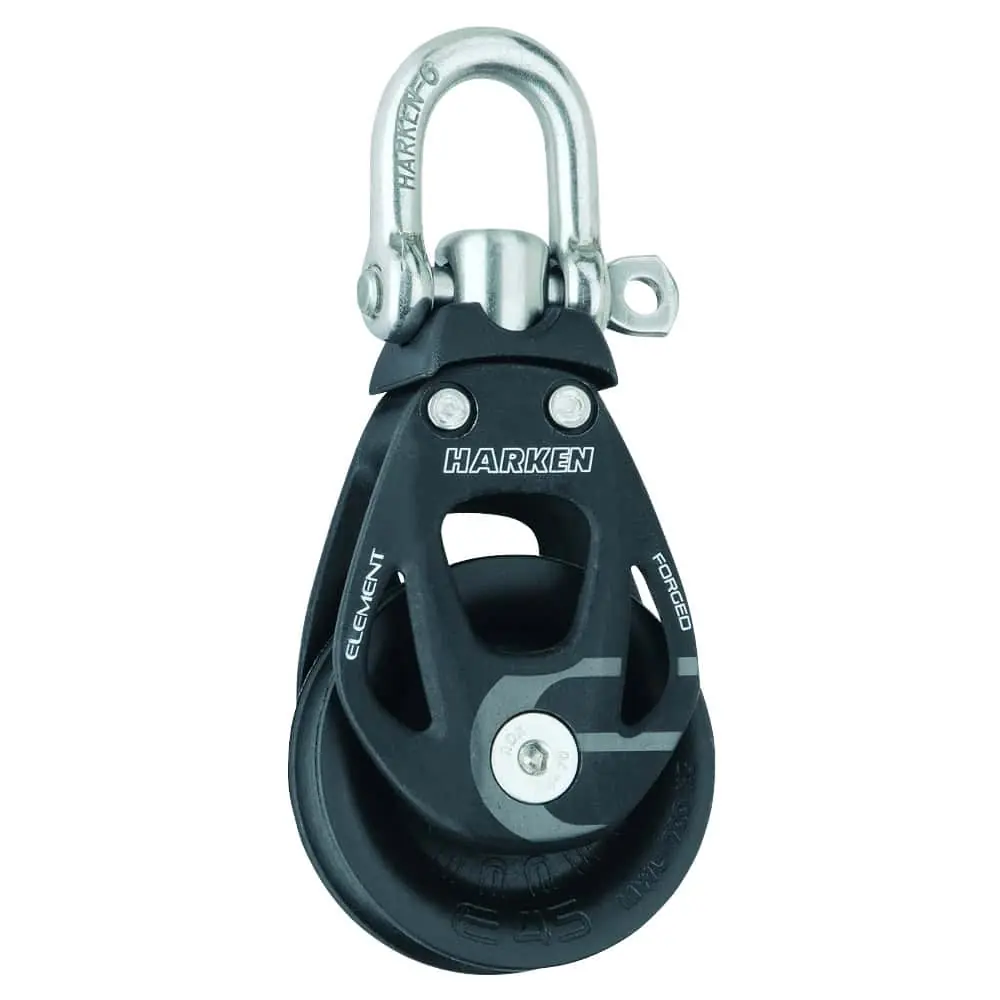

Harken Element Block - Single Swivel

List price:49.92 ex. VAT Price:43.76 ex. VAT
Price: 52.95 (inc. VAT)
You save: €6.16 (12%)
Save 12%
HARKEN 6230
Preorder
7 days (approx.)
+
Shipping Costs:

Tough, lightweight and resistant to the sun, salt and impact.

Hardcoat-anodized, forged aluminium side plates with compound curves for maximum strength but with the minimum metal required to protect the sheave for weight saving and competitive pricing. Element blocks feature a proven journal or plain bearing for maximum reliability, ideal for less dynamic and high strength applications. A tough composite bearing more resistant to corrosion ensures a long service life.

  • Aluminium sideplates are forged for strength and sheave protection.
  • Sideplates are hardcoat-anodized to resist corrosion.
  • Sheave of tough composite resists corrosion for a long service life.
  • Shackles are strong, corrosion-resistant stainless steel.
  • Removable headpost lock allows shackle to be fixed or to swivel


Available in single, double, triple, fiddle, and footblocks in 45, 60 and 80 mm sizes.

Ref. Model Sheave Ø  Shackle Pin Ø Length Max. Line Ø Working Load kg Breaking Load kg Weight g
6230 45  45 mm 6 mm 102 mm 12 mm 700 1400 103
6260 60 60 mm 6 mm 105 mm 14 mm 1100 2200 155
6290 80 80 mm 10 mm 171 mm 16 mm 2200 4400 475
