Harken Radial® Self-Tailing Winch

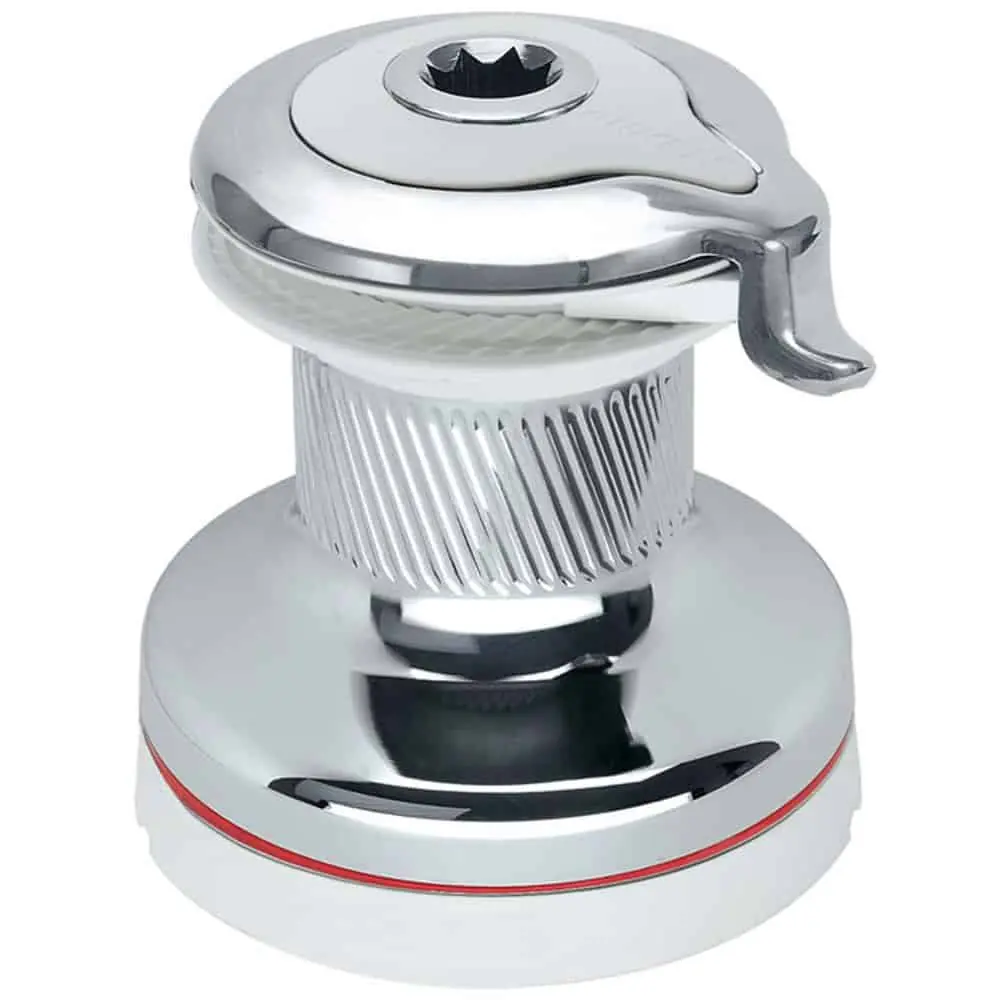

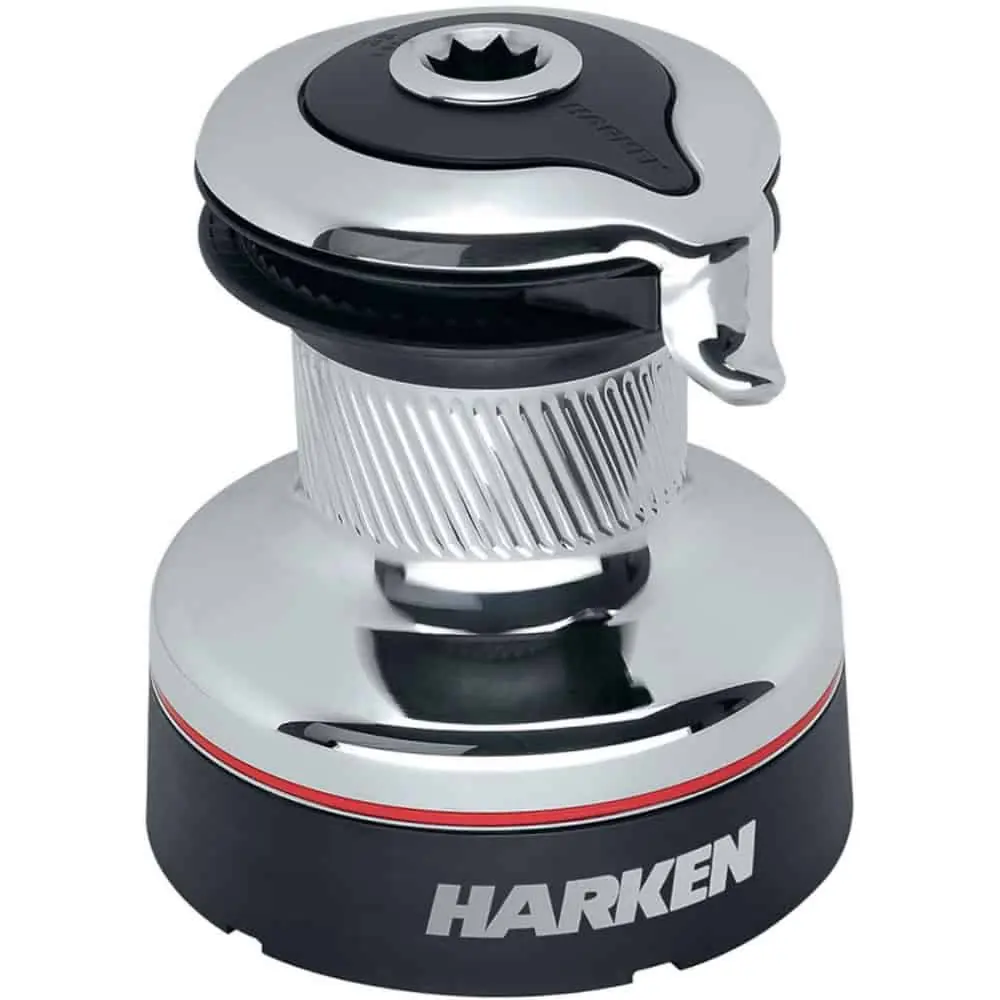

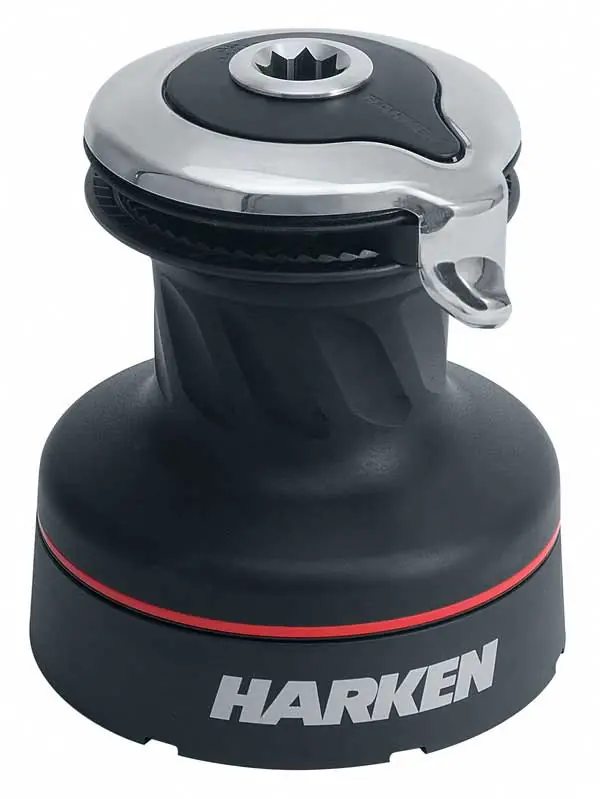

Lightweight, extremely strong with plenty of power. Available with aluminium, chrome black and chrome white models.
Harken Radial winches feature a specific drum surface for each winch size and material ensuring the absolute optimum grip. Diagonal ribs (rather than textured abrasive materials) maximize gripping power and at the same time greatly reduce line abrasion. When easing out a line, the angle of the ribs helps to force the line down, preventing overrides and providing a smooth, controlled release. Aluminium or chrome drums and high-strength composite self-tailing jaws and skirt save weight. Composite roller bearings reduce friction under load and don’t require lubrication. Load-carrying gears and pins are 17-4PH stainless steel for strength and durability.
Integrated Stripper Arm - The strong, one-piece stripper arm completely covers the winch top for a stable platform that prevents fingers and clothing from catching in moving parts. The arm can be adjusted to multiple positions after the winch is mounted, and is shaped to smoothly feed line into and out of the self-tailing jaws.

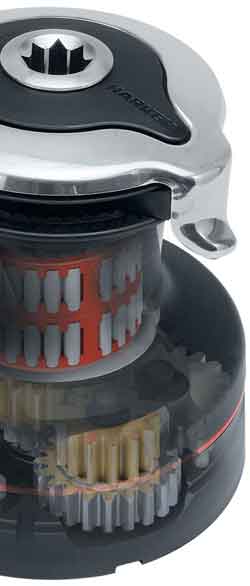

Lightweight, High-Strength Materials - Composite roller bearings and bushings reduce friction under load, have excellent corrosion resistance, and don’t require lubrication. Snap-fit design keeps bearings captive in high-strength Delrin® cage when drum is removed for maintenance. Load-carrying gears and pins are 17-4PH stainless steel for strength and durability. Weight savings of 25 to 50 percent compared to other winches
Easy to Service and Maintain - Winches can be disassembled and serviced on deck. The socket, washer, and screw-top snap-fit together to simplify maintenance and for mistake-free assembly.
Power-Grip Jaws - Composite self-tailing jaws of long-glass fibre are shaped for easy line entry and optimum gripping power. The spring-loaded upper jaw adjusts under line pressure to accept a variety of line sizes. Teeth grip evenly with or without load.
Easy and Quick Installation - A patent-pending stud-bolt mounting system allows one person to quickly install a winch without removing the drum, a simple three step process.
| Model | Drum D mm |
Base B mm |
Height H mm |
Entry LE mm |
Line mm |
Weight kg |
Gear Ratio Speed 1 |
Gear Ratio Speed 2 |
Power Ratio Speed 1 |
Power Ratio Speed 2 |
| 20STA | 73 | 137 | 148 | 61 | 6-12 | 2.4 | 2.76:1 | 19.2:1 | ||
| 20STC | 73 | 137 | 148 | 61 | 6-12 | 3.4 | 2.76:1 | 19.2:1 | ||
| 20STCW | 73 | 137 | 148 | 61 | 6-12 | 3.4 | 2.76:1 | 19.2:1 | ||
| 35.2STA | 80 | 149 | 170 | 70 | 8-12 | 3.6 | 2.13:1 | 5.65:1 | 13.5:1 | 35.9:1 |
| 35.2STC | 80 | 149 | 170 | 70 | 8-12 | 4.8 | 2.13:1 | 5.65:1 | 13.5:1 | 35.9:1 |
| 35.2STCW | 80 | 149 | 170 | 70 | 8-12 | 4.8 | 2.13:1 | 5.65:1 | 13.5:1 | 35.9:1 |
| 40.2STA | 80 | 157 | 175 | 82 | 8-12 | 3.8 | 2.13:1 | 6.28:1 | 13.5:1 | 39.9:1 |
| 40.2STC | 80 | 157 | 175 | 82 | 8-12 | 5.4 | 2.13:1 | 6.28:1 | 13.5:1 | 39.9:1 |
| 40.2STCW | 80 | 157 | 175 | 82 | 8-12 | 5.4 | 2.13:1 | 6.28:1 | 13.5:1 | 39.9:1 |
| 46.2STA | 100 | 184 | 201 | 90 | 8-14 | 5.2 | 2.30:1 | 9.17:1 | 11.7:1 | 46.5:1 |
| 46.2STC | 100 | 184 | 201 | 90 | 8-14 | 7.8 | 2.30:1 | 9.17:1 | 11.7:1 | 46.5:1 |
| 46.2STCW | 100 | 184 | 201 | 90 | 8-14 | 7.8 | 2.30:1 | 9.17:1 | 11.7:1 | 46.5:1 |
| 50.2STA | 110 | 194 | 212 | 97 | 8-14 | 7.6 | 4.80:1 | 14.4:1 | 20.3:1 | 61.0:1 |
| 50.2STC | 110 | 194 | 212 | 97 | 8-14 | 9.2 | 4.80:1 | 14.4:1 | 20.3:1 | 61.0:1 |
| 46.2STCW | 100 | 184 | 201 | 90 | 8-14 | 7.8 | 2.30:1 | 9.17:1 | 11.7:1 | 46.5:1 |
| 60.2STA | 120 | 236 | 246 | 116 | 8-16 | 10.2 | 3.2:1 | 10.5:1 | 16.2:1 | 52.0:1 |
| 70.2STA | 130 | 240 | 256 | 111 | 10-18 | 11.3 | 5.7:1 | 18.5:1 | 22.2:1 | 72.0:1 |
Sizes 60 & 70 are also available in a three speed model.
| Code | Harken Radial® | Availability | Price | |
|---|---|---|---|---|
|
HARKEN 20STA
|
7 days
|
€529.00 (inc. VAT)
€437.19 (ex. VAT) |
|
|
|
HARKEN 35.2STA
|
7 days
|
€929.00 (inc. VAT)
€767.77 (ex. VAT) |
|
|
|
HARKEN 40.2STA
|
7 days
|
€969.00 (inc. VAT)
€800.83 (ex. VAT) |
|
|
|
HARKEN 46.2STA
|
7 days
|
€1,458.00 (inc. VAT)
€1,204.96 (ex. VAT) |
|
|
|
HARKEN 50.2STA
|
7 days
|
€2,179.00 (inc. VAT)
€1,800.83 (ex. VAT) |
|
|
HARKEN 20STC
|
7 days
|
€599.00 (inc. VAT)
€495.04 (ex. VAT) |
|
|
HARKEN 35.2STC
|
7 days
|
€988.00 (inc. VAT)
€816.53 (ex. VAT) |
|
|
|
HARKEN 40.2STC
|
7 days
|
€1,089.00 (inc. VAT)
€900.00 (ex. VAT) |
|
|
|
HARKEN 46.2STC
|
7 days
|
€1,669.00 (inc. VAT)
€1,379.34 (ex. VAT) |
|
|
|
HARKEN 50.2STC
|
7 days
|
€2,519.00 (inc. VAT)
€2,081.82 (ex. VAT) |
|
|
HARKEN 20STCW
|
10 days
|
€659.00 (inc. VAT)
€544.63 (ex. VAT) |
|
|
|
HARKEN 35.2STCW
|
10 days
|
€1,089.00 (inc. VAT)
€900.00 (ex. VAT) |
