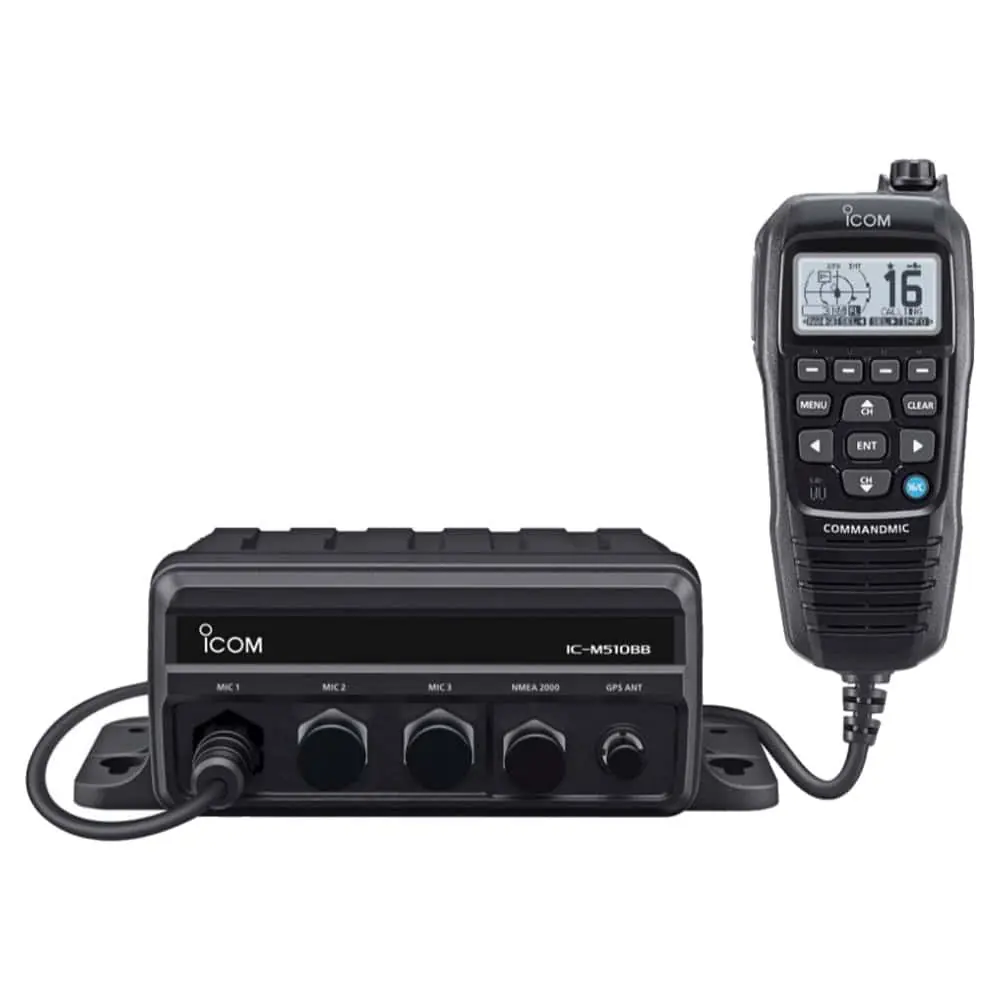

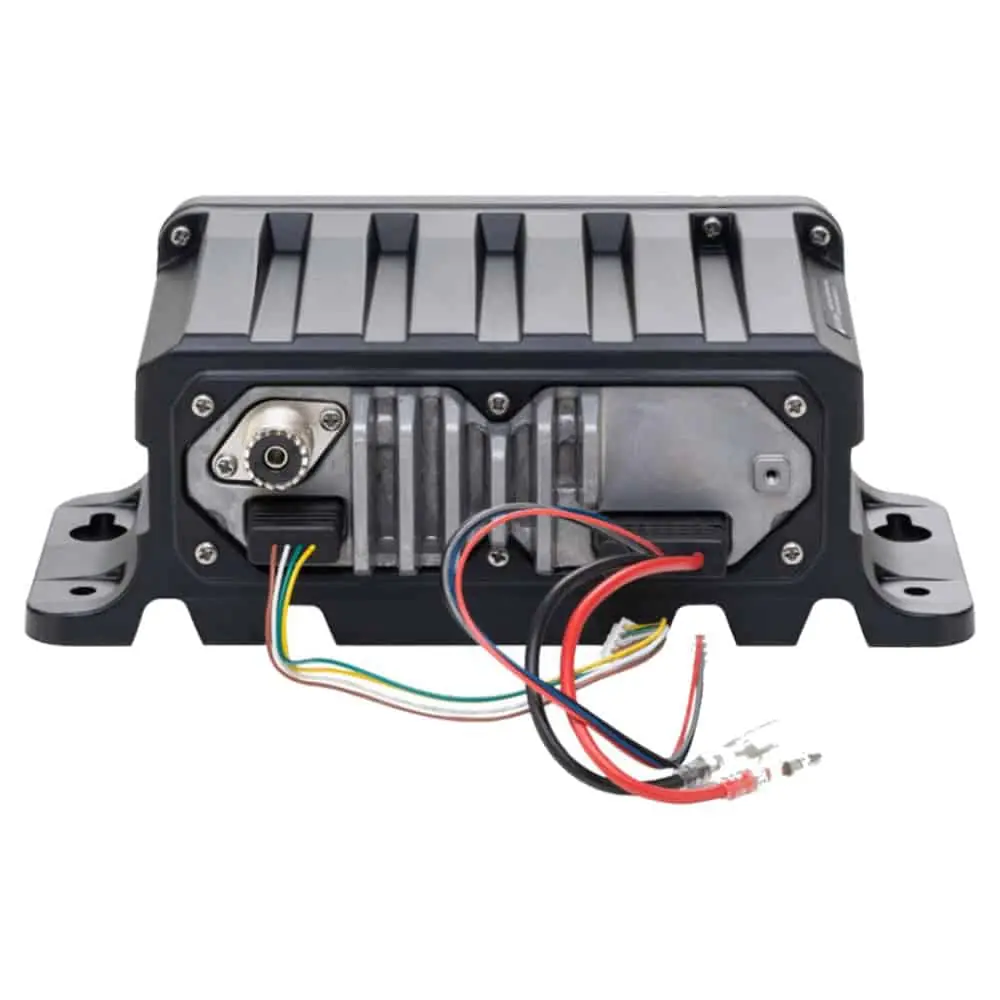

Icom IC-M510BB Black Box VHF Radio
The Icom IC-M510BB black box marine radio allows the installation of a full featured multi station marine VHF in areas where space is limited or where a traditional fixed mount VHF is not suitable such as twin helm stations on modern sailing boats. Up to three stations can be installed with the IC-M510BB with all operations, including DSC, made from the CommandMic and with the black box unit installed out-of-sight. When not in use the CommandMic can simply be unplugged and stowed away.
Space Saving Design and Two Stations with Intercom

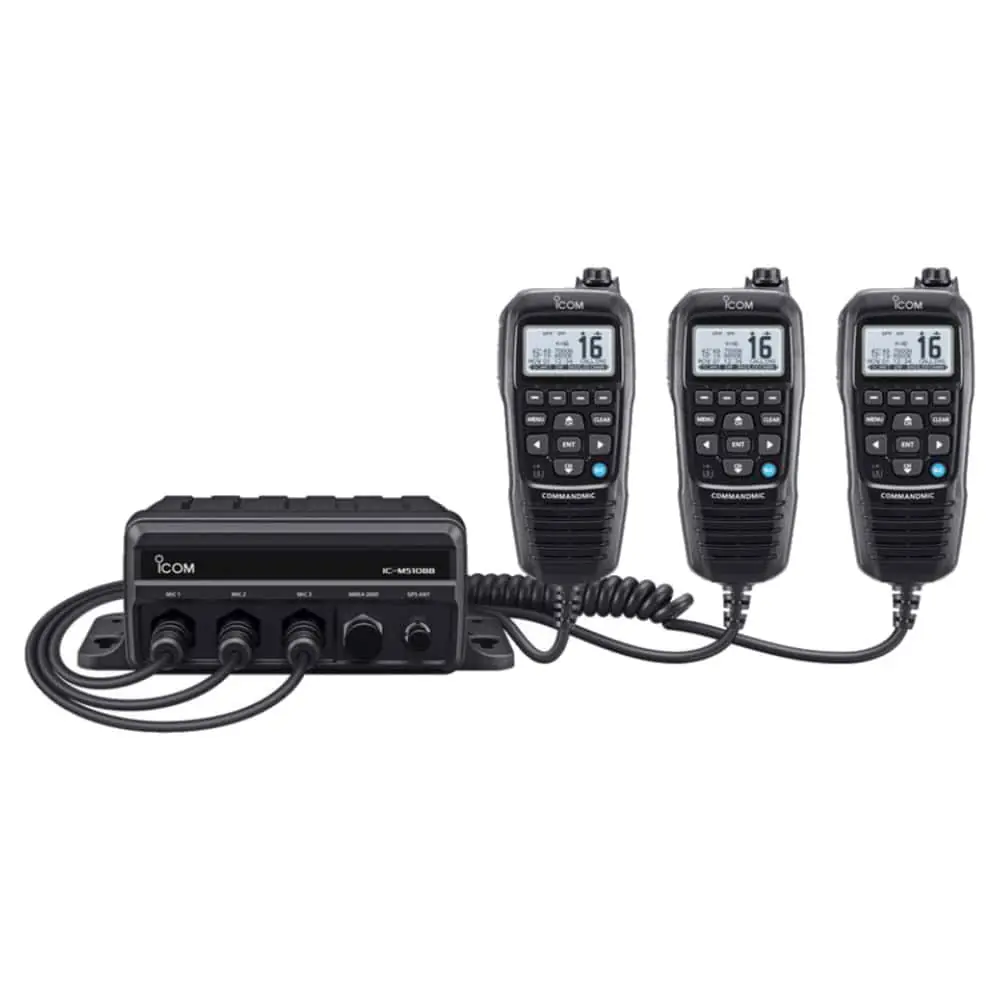

The IC-M510BB is supplied with a single CommandMic, but two additional CommandMic can be installed almost anywhere on board. All operations, including DSC, can be made from the HM-195GB and all stations can also be used as an intercom. The CommandMic can be installed up to 18 metres (optional extension cable required) from the Black Box unit allowing installation in the best location even in areas with limited space.
Built-in Class D DSC and Distress Button
With the built-in DSC (Digital Selective Calling) system, by simply pressing the Distress Button, a digital distress message is transmitted and can be received by both the Coast Guard and/or other vessels. The DSC watch function continuously monitors the DSC channel (Ch. 70) for added safety and security.
Built-in NMEA 2000 & NMEA0183HS
The NMEA 2000 network provides plug-and-play data communication to inter-connect with other marine equipment such as an MFD (Multi-Function Display.) The radio can send GNSS (GPS) position, DSC call, and radio channel data to other equipment.
Two Minutes Voice Recording Function
The last call voice recording function automatically saves up to two minutes of an incoming call.
Active Noise Cancelling Technology
The Active Noise Cancelling technology digitally removes background noise from both transmitted and received audio, providing clear communication in a noisy maritime environment.
Loud RX Hailer/Foghorn
A built-in 13 W amplifier increases the audio output to an external hailer speaker. The RX hailer function enables you to keep watch of radio traffic on the deck or tower through the hailer speaker. You can also sound foghorn patterns from the hailer speaker
Active Noise Cancelling Technology
The Active Noise Cancelling technology digitally removes background noise from both transmitted and received audio, providing clear communication in a noisy maritime environment.
Loud RX Hailer/Foghorn
A built-in 13 W amplifier increases the audio output to an external hailer speaker (not included). The RX hailer function enables you to keep watch of radio traffic on the deck or tower through the hailer speaker. You can also sound foghorn patterns from the hailer speaker.
Features:
- IPX7 waterproof (1 m depth water for 30 minutes).
- Integrated GPS receiver (External GPS antenna is included with the EUR version).
- AquaQuake function.
- External speaker connection from the CommandMic cable.
- Anchor Watch function.
- DSC Remote Control Interface for PC Console Software (EN 300 338-8 Compatible)
Included in the Box;
- IC-M510BB VHF.
- 1 x CommandMic HM-195GB.
- OPC-1540 (6,1 m) extension cable.
- HM-195GB mounting bracket/hanger.
- HM-195GB rubber socket boot
- External GPS antenna
- Power cable.
- Instruction manual in English and Spanish.
