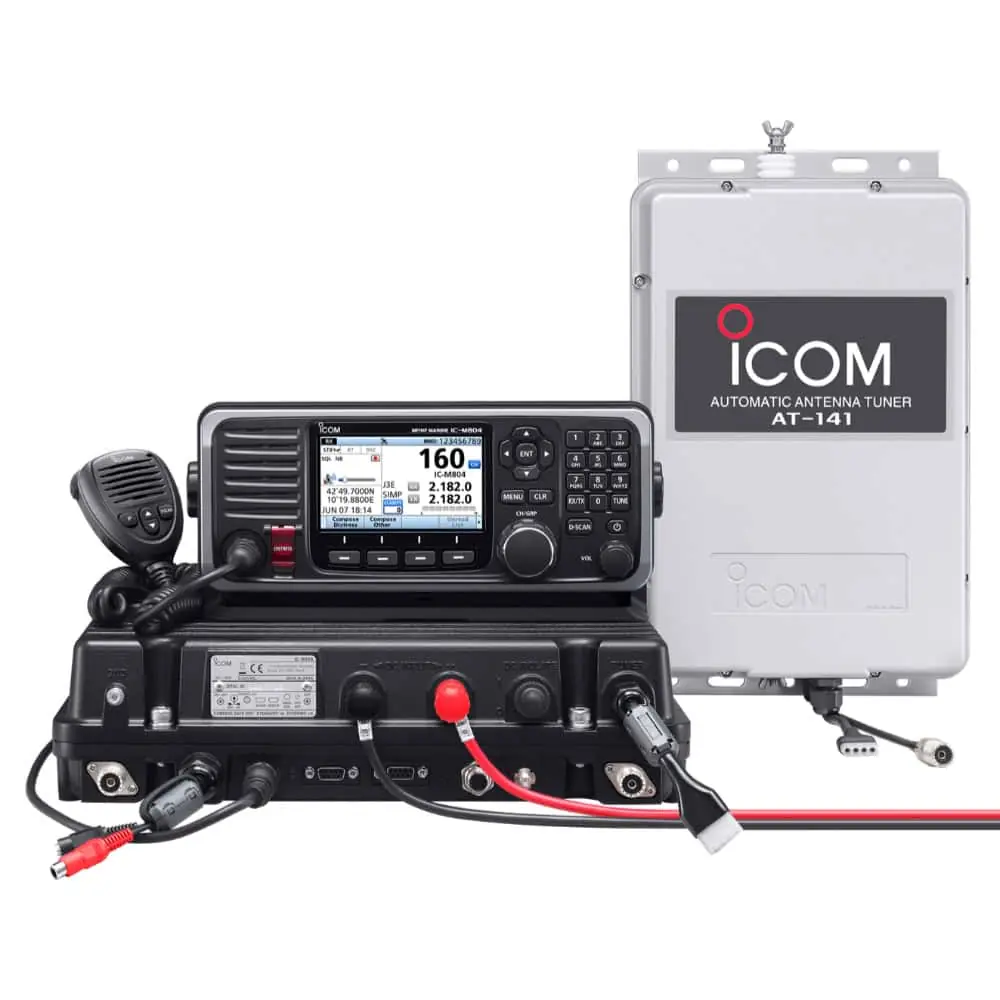

Icom IC-M804 BLU HF Pack Offshore
The latest model of the Icom 8 series marine SSB MF/HF long range transceiver for offshore sailors and commercial operators not requiring GMDSS. Based on the MED approved Class A GMDSS radio GM800, the IC-M804 is packed with features including DSC, GPS, an intuitive user interface, and colour TFT LCD display, audio replay and much more. The IC-M804 exceeds the latest European and International standards and is CE marked for the European Radio Equipment Directive (RED). It is one of the few CE-marked Class E DSC Marine MF/HF radios available on the market.
Offshore pack includes:
- Icom IC-M804 MF/HF Transceiver.
- Icom AT-141 Automatic Antenna Tuner.
- Icom OPC-1465 10 Metre Connection Cable
Available in either 12 V or 24 V versions.
Class E DSC MF/HF SSB Radio
The IC-M804 meets ITU-R M.493-15 Class E DSC regulations and is based on the MED approved GM800 Class A GMDSS radio. The IC-M804 provides long-distance communications for non-GMDSS vessels with almost identical features and functions except for the different DSC class. In an emergency, by pressing the large independent Distress button you will be able to send an automated digital Distress signal including GNSS coordinates which can be received by other ships and coastal stations.
Built-in DSC Watch-Keeping Receiver
The dedicated DSC watch-keeping receiver continuously scans the six distress channels in rotation. A total of 100 MMSI numbers (75 Individual and 25 Group) for DSC calls can be stored with a 10-character ID name.
Intuitive User Interface
The combination of directional keypad and soft keys provides simple operation. The most common functions are assigned to soft keys (at the bottom of the display) for quick push function access. The large ten-key pad enables you to smoothly enter channel numbers, MMSI numbers with ID names etc..
4.3 inch Wide Viewing Angle Colour TFT Display
A high-resolution colour LCD provides an almost 180 degree very wide viewing angle and displays characters and function icons clearly. The night mode display ensures good readability in the dark for further convenience.
NMEA 2000™, NMEA 0183/-HS Connectivity
Using NMEA 2000™ connectivity, the IC-M804 can exchange GNSS, DSC call information, radio information and PGN list data on the network. NMEA 0183HS GNSS position data can also be converted to NMEA 2000™ data for other equipment.
Two Minutes Voice Recorder Memory
The Voice Recorder function automatically records the last 2 minutes of receiving audio.
Ready for HF E-mail Operation
It is possible to program email frequencies in any of the M804 user channels, these can then be selected with a simple operation. As the mode of transmission is AFSK (using audio from a modem) it would need to be programmed in J3E mode. Requires the service of an email provider and modem.
Meets Strict Environmental Requirements
The IC-M804 has passed rigorous environmental testing and quality assurance processes. It is designed to provide reliable operation and corrosion resistant durability under harsh maritime environments. The controller has IPX7 protection (1 m depth of water for 30 minutes).
AT-141 Automatic Antenna Tuner
The AT-141 automatic antenna tuner matches all bands to your antenna. If due to a fault the automatic tuner cannot tune the antenna, the IC-M804 bypasses the tuner and will display an alert on the display.
Features:
- 12 volt and 24 volt versions are available for this model.
- 125 W (PEP) of RF output at AT-141 output power.
- 0.5–29.999 MHz continuous receiver coverage.
- Advanced RF direct sampling system employed.
- Integrated GNSS receiver and supplied with a 5 metre cable GNSS antenna.
- Programmable microphone buttons for quick function access.
| Cod.artículo | Icom ICM804 | Disponibilidad | Precio | |
|---|---|---|---|---|
|
ICOM IC-M804(12V)+AT-141+OPC-1465
|
7 días
|
€3,799.00 (con IVA)
€3,139.67 (sin IVA) |
|
|
|
ICOM IC-M804(24V)+AT-141+OPC-1465_26C1
|
7 días
|
€3,799.00 (con IVA)
€3,139.67 (sin IVA) |
