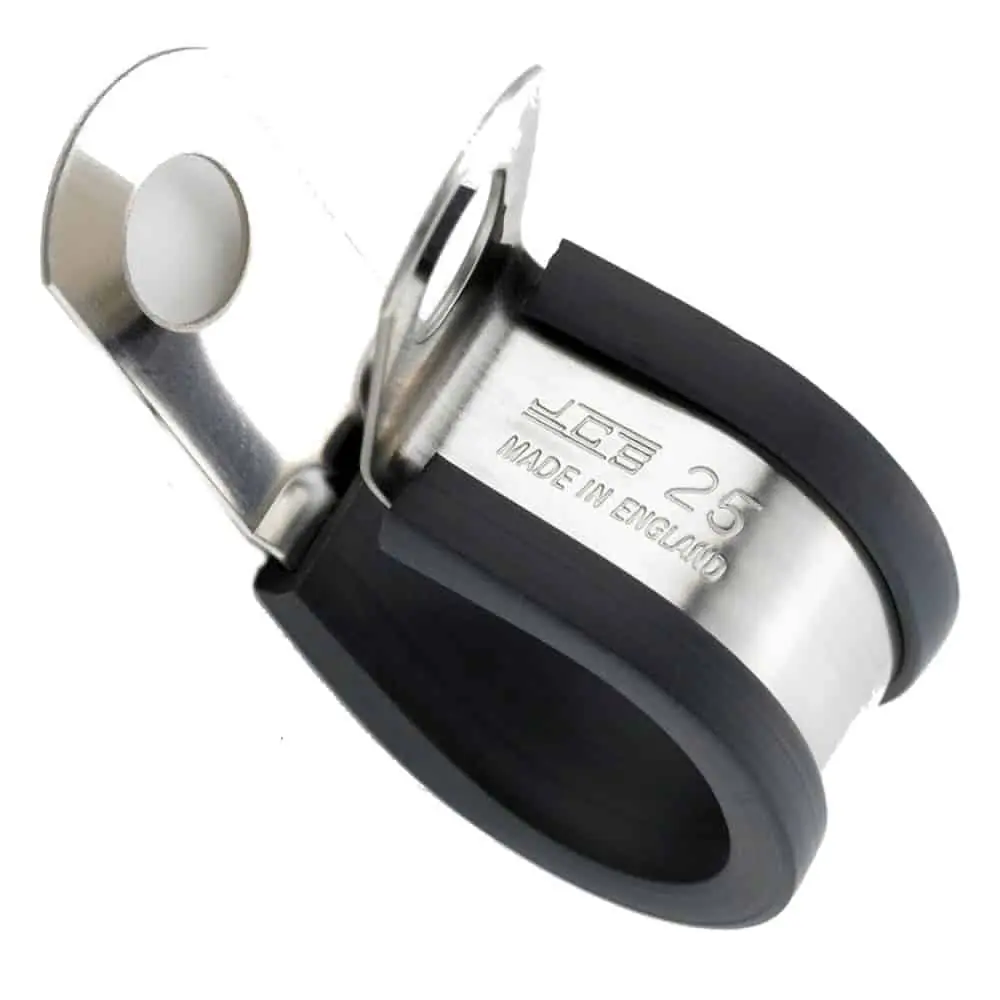

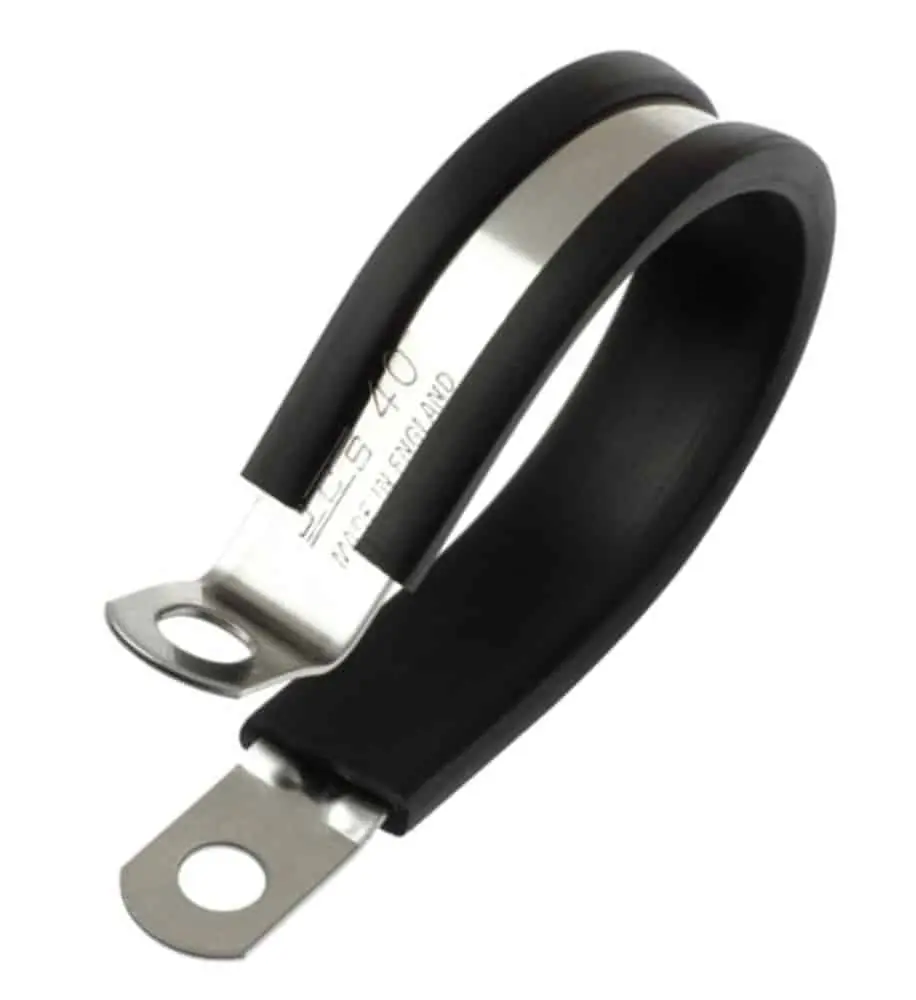

JCS 304 Stainless Steel P-Clip
Simple fixing solution for cables, pipes and hoses. P-clips avoid vibration damage and chafing and allows a professional installation in even the most difficult locations.
JCS marine grade p-clips are manufactured from BS304 – EN1.4301-A2, 18-8 stainless steel. The UV and ozone resistant TPE rubber liner protects the cable/pipe from damage and is suitable for use from -30 ̊C to +60 ̊C.
The angled design increases strength and keeps the clips flush with the mounting surface.
Mounting hole diameter 6.6 mm designed for M6 screws or bolts.
| Size Closed Ø mm |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
| 5 | 6 | 15 | 0.7 | 6.6 | 12.6 | 16 | 7 |
| 8 | 8 | 17 | 0.7 | 6.6 | 12.6 | 16 | 7 |
| 10 | 9 | 18 | 0.7 | 6.6 | 12.6 | 16 | 7 |
| 12 | 10 | 20 | 0.7 | 6.6 | 12.6 | 16 | 7 |
| 16 | 12 | 21 | 0.9 | 6.6 | 12.6 | 16 | 7 |
| 21 | 15 | 24 | 0.9 | 6.6 | 12.6 | 16 | 7 |
| 25 | 17 | 26 | 0.9 | 6.6 | 12.6 | 16 | 7 |
| 32 | 20 | 30 | 0.9 | 6.6 | 12.6 | 16 | 7 |
| 35 | 22 | 31 | 0.9 | 6.6 | 12.6 | 16 | 7 |
| 40 | 24 | 34 | 0.9 | 6.6 | 12.6 | 16 | 7 |
