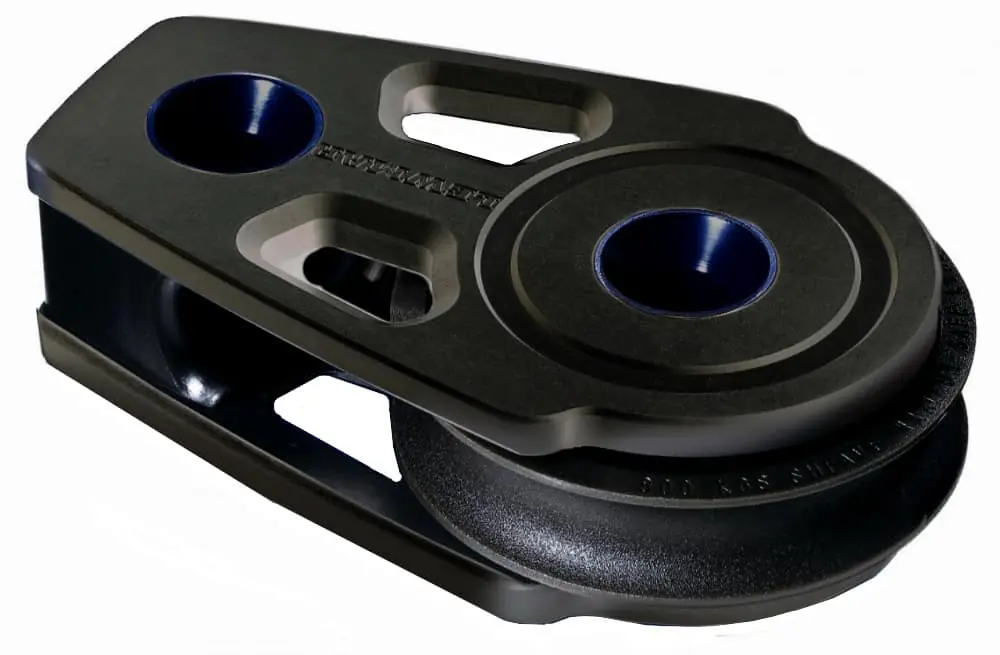

Lewmar Synchro Footblock
High quality footblock ideal for Genoa and Main sheets and other high load applications. Lewmar's Synchro footblocks use alloy cheeks, isolators in the bolt holes to prevent corrosion and a moulded base plate to hold sealant and prevent ingress into the sheave.
Synchro Footblocks can be double stacked and are available in 60mm, 72mm and 90mm versions.
- Can be double stacked
- Tough alloy cheeks
- Synchro sheave loads match the same sized blocks
- Twin fixings with insulating inserts
- Wide head for a solid base, block will not “roll” on the deck
- Moulded base plate with recess to hold sealant around fixing screws and prevent ingress onto the bearing and sheave
| Ref | Model |
Working Load kg. |
Breaking Load kg |
Weight | Fixings |
A mm |
B mm |
C mm |
| L29926061 | 60mm | 800 | 1600 | 162 | M8 | 98 | 51 | 59 |
| L29927261 | 72mm | 1200 | 2400 | 229 | M8 | 110.6 | 58 | 71 |
| L29929061 | 90mm | 2000 | 4000 | 430 | M10 | 134 | 59 | 89 |
| Product Code | Model | Availability | Price | |
|---|---|---|---|---|
|
LEWMAR 29926061BK
|
7 days
|
€83.95 (inc. VAT)
€69.38 (ex. VAT) |
|
|
LEWMAR 29927261BK
|
7 days
|
€87.95 (inc. VAT)
€72.69 (ex. VAT) |
|
|
LEWMAR 29929061BK
|
7 days
|
€139.95 (inc. VAT)
€115.66 (ex. VAT) |
