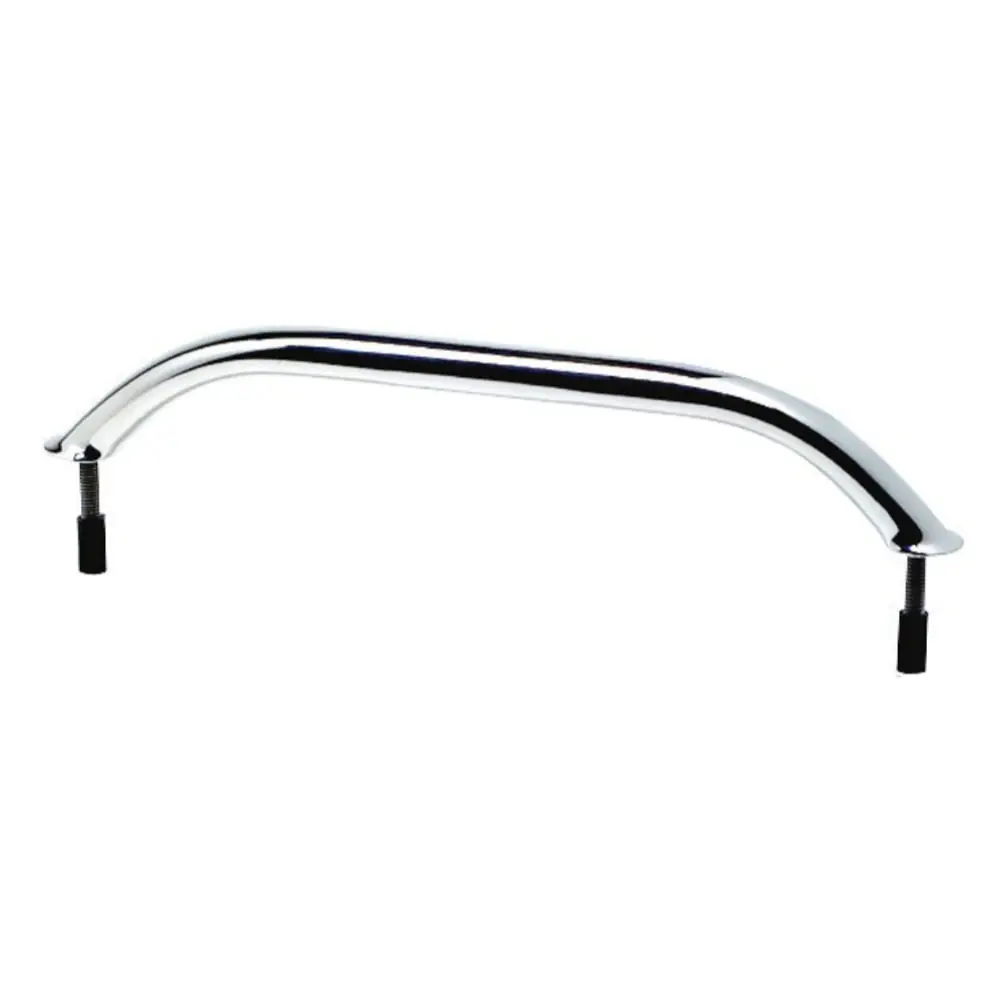

Osculati 316 Stainless Steel Oval Hand Rail
Mirror polished AISI 316 stainless steel, strong and lightweight oval handrail with hidden stud fasteners. The oval profile is both elegant and reduces the overall height and the hidden studs allow a very clean finish and are easy to seal.
Available in 7 models in lengths from 220 mm to 915 mm with 2 or 3 studs.
Sold each.

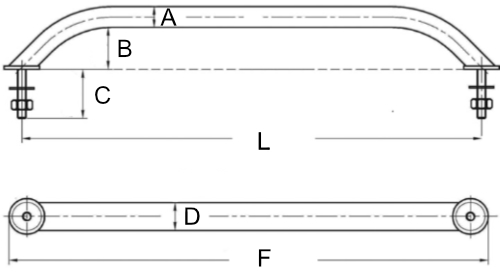

| Ref. | Fixing Length L mm | Overall Length F mm |
Tube Height A mm |
Tube Width D mm |
Clearance B mm |
Studs | Stud Length C mm |
Weight kg |
| 41.910.09 | 220 | 254 | 18.8 | 25.4 | 38.1 | 2 x 8 mm | 44.5 | 0.215 |
| 41.910.12 | 305 | 339 | 18.8 | 25.4 | 38.1 | 2 x 8 mm | 44.5 | 0.275 |
| 41.910.16 | 407 | 441 | 18.8 | 25.4 | 38.1 | 2 x 8 mm | 44.5 | 0.300 |
| 41.910.18 | 460 | 524 | 18.8 | 25.4 | 38.1 | 2 x 8 mm | 44.5 | 0.325 |
| 41.910.24 | 610 | 640 | 18.8 | 25.4 | 38.1 | 2 x 8 mm | 44.5 | 0.45 |
| 41.910.30 | 750 (375 + 375) | 782 | 18.8 | 25.4 | 38.1 | 3 x 8 mm | 44.5 | 0.66 |
| 41.910.36 | 915 (457.5 + 457.5) | 947 | 18.8 | 25.4 | 38.1 | 3 x 8 mm | 44.5 | 0.82 |
| Code | Osculati Hand Rail | Availability | Price | |
|---|---|---|---|---|
|
OSCULATI 41.910.09
|
10 days
|
€16.40 (inc. VAT)
€13.55 (ex. VAT) |
|
|
|
OSCULATI 41.910.12
|
10 days
|
€18.59 (inc. VAT)
€15.36 (ex. VAT) |
|
|
|
OSCULATI 41.910.16
|
10 days
|
€20.79 (inc. VAT)
€17.18 (ex. VAT) |
|
|
|
OSCULATI 41.910.18
|
10 days
|
€24.09 (inc. VAT)
€19.91 (ex. VAT) |
|
|
|
OSCULATI 41.910.24
|
10 days
|
€26.60 (inc. VAT)
€21.98 (ex. VAT) |
|
|
|
OSCULATI 41.910.30
|
10 days
|
€47.19 (inc. VAT)
€39.00 (ex. VAT) |
|
|
|
OSCULATI 41.910.36
|
In stock
|
€52.49 (inc. VAT)
€43.38 (ex. VAT) |
