Ronstan Orbit Ball Bearing Block™ - Single Swivel Block with Becket
Ronstan Ball Bearing Orbit Blocks™ feature the unique orbital version of the Ronstan 2 stage bearing system. Recirculating ball bearings are positioned exclusively in the loaded area of the sheave and a second full contact bearing maintains low friction across the full working load range. Combined with composite reinforced polymer materials, Orbit Blocks™ offer maximum strength to weight ratio for high load and dynamic applications.
Single Swivel Orbit blocks feature a conventional 316 (A4) stainless steel shackle which provides full rotation and ultimate durability.
Built-in Becket - Orbit Single Swivel blocks have low profile moulded check plates optimized for use with the through sheave becket system, ultra low profile and light weight.
Single swivel blocks are recommended for the following applications:
- Mainsheet and Spinnaker sheet systems¹
- Halyard, vang and backstay applications²
- Control lines on larger boats
| Ref. | Sheave mm |
Maximum Line Ø mm |
Working Load kg |
Breaking Load kg |
Shackle Pin Ø mm |
Weight g |
1. Max boat length | 2. Max boat length |

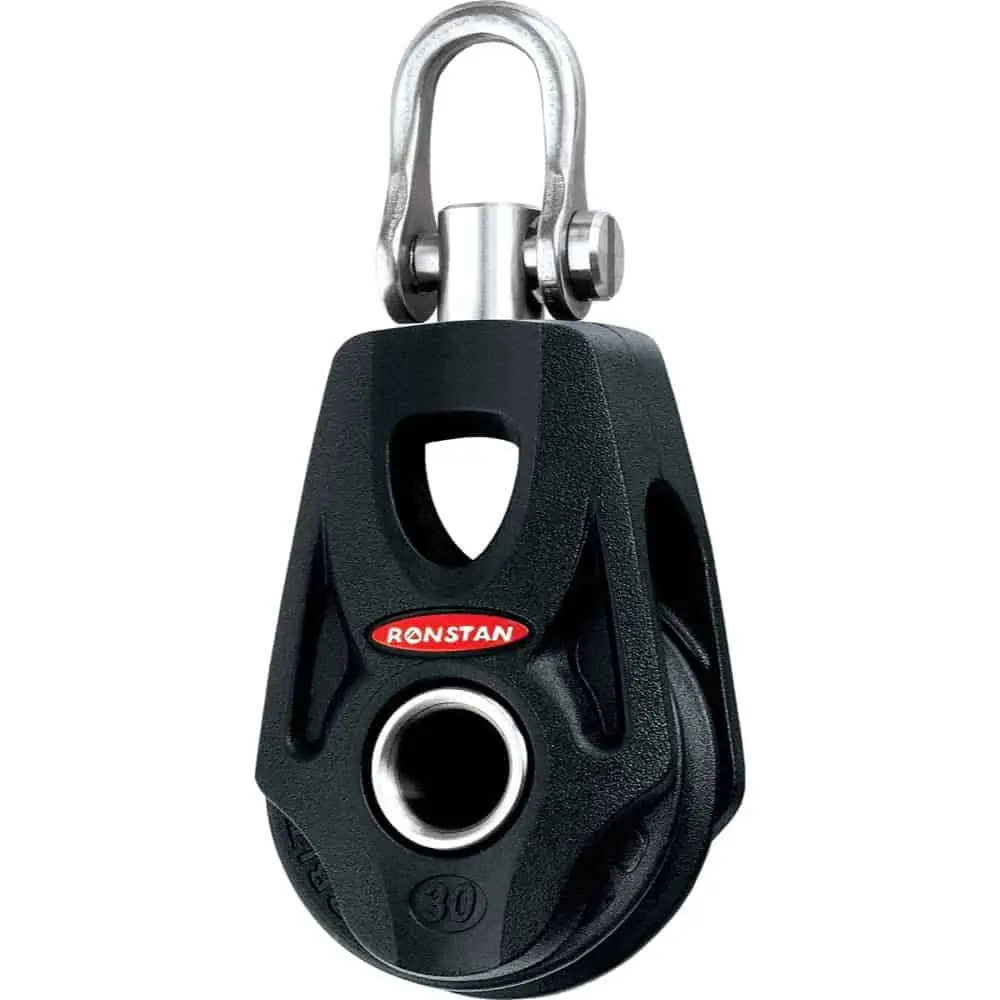

| RF35100 | 30 | 8 | 300 | 600 | 4 | 32 | 5 m | 5 m |

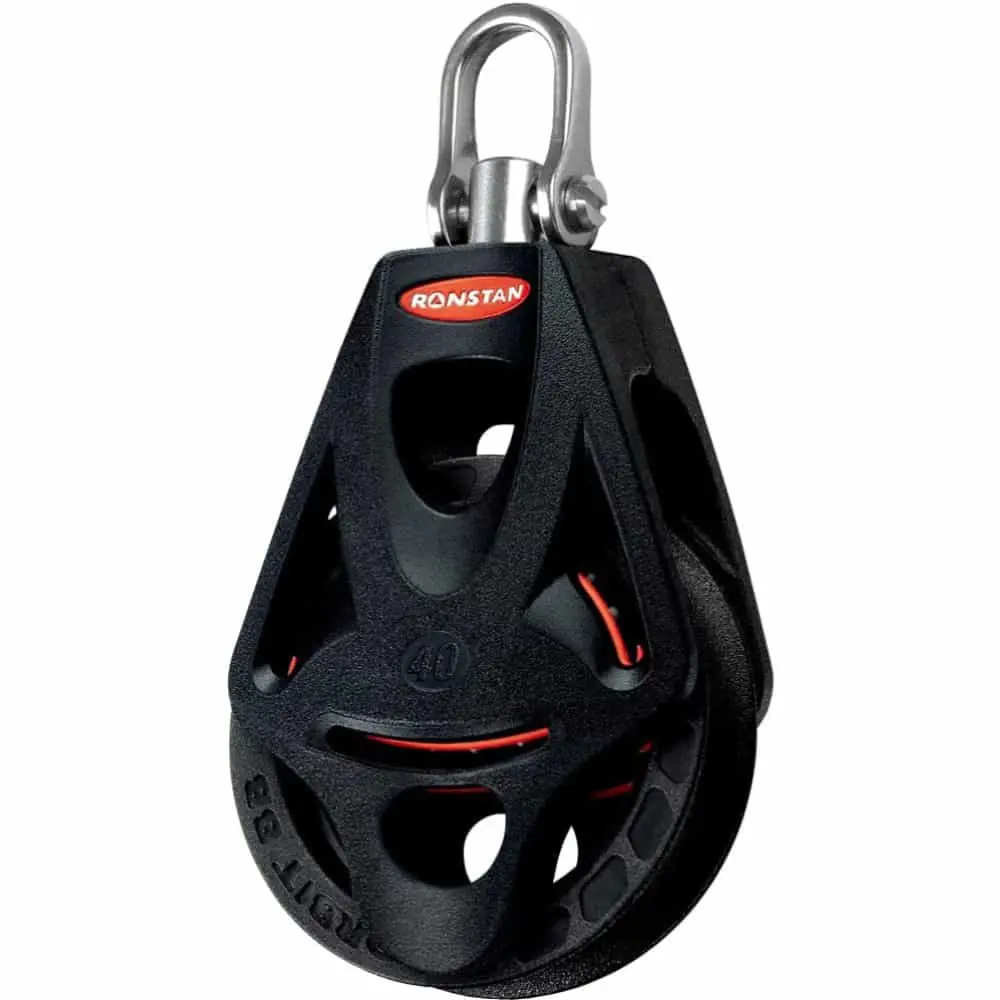

| RF45110 | 40 | 9 | 325* | 650* | 4 | 44 | 5 m | 8 m |

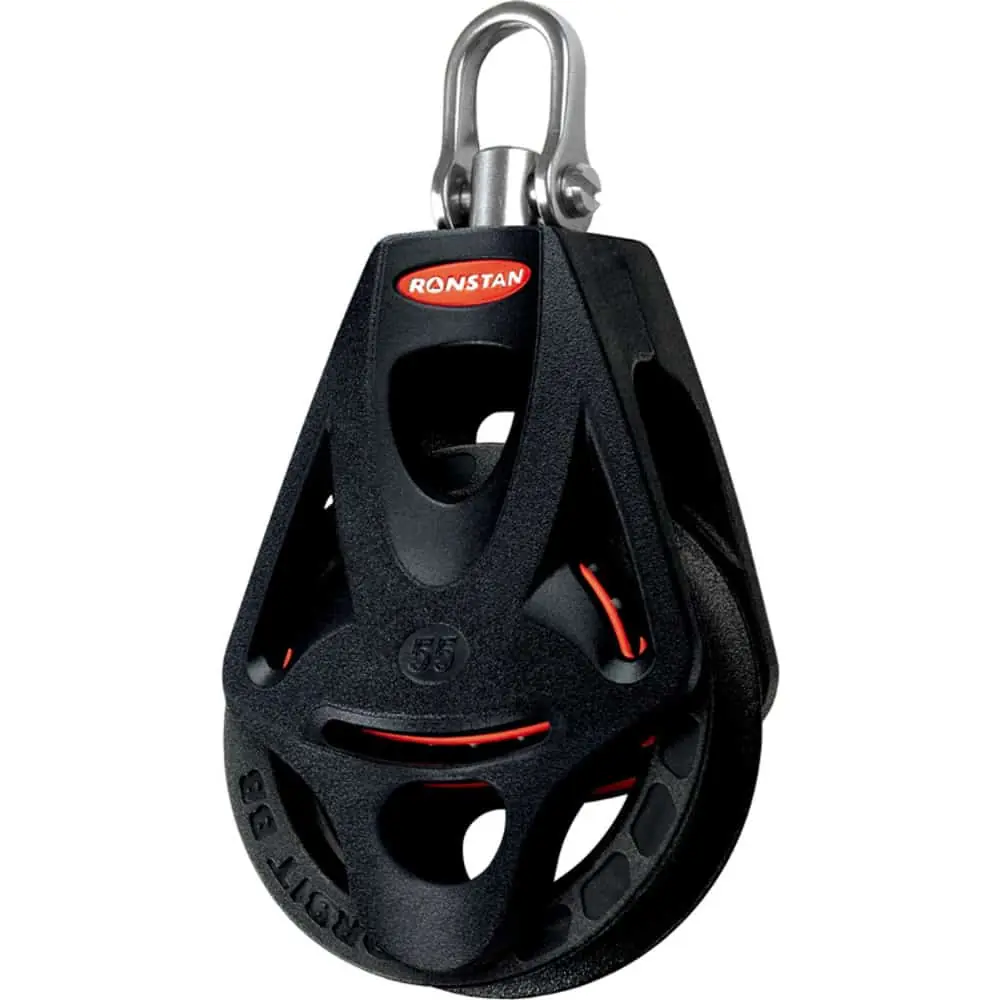

| RF55110 | 55 | 10 | 500* | 1000* | 5 | 88 | 9 m | 8 m |
* The loads indicated are the maximum loads of the block. The built-in becket is limited to the following loads:
- RF45110 max. working load 125 kg, max. breaking load 250 kg
- RF55110 max. working load 250 kg, max. breaking load 500 kg
| Code | Ronstan Orbit Block™ | Availability | Price | |
|---|---|---|---|---|
|
RONSTAN RF35100
|
3 days
|
€22.99 (inc. VAT)
€19.00 (ex. VAT) |
|
|
RONSTAN RF45110
|
3 days
|
€34.59 (inc. VAT)
€28.59 (ex. VAT) |
|
|
RONSTAN RF55110
|
3 days
|
€43.39 (inc. VAT)
€35.86 (ex. VAT) |
