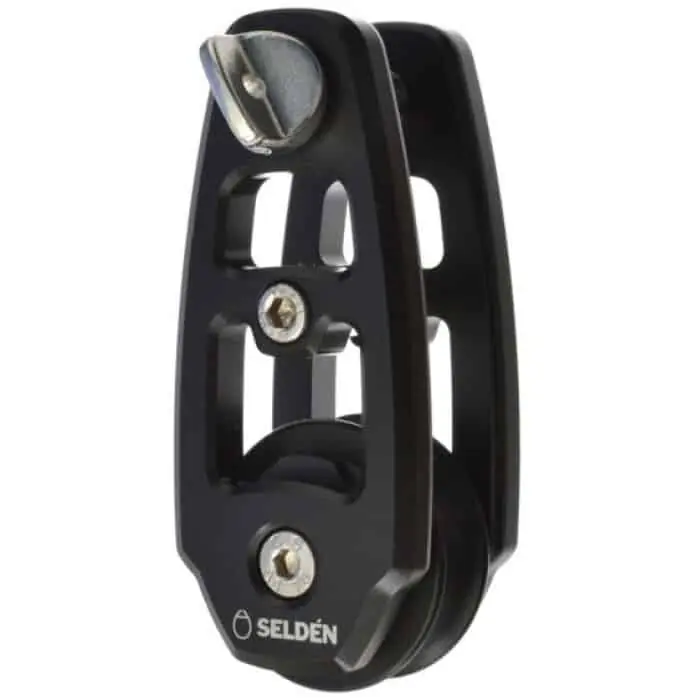

Seldén High Load 2:1 Purchase Halyard Block
High strength 2:1 purchase halyard block with aluminium side plates and break load up to 8000 kg.

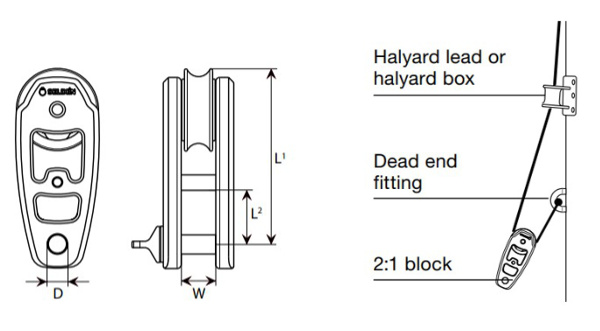

When using a Code Zero sail on a continuous line furler a tight halyard will give maximum luff tension and therefore maximum performance when sailing closer to the wind. A 2:1 purchase block achieves almost double the tension available with a standard halyard and at the same time reduces the forces imposed on all the mast fittings and reduces stretch in the halyard. The halyard for the 2:1 block is fixed to the masthead or dead end of the halyard in the mast and run through the 2:1 block attached to the halyard swivel. Also suitable for main halyards. The pin is captive avoiding accidental loss overboard.
| Ref. | Seldén CX/GX | Sheave Ø mm |
Max. Line Size Ø mm |
Working Load kg |
Breaking Load kg |
L¹ mm |
L² mm |
W mm |
D mm |
Weight kg |
| 403-501-01 | CX15 | 30 | 10 | 1500 | 3000 | 68 | 21 | 13 | 8 | 100 |
| 404-501-01 | CX25/GX25 | 40 | 12 | 2500 | 5000 | 85 | 26 | 18 | 10 | 187 |
| 405-501-01 | CX45 | 50 | 16 | 4000 | 8000 | 104 | 31 | 24 | 12 | 335 |
| Code | Seldén 2:1 Puchase Block | Availability | Price | |
|---|---|---|---|---|
|
SELDEN 403-501-01
|
7 days
|
€105.95 (inc. VAT)
€87.56 (ex. VAT) |
|
|
|
SELDEN 404-501-01
|
7 days
|
€193.95 (inc. VAT)
€160.29 (ex. VAT) |
|
|
|
SELDEN 405-501-01
|
10 days
|
€295.95 (inc. VAT)
€244.59 (ex. VAT) |
