Silentwind Mast Mounting Kit
All the fittings required to install a mast mount onboard, except the poles and bolts!
As stainless steel tubing is available worldwide at low cost without expensive delivery costs, the Silentwind Mast Mounting Kit is a cost effective, simple and fast mounting solution for the Silentwind 400+ Marine Wind Generator as well as other generators, radar and satellite antennas.

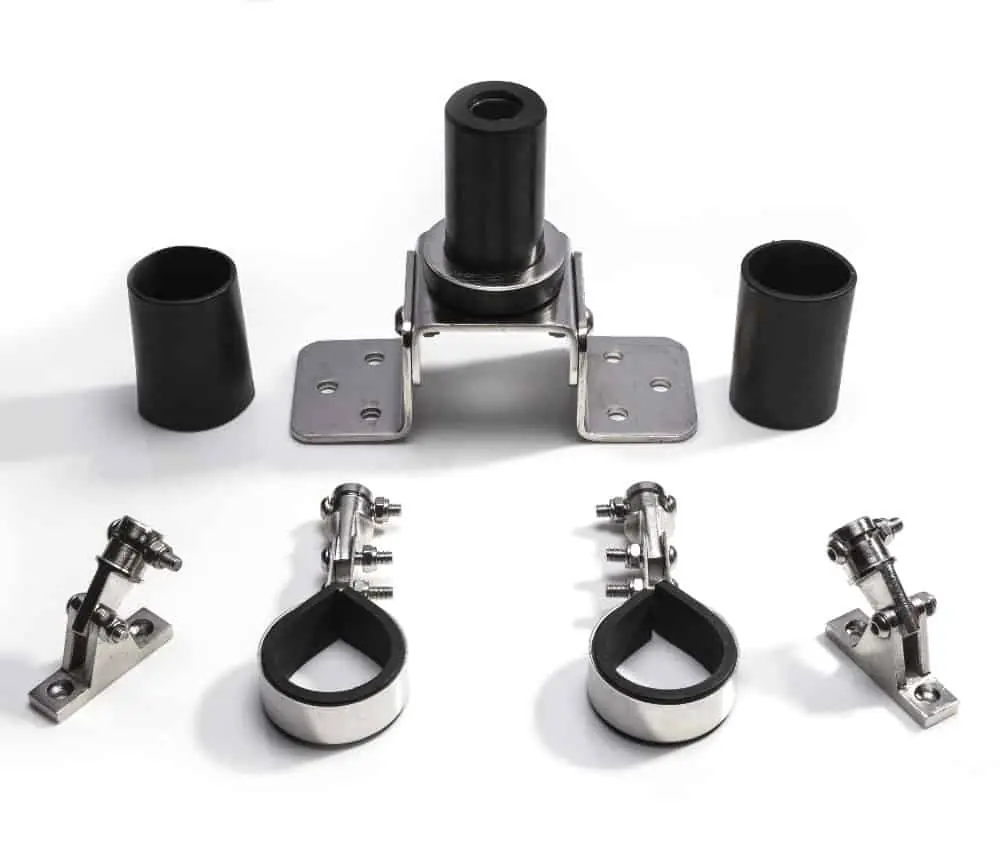

Designed for poles with a 48mm outside diameter. The swivelling base can be mounted either horizontally for deck mounting or vertically for stern mounting as well as on angled surfaces. Both the base fitting and the mast clamps are supplied with rubber inserts to reduce vibration and noise transmission as much s possible. The base fitting has an adaptor to fit different interior diameters allowing the use of tubes with different wall thickness. A cable hole is integrated in the mast foot allowing the cables to exit the bottom of the base units.
Product Features:
- Suitable for a mast with 48 mm outside diameter (11/2“ – tube)
- Rubber adapter sleeve enables the use of tubes with different wall thicknesses
- Made of polished stainless steel
- Swiveling base fitting allows mounting on horizontal, vertical & angled surfaces
- Adjustable mast stay fittings
- Rubber insulation to reduce noise and vibration
- Integrated cable exit
- Quick and easy installation
Approximate pole requirements: (careful site evaluation is required for accurate requirements)
- 1 x mast approx. 2.5 - 3.5 metres with 48mm OUTSIDE diameter
Recommended 2.5mm wall thickness for stainless
- 2 x stays approx 2.5 -3.5 metres each with 19mm INSIDE diameter
Recommended 2.5mm wall thickness for stainless
See the Installation manual in the "Downloads & Attachments" tab for full instructions.
