Solbian SP Sun Power Maxeon Flexible Solar Panels

List price:416.00 ex. VAT Price:353.72 ex. VAT
Price: 428.00 (inc. VAT)
You save: €62.28 (15%)
Save 15%
SOLBIAN SP 16 Q
Preorder
10 days (approx.)
+
Shipping Costs:

Ultra-light, ultra-thin, ultra-efficient and flexible, 25.5% efficiency - When you need the maximum power in limited space.

Sun Power Maxeon Solar Cells

Top of the Solbian range, the Solbian SunPower Maxeon back contact solar panels use back-contact crystalline silicon cells for an incredible efficiency of over 25%, the most advanced technology available on the market today. Incredibly the highest output 150 W panel weighs only 2 kg and is only 2 mm thick and due to its flexible backing and multiple installation options and accessories, can be installed almost anywhere on board, if installed on a rigid surface they can be walked on without damage.

Solbian Sun Power Back Contact Cells
The SP series panels use high efficiency monocrystalline back contact cells. The electric contacts create a thick pattern resembling two interpenetrating combs on the rear of the cell, this guarantees an optimal management of micro fractures, without power loss. Back-contact cells are also the best choice when it comes to efficiency in low light and sensitivity at higher temperatures. In fact, the temperature coefficient is 25% lower than the other crystalline cells. No grid lines on front of cell means no obstacles to the absorption of sunlight. Maximum efficiency and great aesthetics. Massive strength and resistance to corrosion.



Encapsulated in an unbreakable weatherproof protective plastic film for installation with up to 25% curvature. Tried and tested in the most extreme conditions from offshore round the world racing to remote expeditions.




Features:

  • The most efficient flexible modules on the market.
  • Flexible and lightweight (2.4 kg/m2).
  • Completely waterproof and resistant to salt water.
  • Thin (less than 2 mm).
  • IEC 61215, IEC 61730 and IEC 61701 certified.
  • 5 year warranty against manufacturing defects.
  • Positive power tolerance (0%, +5%).
  • Integrated bypass diodes to minimise output losses associated with partial shading.
  • Available with different front sheets, many fixing and electrical wiring options
  • White, black or transparent back sheet.
  • Adaptable to any battery: from 5 to 48 V,  lead-acid or lithium.
  • Designed and manufactured in Italy.



Available in 54, 82, 110, 124, 138 and 150 W versions.

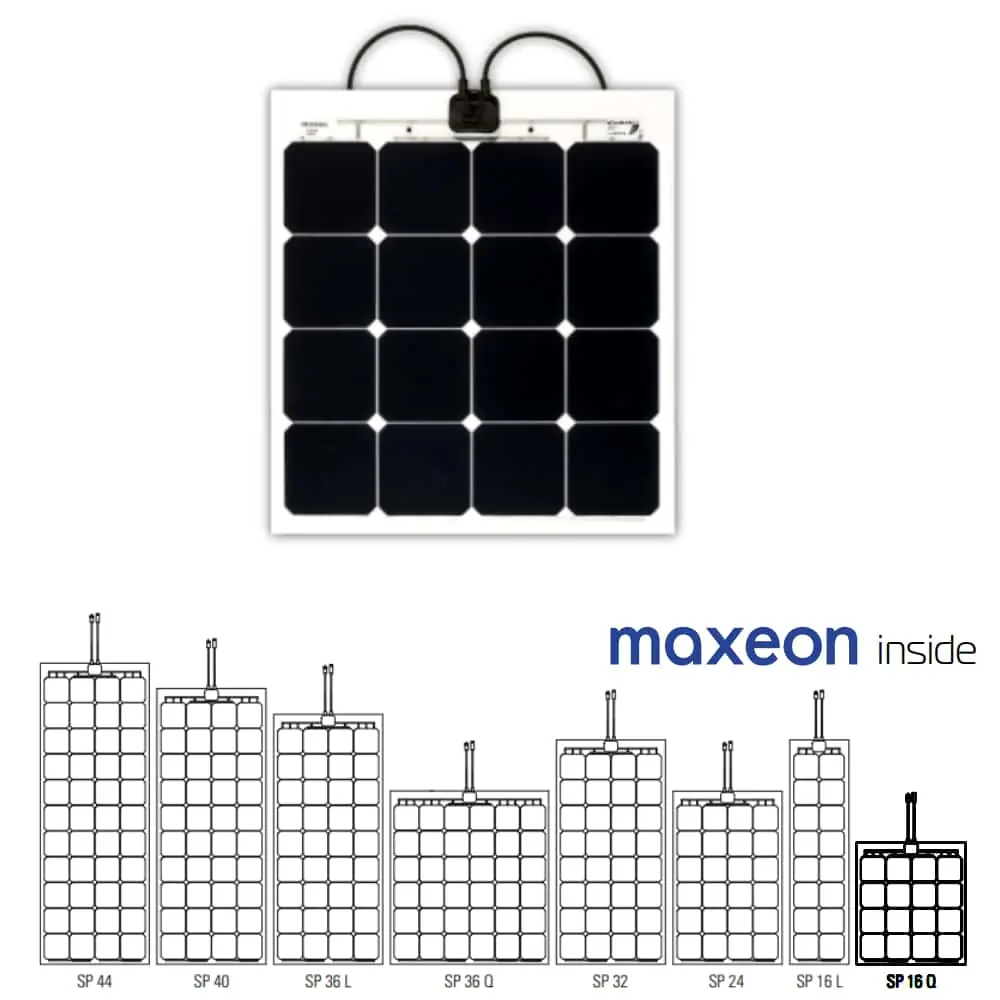

Model SP 44 SP 40 SP 36L SP 36Q SP 32 SP 24 SP 16L SP 16Q
Peak Power Pmax 150 W 138 W 124 W 124 W 110 W 82 W 54 W 54 W
Nº of Cells 44 40 36 36 32 24 16 16
Rated Voltage Vmp 26.8 V 24.6 V 22.1 V 22.1 V 19.6 V 14.6 V 9.6 V 9.6 V
Open Circuit Voltage Voc 32.0 V 29.1 V 26.2 V 26.2 V 23.3 V 17.5 V 11.6 V 11.6 V
Rated Current Imp 5.6 A 5.6 A 5.6 A 5.6 A 5.6 A 5.6 A 5.6 A 5.6 A
Short Circuit Current Isc 6.0 A 6.0 A 6.0 A 6.0 A 6.0 A 6.0 A 6.0 A 6.0 A
Dimensions mm 1490 x 546 1363 x 546 1236 x 546 855 x 800 1109 x 546 855 x 546 1109 x 292 601 x 546
Thickness mm 2 2 2 2 2 2 2 2
Weight kg 1.9 1.7 1.6 1.6 1.4 1.1 0.8 0.8


Due to the lower voltage of the 54, and 82 W panels, please check compatibility with your solar regulator.

We recommend the Western Co WMarine MPPT & Genasun GV-BOOST MPPT Controllers.

Solbian Junction Box

Junction Box

Panel Prices include a junction box and approx. 50 cm of cables to allow connection to the installation. Panels can also be supplied with the Surface Mounting Option where the cables exit the panels at the rear. Holes need to be drilled in the mounting surface; this option allows a perfectly flush installation.

Contact us for details.



Factory Fitted Mounting Options

See the Factory Fitted Mounting Options at the following link:

Solbian Flexible Marine Solar Panel Installation Options



Solbian Mounting Options

Solbian Sun Power Maxeon
