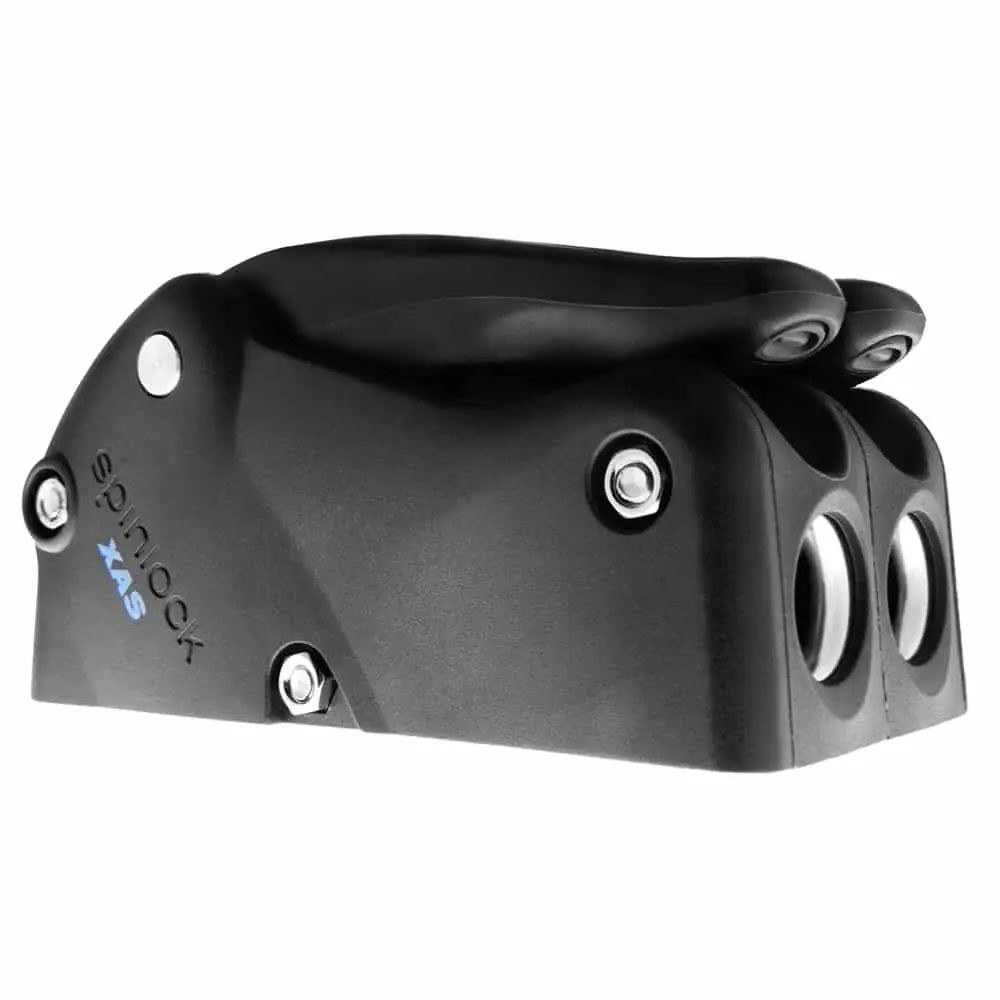

Spinlock XAS Power Clutch
Universal multi role clutch with excellent performance across a wide range of rope diameters. Ideal for racing yachts up to 27’ and cruising yachts up to 35’ and for control lines on larger yachts.
Available in single, double and triple versions for lines from 06-12mm and 04-08mm.
A side mounting kit is available for side mounting on either the cockpit coaming or mast.
Features and Benefits:
- Effortless release
- Line friendly
- Single, double and triple versions
- Easily maintained and serviced

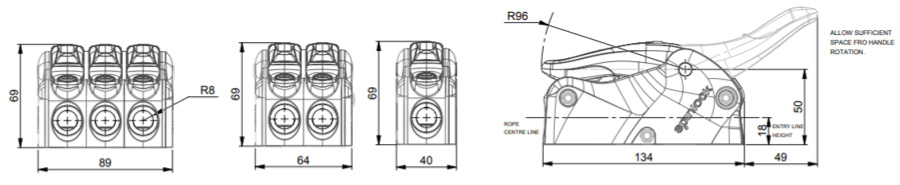

All dimensions in mm. See the Downloads tab for detailed installation template.
| Ref. | Model | Line diameter | Safe Working Load* | Fasteners | Weight |
| XAS0612/1 | Single | 6-12mm | 575 kg | 2 x M6 | 0.4 kg |
| XAS0612/2 | Double | 6-12mm | 575 kg | 4 x M6 | 0.5 kg |
| XAS0612/3 | Triple | 6-12mm | 575 kg | 6 x M6 | 0.7 kg |
| XAS0408/1 | Single | 4-8mm | 450 kg | 2 x M6 | 0.4 kg |
| XAS0408/2 | Double | 4-8mm | 450 kg | 4 x M6 | 0.5 kg |
| XAS0408/3 | Triple | 4-8mm | 450 kg | 6 x M6 | 0.7 kg |
* Max Working / Holding load depends on line diameter
| Product Code | Model | Availability | Price | |
|---|---|---|---|---|
|
SPINLOCK XAS0612/1
|
In stock
|
€82.95 (inc. VAT)
€68.55 (ex. VAT) |
|
|
SPINLOCK XAS0612/2
|
In stock
|
€157.95 (inc. VAT)
€130.54 (ex. VAT) |
|
|
SPINLOCK XAS0612/3
|
In stock
|
€235.95 (inc. VAT)
€195.00 (ex. VAT) |
|
|
SPINLOCK XAS0408/1
|
In stock
|
€82.95 (inc. VAT)
€68.55 (ex. VAT) |
|
|
SPINLOCK XAS0408/2
|
In stock
|
€157.95 (inc. VAT)
€130.54 (ex. VAT) |
|
|
SPINLOCK XAS0408/3
|
In stock
|
€235.95 (inc. VAT)
€195.00 (ex. VAT) |
