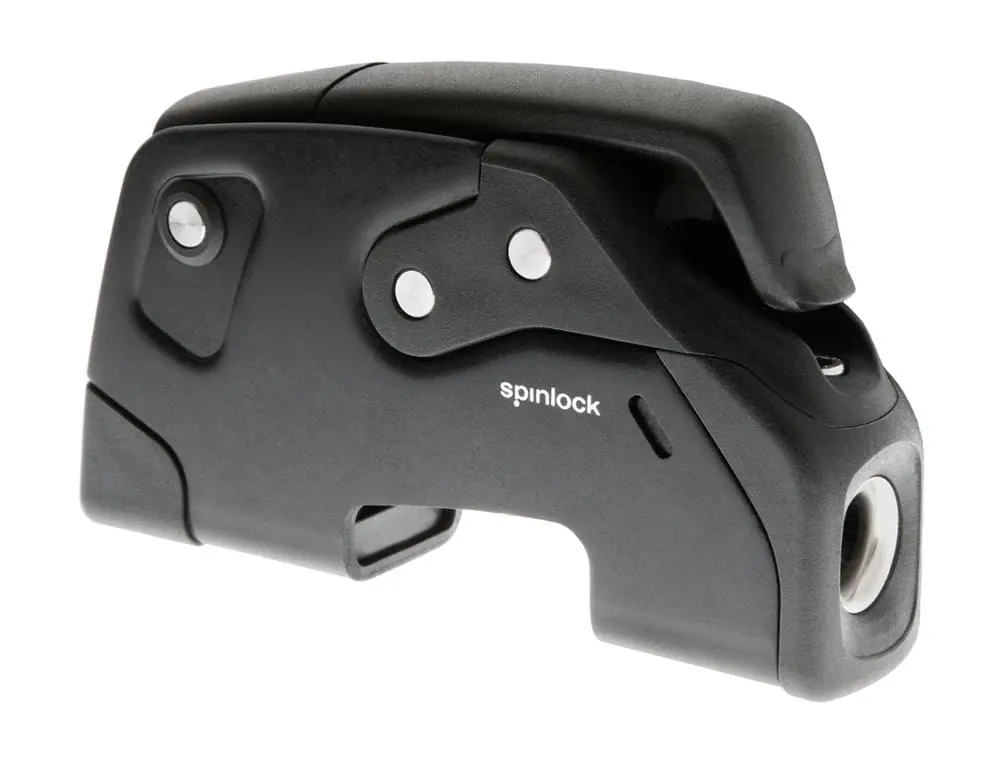

Spinlock XTR Reactor Power Clutch
Spinlock XTR Alloy / Composite Power Clutch with ground breaking Reactor Module.
Unlike other clutches in which the cam moves against the fixed base to grip the line, the XTR features the Reactor Module in which both the cam and the base move together dynamically clutching and releasing the line inside a self- contained unit. This gives significant advantages for controlling smaller diameter lines under load. What´s more, because the base and cam both work in reaction, clutching is quicker and release is smooth and effortless. The Spinlock XTR uses a new alloy / composite construction saving up to 35% of weight but without sacrificing holding power.
The Spinlock XTR has also been designed for simple servicing on board, undo a single screw and the whole XTR Reactor Module is withdrawn in one unit - for a quick wash and visual check.
Features:
- Superb mid load holding performance
- Unique Reactor Cam technology - linked base and cam react together in one self-contained module
- Reactive Technology - consistent line holding and smooth and progressive release
- Offers significantly more consistent holding on small diameter, modern performance lines
- Ultra lightweight alloy/composite construction
- Handle lift to ergonomic position for release
- Reactor cam module is easily removed, for on deck cleaning and servicing
- Side mount kits available
XTR has the identical footprint to XTS/XCS clutches for easy upgrade and replacement
Single XTR clutches can be mounted side by side to replace double and triple XTS/XCS clutches without drilling new holes. See the attachments tab for drilling template, dimensions and servicing instructions.
Available in black, white, blue and yellow finishes. Side mount kit allows easy installation on masts and coamings
All dimensions in mm
| Ref. | Model | Line Diameter | Safe Working Load | Fasteners | Weight |
| XTR0812 | Single | 8-12mm | 1000 kg | 2 x M8 (5/16") HEX (not included) | 0.34 kg |
| Product Code | Color | Availability | Price | |
|---|---|---|---|---|
|
SPINLOCK XTR0812/B
|
In stock
|
€130.95 (inc. VAT)
€108.22 (ex. VAT) |
|
|
SPINLOCK XTR0812/W
|
14 days
|
€130.95 (inc. VAT)
€108.22 (ex. VAT) |
|
|
SPINLOCK XTR0812/S
|
14 days
|
€130.95 (inc. VAT)
€108.22 (ex. VAT) |
