Spinlock XTS Power Clutch

Write a review
Spinlock
List price:€246.78 ex. VAT Price:€216.49 ex. VAT
Price: €261.95 (inc. VAT)
You save: €30.29 (12%)
Save 12%

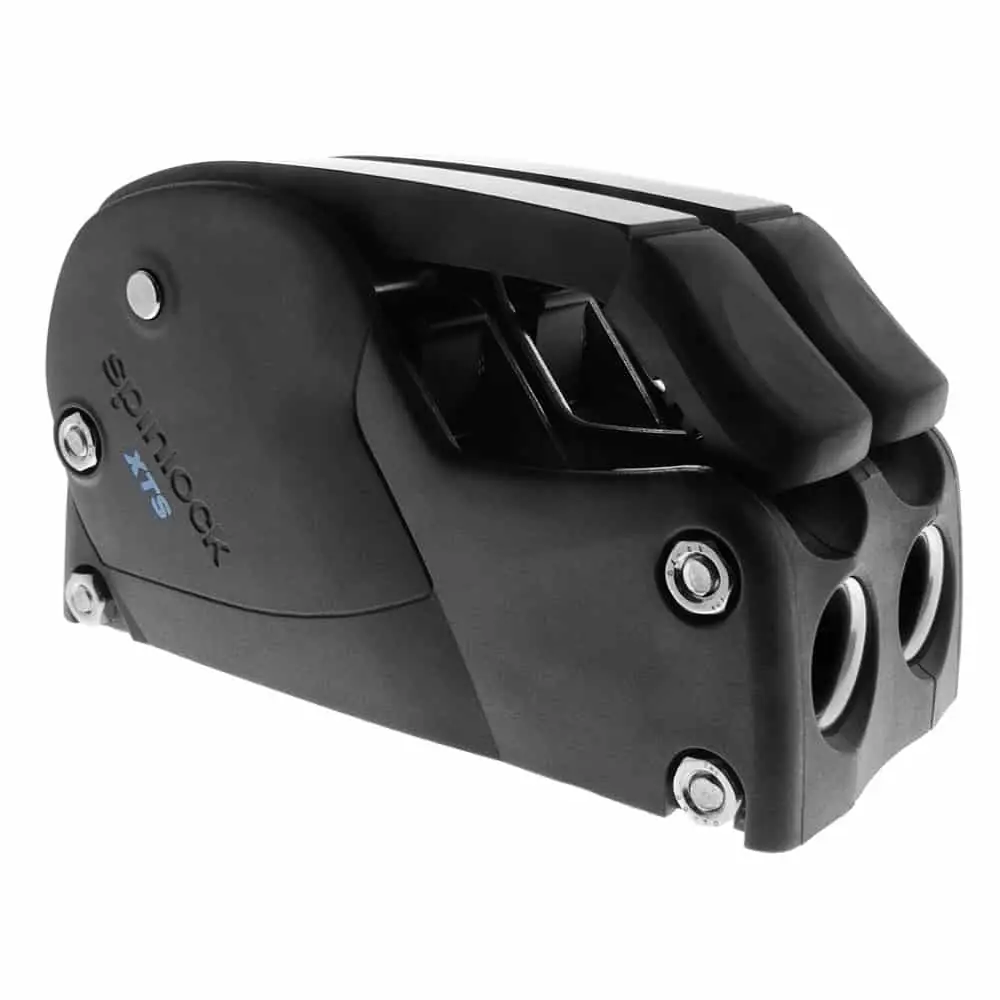

SPINLOCK XTS0814/2
Last one in stock
3 days (approx.)
+ −
Shipping Costs:
Check Your location
Free Shipping Promotion to some locations....see details.

Mid load Power clutch specified as standard on production yachts worldwide. An ideal choice for larger cruising and racing yachts both inshore and offshore. Excellent performance across a wide range of rope diameters. Available in two versions, 08-14 mm standard version and 06-08 mm version for smaller high performance lines. Optional CAM replacements for easy conversion to other line diameters without changing the clutch. Side mount kit available for side mounting the XTS to cockpit coamings, side decks or to the mast.

Spinlock XTS Power Clutch

Available in single, double and triple versions for 08-14mm lines and for 06-10mm lines.

Also available in quadruple and quintet versions for 08-14mm lines. Contact us for information.

Features and Benefits:

  • Extruded alloy handle with soft grip end
  • Side fairing accessory for side mounting version XTS-SMNT
  • Also available for smaller high performance lines
  • CAM upgrade options for alternative line sizes CAM-0608, CAM-0814
  • Easy access to fasteners

Spinlock XTS Powerclutch

All dimensions in mm. See the Downloads tab for detailed installation template.

Ref. Model Line diameter Safe Working Load* Fasteners Weight
XTS0814/1 Single 8-14 mm 1000 kg 2 x M8 0.51 kg
XTS0814/2 Double 8-14 mm 1000 kg 4 x M8 0.98 kg
XTS0814/3 Triple 8-14 mm 1000 kg 6 x M8 1.47 kg
XTS0610/1 Single 6-10 mm 700 kg 2 x M8 0.51 kg
XTS0610/2 Double 6-10 mm 700 kg 4 x M8 0.98 kg
XTS0610/3 Triple 6-10 mm 700 kg 6 x M8 1.47 kg

* Max Working / Holding load depends on line diameter

  Product Code Model Availability Price
Spinlock XTS Power Clutch - bluemarinestore.com
SPINLOCK XTS0814/1
Single 08-14 mm
In stock
€134.95 (inc. VAT)
€111.53 (ex. VAT)
Spinlock XTS Power Clutch - bluemarinestore.com
SPINLOCK XTS0814/2
Double 08-14 mm
In stock
€261.95 (inc. VAT)
€216.49 (ex. VAT)
Spinlock XTS Power Clutch - bluemarinestore.com
SPINLOCK XTS0814/3
Triple 08-14 mm
In stock
€369.00 (inc. VAT)
€304.96 (ex. VAT)
Spinlock XTS Power Clutch - bluemarinestore.com
SPINLOCK XTS0610/1
Single 06-10 mm
In stock
€134.95 (inc. VAT)
€111.53 (ex. VAT)
Spinlock XTS Power Clutch - bluemarinestore.com
SPINLOCK XTS0610/2
Double 06-10 mm
10 days
€261.95 (inc. VAT)
€216.49 (ex. VAT)
Spinlock XTS Power Clutch - bluemarinestore.com
SPINLOCK XTS0610/3
Triple 06-10 mm
10 days
€369.00 (inc. VAT)
€304.96 (ex. VAT)
Save 12%
Spinlock XTS Sidemount Kit - bluemarinestore.com
SPINLOCK XTS-SMNT
Spinlock XTS Sidemount Kit
€29.00 ex. VAT   €35.09
Spinlock XTS Sidemount kit allows the single XTS clutch to be mounted sideways on to spars, side decks and coamings. Kit includes fairing and...
In stock
+ −
Save 13%
Spinlock XTS & XCS Power Clutch Handle - bluemarinestore.com
SPINLOCK X-HDL
Spinlock XTS & XCS Power Clutch Handle
€20.32 ex. VAT   €24.59
Replacement handle for the XTS & XCS range of power clutches.
In stock
+ −
Save 12%
Spinlock XTS Replacement Side Panels - bluemarinestore.com
SPINLOCK XTS-SIDE
Spinlock XTS Replacement Side Panels
€24.21 ex. VAT   €29.29
Set of two replacement side panels for the XTS range of Powerclutches
In stock
+ −
Save 12%
Spinlock Replacement CAM 06 -10mm for the XTS & XCS - bluemarinestore.com
SPINLOCK CAM-0610
Spinlock Replacement CAM 06 -10mm for the XTS & XCS
€47.89 ex. VAT   €57.95
Replacement CAM for the Spinlock XTS and XCS series Powerclutches. Suitable for lines from 06-10mm in diameter, also suitable for older clutch models XT...
In stock
+ −
Save 12%
Spinlock Replacement CAM 08-14mm for the XTS & XCS - bluemarinestore.com
SPINLOCK CAM-0814
Spinlock Replacement CAM 08-14mm for the XTS & XCS
€47.89 ex. VAT   €57.95
Replacement CAM for the Spinlock XTS and XCS series Powerclutches. Suitable for lines from 06-08mm in diameter, also suitable for older clutch models XT...
7 days
+ −

Spinlock XTS Installation Template (1,610 Kb) - Download

Spinlock XTS Manual EN-FR (222 Kb) - Download
