Victron Energy Orion Isolated DC - DC Converter

List price:68.00 ex. VAT Price:54.50 ex. VAT
Price: 65.95 (inc. VAT)
You save: €13.50 (20%)
Save 20%
VICTRON ENERGY ORI121210110
Preorder
3 days (approx.)
+
Shipping Costs:
Isolated DC to DC converters with remote switching capability available for both 12v and 24v systems.

DC to DC converters can be used for multiple purposes on board including the following:

  • Powering 12V devices from a 24V system and vice versa.
  • Providing a stable DC output for sensitive equipment.
  • Reducing power system interference on radio and electronic equipment.
  • Charging a start battery.

Victron Energy Orion converters allow a wide voltage input and a stable user adjustable output making them ideal for use with sensitive DC equipment such as computers, displays, radio and electronic equipment and LEDs. Equipment such as computers are normally used with a mains power adaptor providing a constant stable DC output. These devices cannot be powered directly from on-board DC power due to the frequent large voltage changes typical onboard. A DC converter provides a stable DC output allowing their use on board. Isolated converters have no physical connection between input and output also allowing them to used to reduce electrical system interference typical on radio and electronic equipment. Orion DC converters can also be used as battery chargers for a start battery and can be connected in parallel to provide greater power.

Can be operated with a low power remote switch (not provided).

Features:

Model  Orion-Tr 12/12-9
(110W)

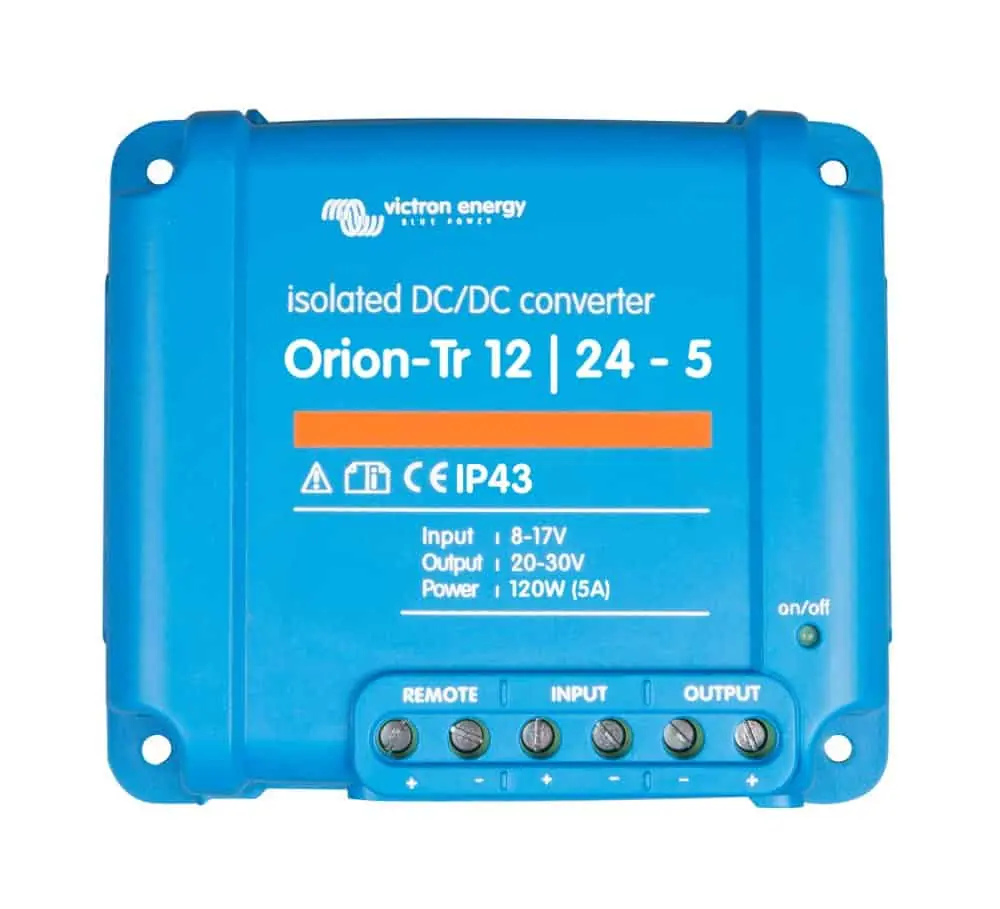

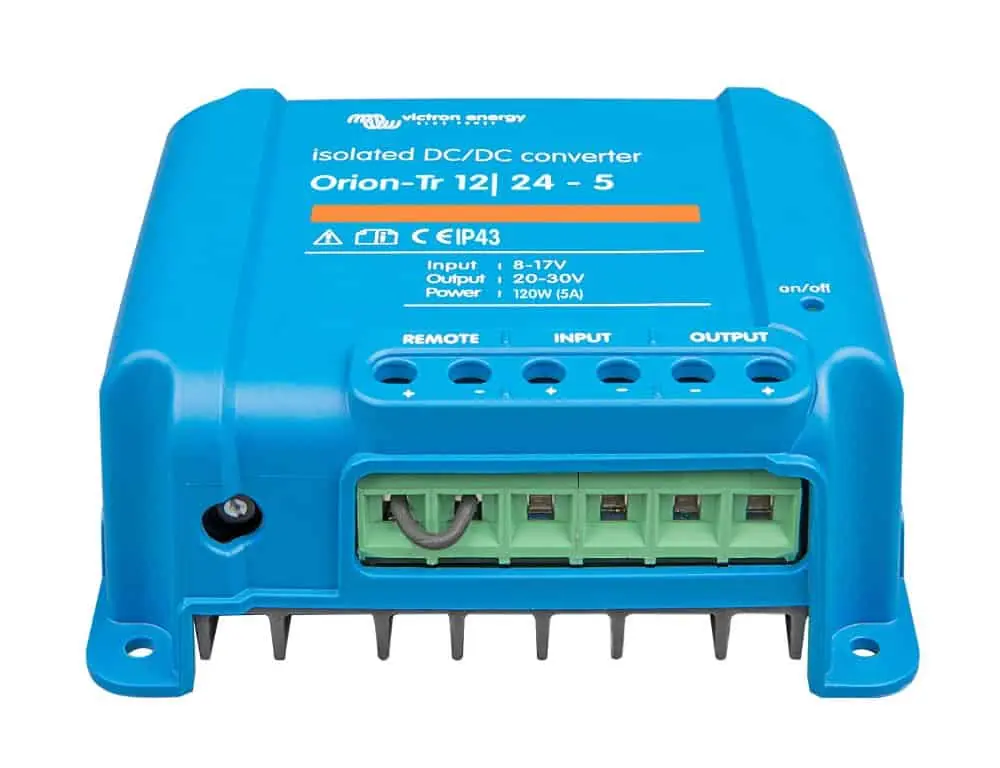

Orion-Tr 12/24-5
(120W)
Orion-Tr 24/12-9
(110W)
Orion-Tr 24/24-5
(120W)
Ref. ORI121210110(R)  ORI122410110 ORI241210110(R) ORI242410110(R)
Input voltage range 8-17V 16-35V
Under voltage shut down 7V 14V
Nominal output voltage 12,2V 24,2V 12,2V 24,2V
Output voltage adjust range 10-15V 20-30V 10-15V 20-30V
Output voltage tolerance +/- 0,2V
Cont. output current at nominal output voltage and 25°C 9A 5A 9A 5A
Maximum output current (10 s) at nominal output voltage 12.5A 6,3A 12.5A 6,3A
Maximum cable cross-section 6 mm² AWG10
Weight 0,42 kg
Dimensions h x w x d 100 x 113 x 47 mm
  Code Model Availability Price
Victron Energy Orion Isolated DC - DC Converter - bluemarinestore.com
VICTRON ENERGY ORI121210110
Orion-Tr 12/12-9 (110W)
3 days
65.95 (inc. VAT)
54.50 (ex. VAT)
Victron Energy Orion Isolated DC - DC Converter - bluemarinestore.com
VICTRON ENERGY ORI122410110
Orion-Tr 12/24-5 (120W)
In stock
65.95 (inc. VAT)
54.50 (ex. VAT)
Victron Energy Orion Isolated DC - DC Converter - bluemarinestore.com
VICTRON ENERGY ORI241210110
Orion-Tr 24/12-9 (110W)
In stock
65.95 (inc. VAT)
54.50 (ex. VAT)
Victron Energy Orion Isolated DC - DC Converter - bluemarinestore.com
VICTRON ENERGY ORI242410110
Orion-Tr 24/24-5 (120W)
3 days
65.95 (inc. VAT)
54.50 (ex. VAT)

Datasheet-Orion-Tr-DC-DC-Converters-Isolated-250W-EN (86 Kb) - Download

 Manual-Orion-Tr-isolated-DC-DC-Converters-EN-FR-NL-ES-IT-DE (85 Kb) - Download
