The SmartShunt IP65 is a water-resistant all-in-one battery monitor, only without a display. Your phone acts as the display. The SmartShunt can also be used a as DC meter.

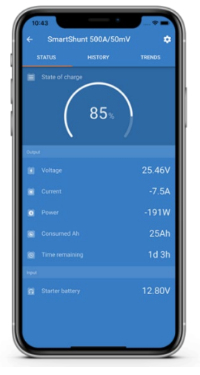

The SmartShunt combines a battery shunt with both Victron VE.Direct and bluetooth connectivity allowing either connection to a Victron GX device or to your phone or tablet. With the free VictronConnect app, your phone becomes your battery monitor allowing easy monitoring of battery parameters such as state of charge, time to go, historical information and much more. Built in alarms can be configured for early detection of problems. Thanks to the integrated bluetooth connectivity, the SmartShunt can also be used with other devices such as a Raspberry Pi and SignalK.
The SmartShunt is a good alternative to a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt can alternatively be used as a DC meter, which allows monitoring of a specific device or circuit, particularly useful for monitoring solar power or fridge/freezers etc.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and an additional connector that can be used for either:
- monitoring a second battery
- battery midpoint monitoring
- temperature sensor (ASS000100000 temperature sensor not included)

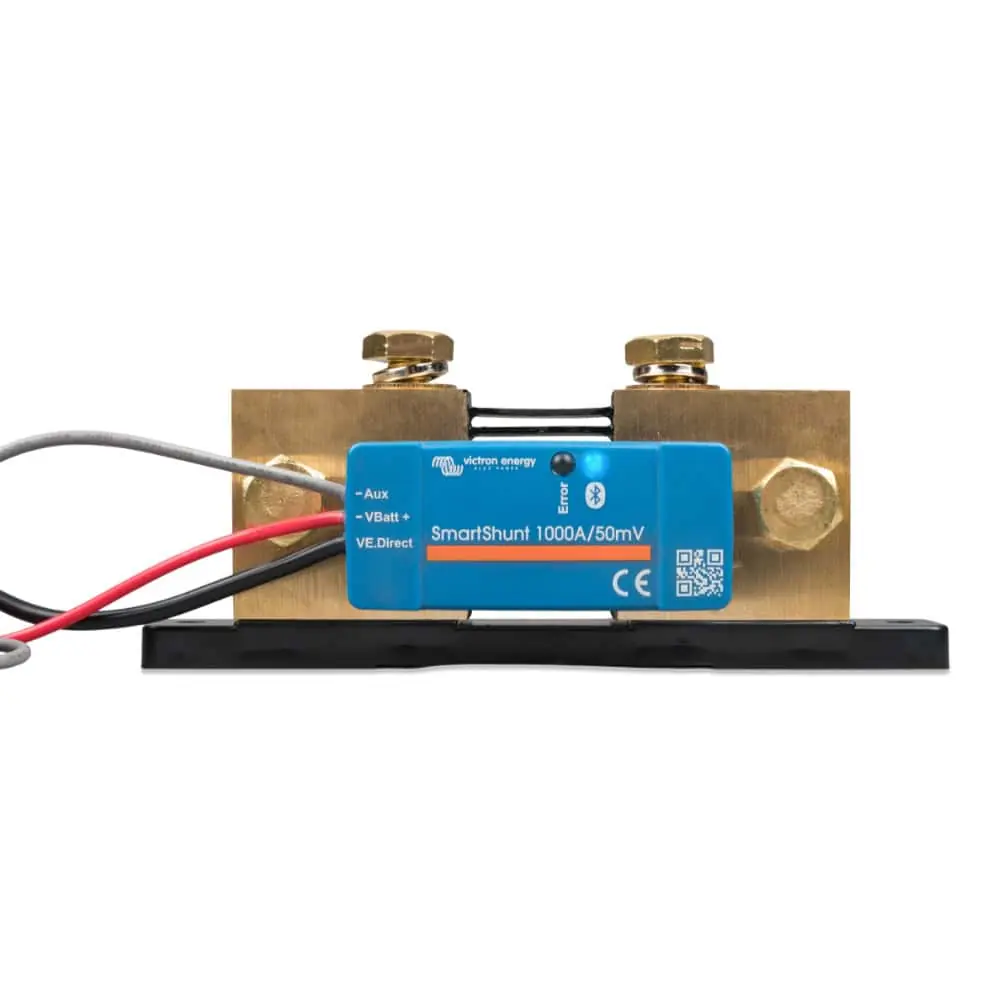

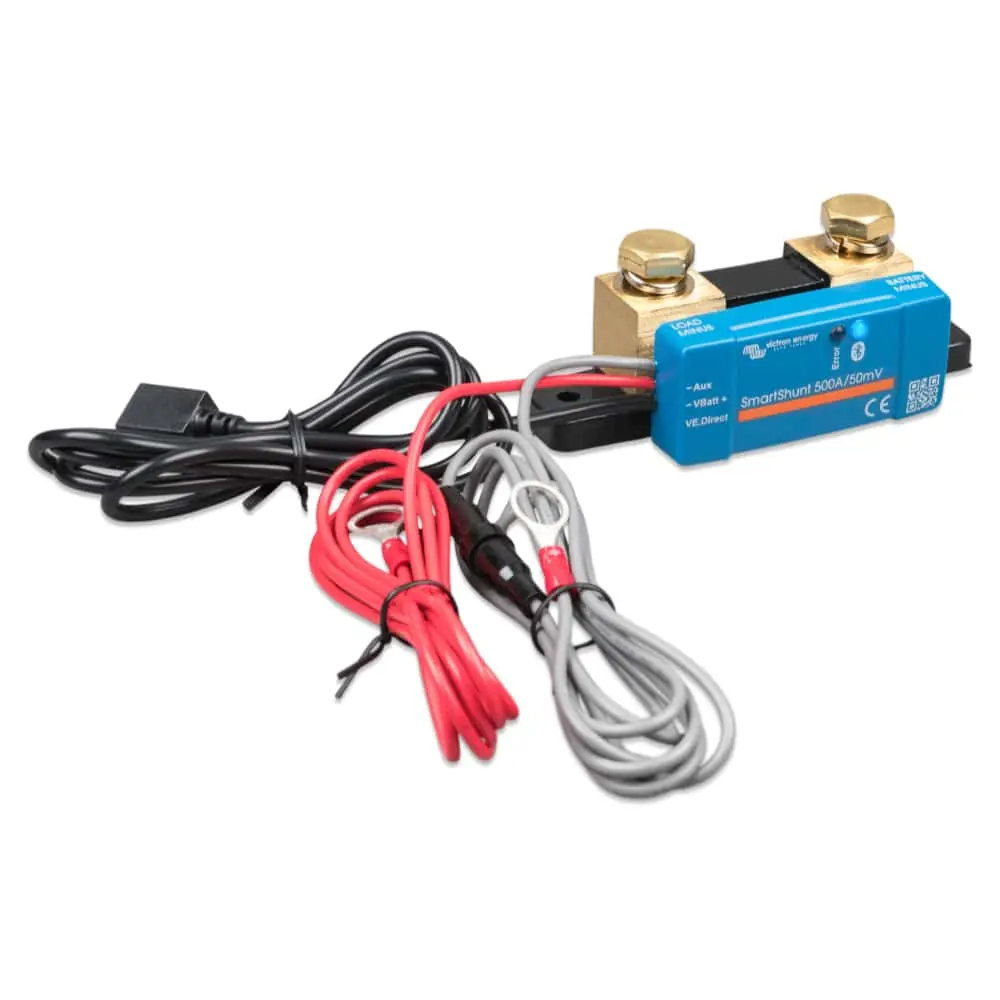

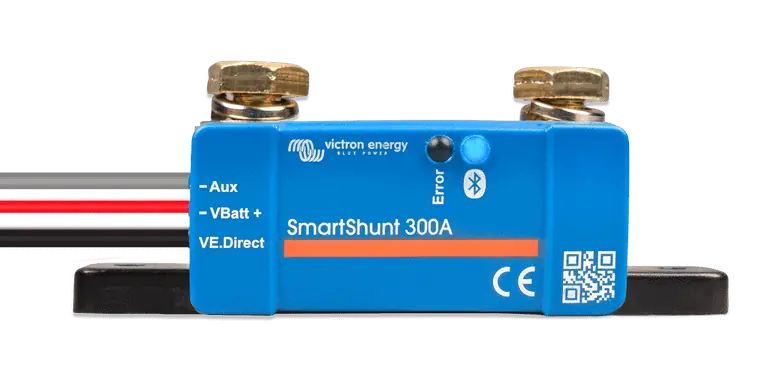

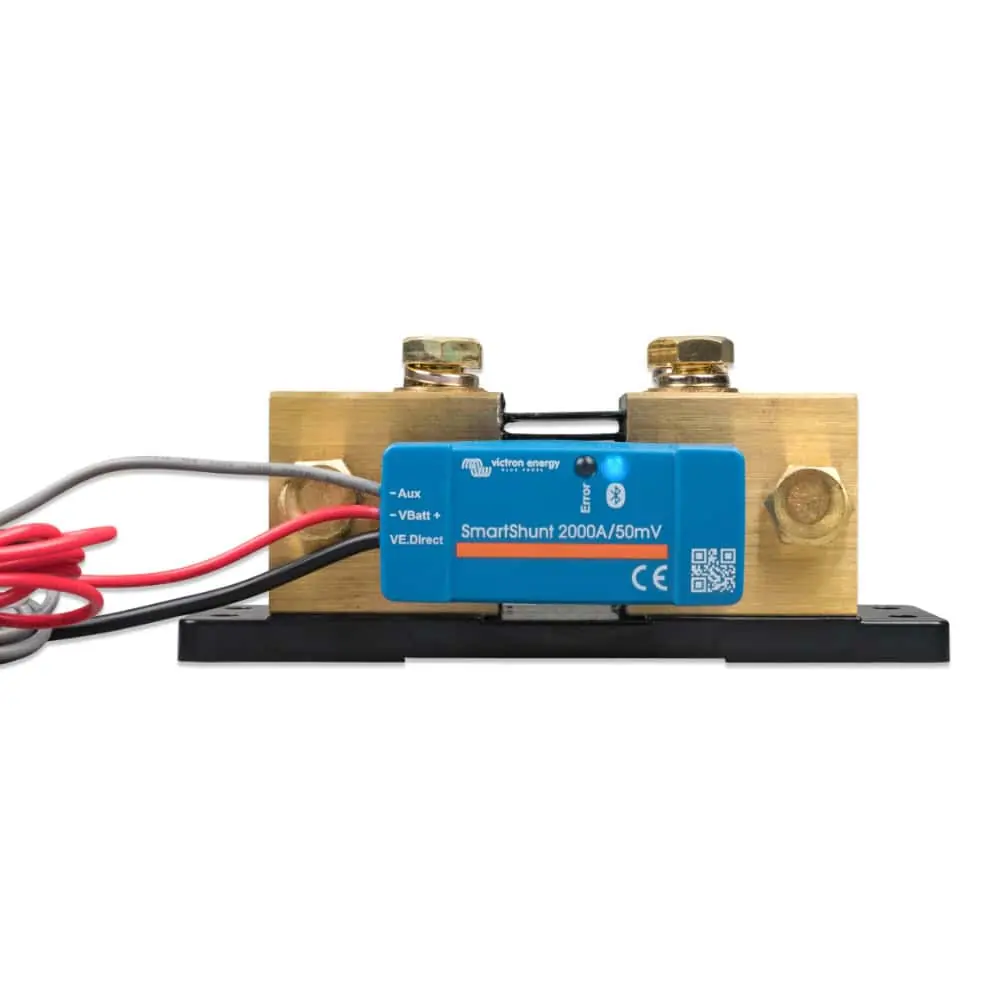

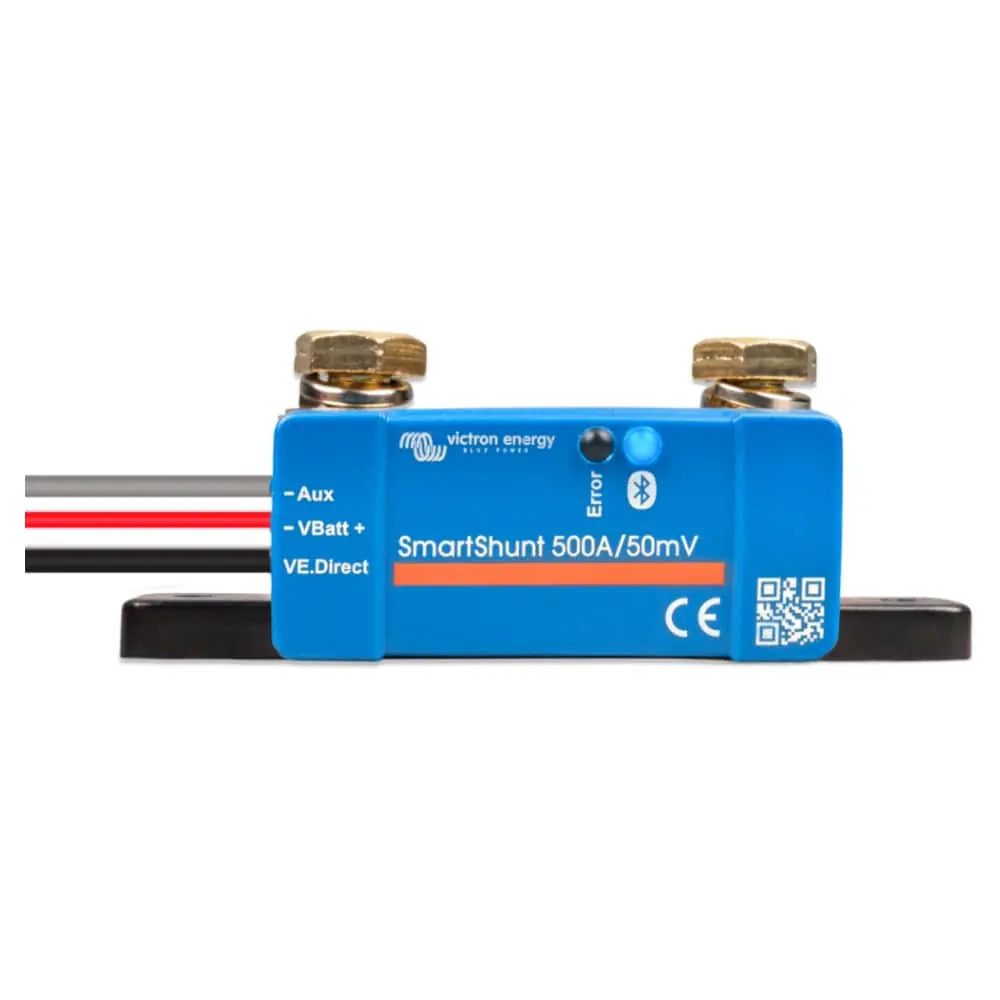

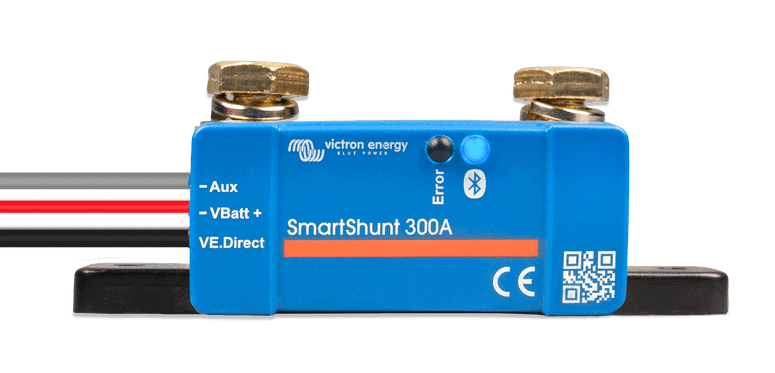

Available in 300 A, 500 A, 1000 A and 2000 A models.
Model | Ref. | Voltage | Battey Connector | Dimensions mm |
300 A / 50 mV | SHU065130050 | 6.5 - 70 VDC | M8 | 44 x 120 x 38 |
500 A / 50 mV | SHU050150050 | M10 | 46 x 120 x 54 | |
1000 A / 50 mV | SHU050210050 | 68 x 168 x 75 | ||
2000 A / 50 mV | SHU050220050 | 68 x 168 x 100 |
Code | SmartShunt | Availability | Price | |
---|---|---|---|---|
VICTRON ENERGY SHU065130050
|
7 days
|
€75.95 (inc. VAT)
€62.77 (ex. VAT) |
||
VICTRON ENERGY SHU065150050
|
In stock
|
€103.95 (inc. VAT)
€85.91 (ex. VAT) |
||
VICTRON ENERGY SHU065210050
|
In stock
|
€169.94 (inc. VAT)
€140.45 (ex. VAT) |
||
VICTRON ENERGY SHU065220050
|
7 days
|
€229.00 (inc. VAT)
€189.26 (ex. VAT) |
