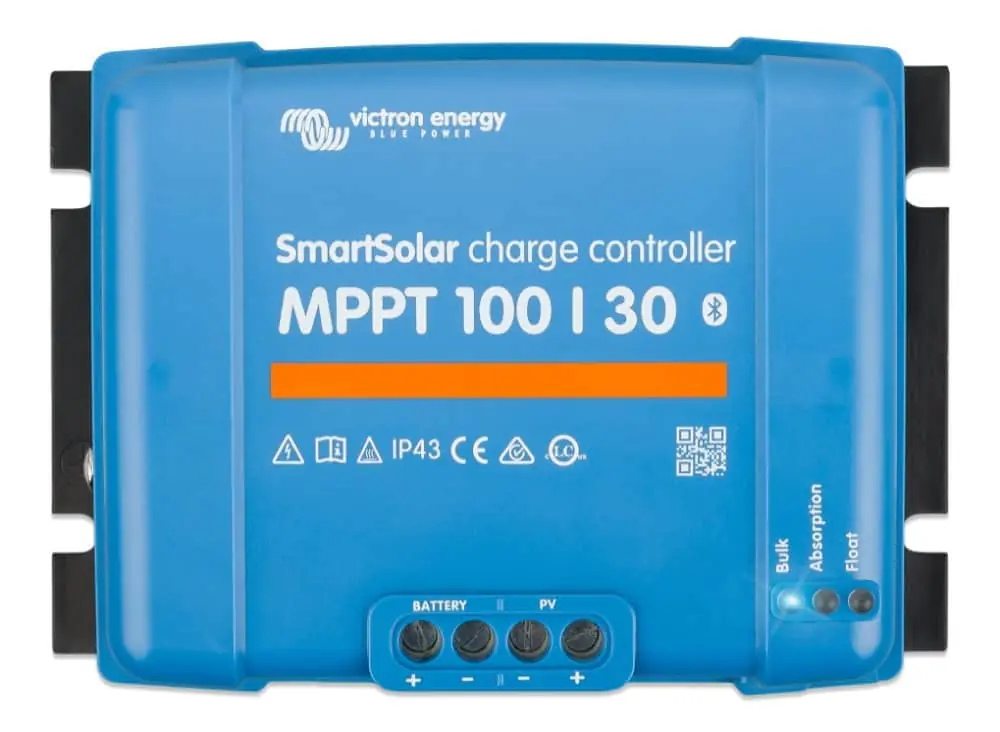

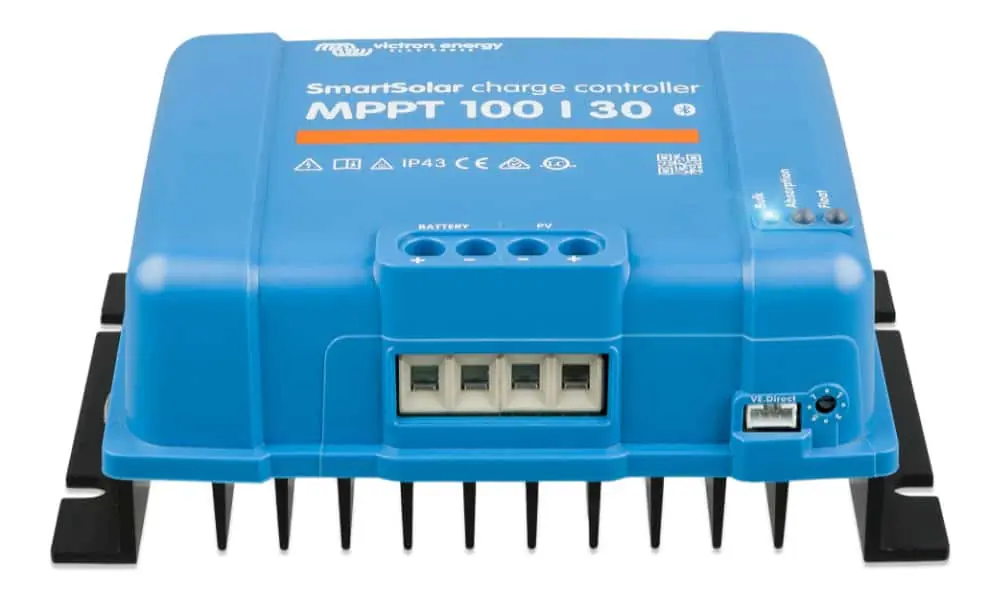

Victron Energy SmartSolar MPPT 100 Series Solar Regulators
MPPT Smart solar regulator from Victron Energy with up to 50 amps output for larger installations.
Bluetooth Smart built-in - allows wireless set-up, monitoring and control as well as compatibility with Bluetooth sensing devices such as the Smart Battery Sense.
Available in 30 Amp and 50 amp versions.
Ultra-fast Maximum Power Point Tracking (MPPT) - produces up to 30% more power compared to a PWM controller and up to 10% more power compared to slower MPPT controllers especially during cloudy days and fast changing conditions, when light intensity is changing continuously.
Outstanding conversion efficiency - no cooling fan to reduce output allows maximum efficiency to exceed 98% with full output current up to 40°C
Flexible charge algorithm - a built in rotary switch allows easy selection of the eight pre-programmed charging algorithms. The charge settings are also fully programmable allowing optimum charging for almost any installation.
Extensive electronic protection - fail safe installation and peace of mind when left unattended with over-temperature protection and power derating when temperature is high as well PV short circuit protection, PV reverse polarity protection and PV reverse current protection.
Built in temperature sensor - a simple solution to avoid running a battery temperature sensor. The sensor compensates absorption and float charge voltage for temperature and further protects the battery bank.
Optional Bluetooth battery voltage and temperature sensing - the Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
VE.Direct cable compatible - For a wired data connection to a MPPT control panel, a Color Control GX, other GX products, PC or other devices.
Real-time data display options with Victron Connect - setup, configure and monitor all system parameters on Apple and Android smartphones, tablets, PC & MAC with the free Apps amd software. See the Victron Energy website for details. https://www.victronenergy.com/panel-systems-remote-monitoring/victronconnect
| SmartSolar 100 Series MPPT Regulators | SmartSolar MPPT 100/30 | SmartSolar MPPT 100/50 |
| Ref. | SCC110030210 | SCC110050210 |
| Battery Voltage | 12/24V Auto Select | |
| Max charge current | 30 Amps | 50 Amps |
| Max Solar Panel Power 12V Systems | 440W | 700W |
| Max Solar Panel Power 24V Systems | 880W | 1400W |
| Max Solar Panel Voltage OC | 100V | 100V |
| Max. Solar Panel current IC | 35 Amps | 60 Amps |
| Power Terminals | 16 mm² / AWG6 | |
| Dimensions | 130 x 186 x 70 mm | |
| Weight | 1.3 kg | |
| Product Code | SmartSolar 100 | Availability | Price | |
|---|---|---|---|---|
|
VICTRON ENERGY SCC110050210
|
In stock
|
€191.95 (inc. VAT)
€158.64 (ex. VAT) |
|
|
VICTRON ENERGY SCC110030210
|
In stock
|
€132.95 (inc. VAT)
€109.88 (ex. VAT) |
