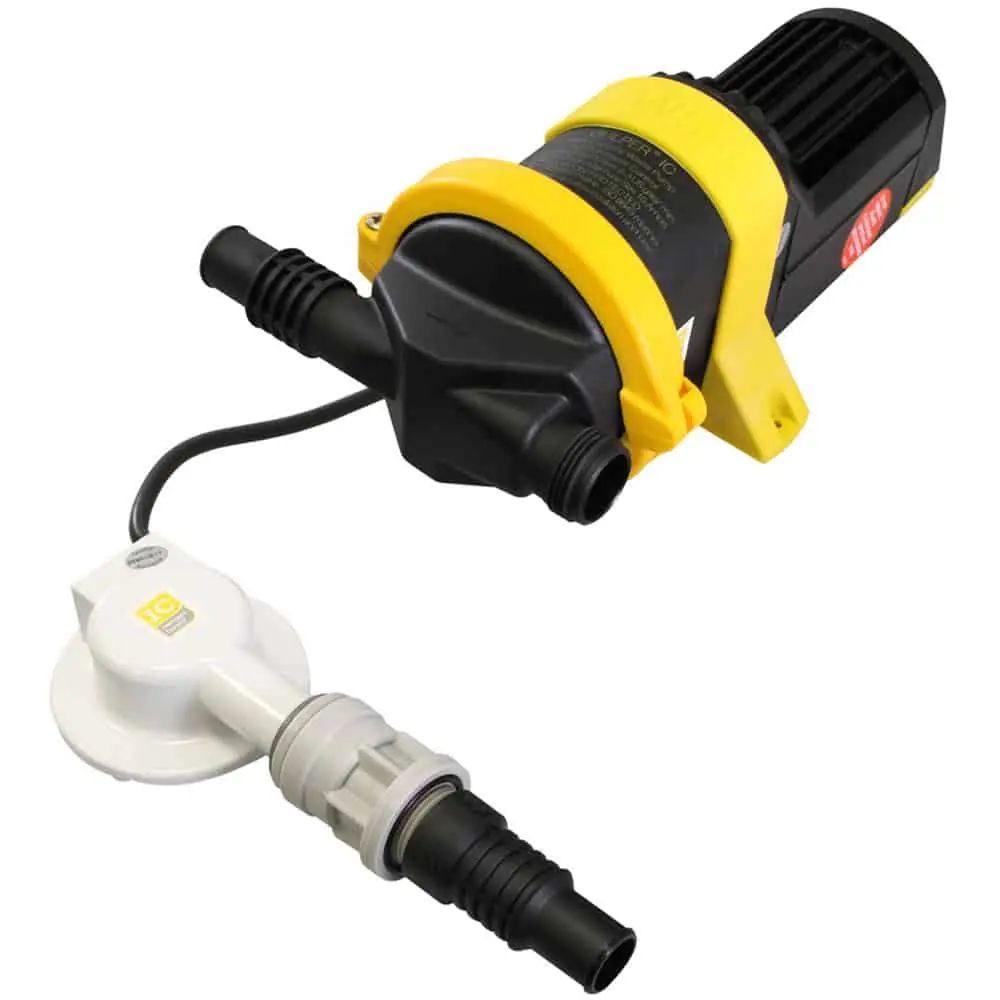

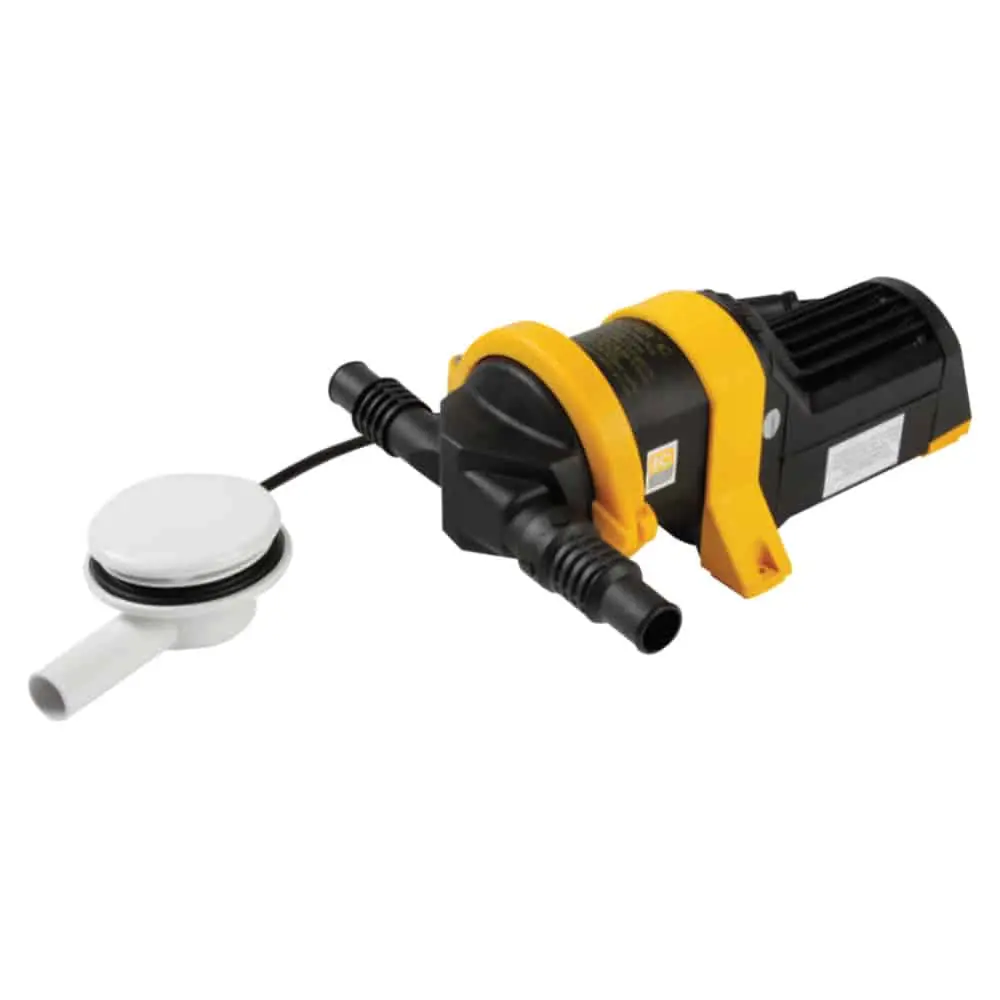

Whale Gulley IC Automatic Shower / Grey Water Pump
A new concept in shower / grey water pumps, the Whale Gulley IC system features an Intelligent Control high capacity Gulper IC pump combined with a Compact Gulley IC electronic sensor / single shower drain outlet. Both the pump and shower drain/ sensor are prewired with plug and play connectors. The Gulley IC system does not require a tank, when the shower drain detects water, the pump is activated automatically. A great solution for confined spaces, just replace the shower drain with the Compact Gulley IC shower drain and connect to the pump.
See the Whale Grey IC System for use with multiple shower drains.
Gulper® valve technology is built on more than a decade of market leading pump technology. The Gulper® IC uses a large diaphragm, non choke valves and a non return valve built in to the pump head. The Gulper® IC easily handles shower waste such as hair and gel without clogging even without a filter. This simple design allows trouble free service and easy maintenance. The Gulper® IC is designed to be remote mounted in a dry location up to 3 meters above the shower drain.

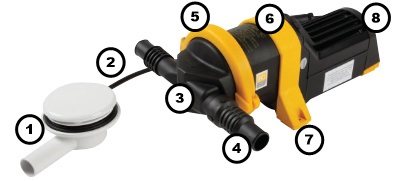

- Whale Compact Gulley IC electronic sensor / shower drain, no grey water tank required allowing installation in small spaces and no moving parts for ultimate reliability. The Compact Gulley IC electronic sensor has a low voltage 5 V and low power 6 mA power supply, the pump power supply is not routed through the sensor and eliminates switch failure from high currents. Features a Tricuspid non return valve to avoid water flowing back into the shower tray. Requires a 48 mm aperture for installation.
- Easy installation - The shower drain sensor includes 4 metres of cable with Deutsch® quick connectors for plug and play easy installation.
- Gulper® Valve Technology - no clogging even without a filter and the double outlet valve ensures continuous flow.
- Barbed hose connectors are suitable for 19 mm (¾") or 25 mm (1") flexible hose and features a built in Tricuspid non return valve
- Simple clamping ring design, the pump head can be rotated through 360° for easy installation and allows simple maintenance and service.
- Securing strap ensures pump remains in place even in harsh marine conditions.
- Three feet design only needs 3 installation screws.
- Robust aluminium and glass-filled Nylon housing for maximum corrosion resistance and reliability.
Features:
- Easy installation, no tank required, pre wired plug and play kit
- Automatic control - no manual switch, automatically turns on/off as required
- Soft start - protects the pump for long life
- Low current controlled switching - no switch failure from high currents
- Fast drainage - high capacity up to 19 ltrs l/min
- Optimal drainage - built in Time delay
- Runs dry without damage and can pump a mixture of air and water
- Easy maintenance non choke valves, no filter to block or clean
- Self-priming up to 3 m (10 ft)
- Double outlet valve ensures continuous flow
- Multi directional head - for ease of installation
- Low power consumption
Available for 12 V or 24 V systems.
| Model | Ref. | Voltage |
Recommended Fuse |
Max. Suction Lift |
Max. Discharge Head |
Max. Combined Lift + Discharge |
Performance l/pm - Amps |
Weight kg |
| Gulley IC | SG8284 | 12 V | 10 Amps | 3 m | 3 m | 4 m | 17.4 - 7.5* | 1.6 |
| Gulley IC | SG8484 | 24 V | 5 Amps | 3 m | 3 m | 4 m | 17.4 - 3.25* | 1.6 |
* measured with 1 m suction lift and 1 m discharge head.
For discharge outlets below the waterline a vented anti-syphon loop should be incorporated in the system.
| Product Code | Gulley IC | Availability | Price | |
|---|---|---|---|---|
|
WHALE SG8284
|
In stock
|
€448.99 (inc. VAT)
€371.07 (ex. VAT) |
|
|
WHALE SG8484
|
10 days
|
€448.99 (inc. VAT)
€371.07 (ex. VAT) |
