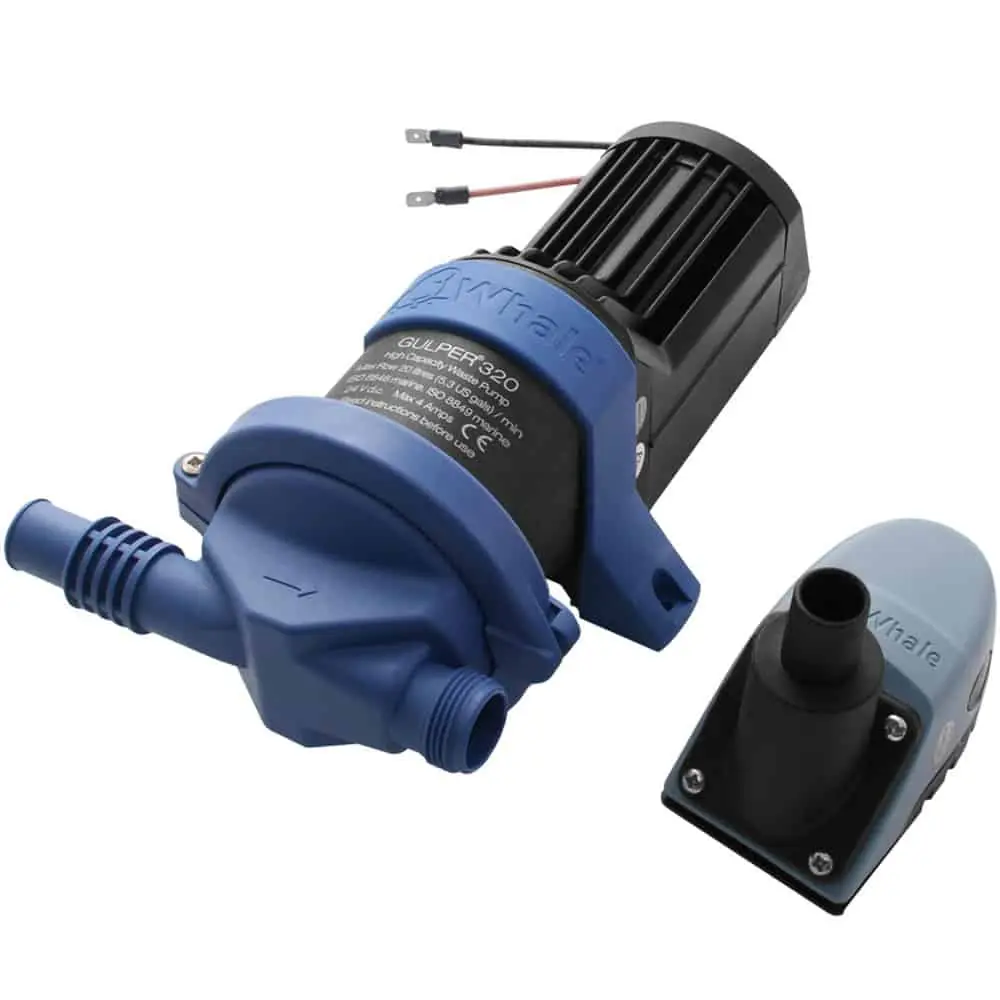

Whale Gulper® 320 Bilge Pump + Strainer

Price:207.40 ex. VAT
Price: 250.95 (inc. VAT)
WHALE BP2052
2 in stock
10 days (approx.)
+
Shipping Costs:

Gulper valve technology is built on more than a decade of market leading pump technology. The Whale Gulper uses a large diaphragm, non choke valves and a non return valve built in to the pump head. The Gulper 320 is suitable as a primary bilge pump on boats up
to 12m in length or secondary bilge pump in accordance with ISO8849 as well as a high capacity grey water/waste water pump. The simple design allows trouble free service and easy maintenance and as with all Whale diaphragm pumps, service kits and spare parts are readily available. The Gulper 320 is designed to be remote mounted in a dry location up to 3 meters above the suction point.

Whale SB3422 Strainer



Includes a Whale SB3422 multi-directional port strainer.

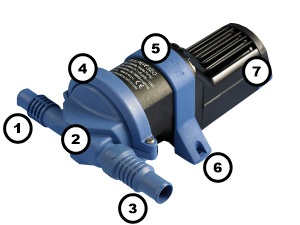

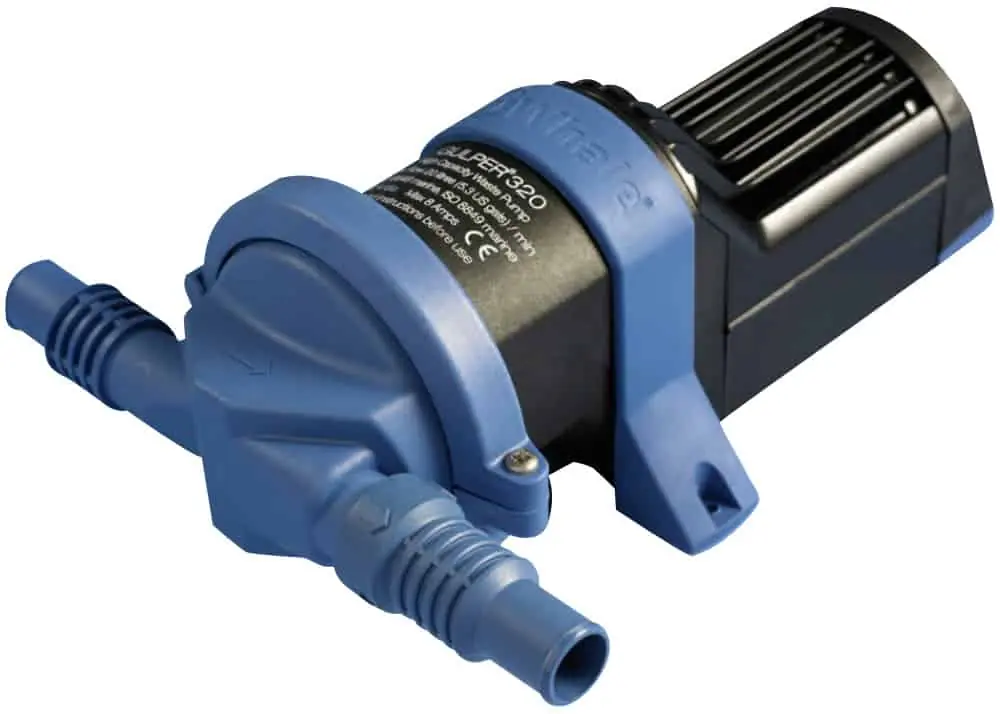

Whale Gulper 320 Bilge Pump

  1. Gulper Valve Technology - No clogging even without a filter.
  2. Non chocking valves and double outlet valve ensures continuous flow
  3. Barbed hose connectors are suitable for 19 mm (¾") or 25 mm (1") flexible hose and the outlet features a built in Tricuspid non return valve.
  4. New Ezi-clamp clamping ring design with a single securing screw. The pump head can be rotated through 360° for easy installation and allows simple maintenance and service.
  5. Securing strap ensures pump remains in place even in harsh marine conditions.
  6. Three feet design only needs 3 installation screws.
  7. Robust aluminium and glass-filled Nylon housing for maximum corrosion resistance and reliability.

Features:

  • Runs dry without damage and can pump a mixture of air and water
  • Easy maintenance non choke valves, no filter to block or clean
  • Self-priming up to 3 m (10 ft)
  • Easy to install in confined spaces
  • Double outlet valve ensures continuous flow
  • Multi directional head - for ease of installation
  • Low power consumption


 Available for 12 V or 24 V systems.

Model Ref. Voltage

Recommended
Fuse
Max. Suction
Lift
Max. Discharge
Head
Max. Combined
Lift + Discharge
Performance
l/pm - Amps
Weight
kg
Gulper 320 BP2052 12 V 10 Amps 3 m 3 m 4 m 17.4 - 7.5* 1.6
Gulper 320 BP2054 24 V 5 Amps 3 m 3 m 4 m 17.4 - 3.25* 1.6

 * measured with 1 m suction lift and 1 m discharge head.

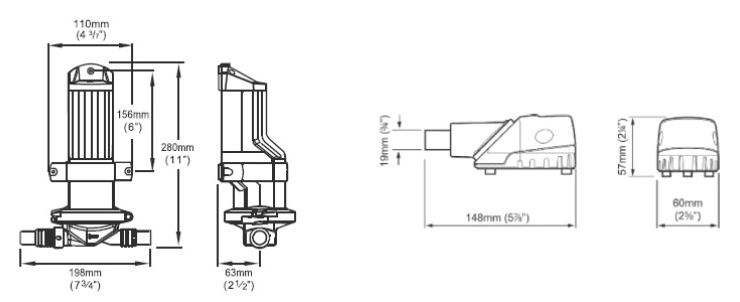

Whale Gulper 320 Dimensions

  Product Code Gulper® 320 Availability Price
Whale Gulper® 320 Bilge Pump + Strainer - bluemarinestore.com
WHALE BP2052
BP2052 12 V
In stock
250.95 (inc. VAT)
207.40 (ex. VAT)
Whale Gulper® 320 Bilge Pump + Strainer - bluemarinestore.com
WHALE BP2054
BP2054 24 V
In stock
269.95 (inc. VAT)
223.10 (ex. VAT)
WHALE AK2050
26.11 ex. VAT   31.59
Original replacement parts and service kits for the  Whale Gulper® 220 Shower / Grey Water Pump,  Whale Gulper® 320 Bilge Pump, Whale Gulper IC pumps and...
In stock


WHALE AK1550
24.62 ex. VAT   29.79
Original replacement parts and service kits for the  Whale Gulper® 220 Shower / Grey Water Pump,  Whale Gulper® 320 Bilge Pump, Whale Gulper IC pumps and...
In stock


JCS HI-GRIP SS304 12
1.73 ex. VAT   2.09
JCS
HI-GRIP STAINLESS hose clips (hose clamps) by JCS High-Torque Ltd. Made entirely from 18/8 - AIS304 marine quality stainless steel and are ideal for salt...
In stock


ANCOR 1217
2.64 ex. VAT   3.19
Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46)...
In stock


HILLTOP DWA-3/1
1.07 ex. VAT   1.29
Adhesive Lined Dual Wall 3:1 Polyolefin heat shrink tubing High quality irradiation cross-linked Polyolefin, UL Approved and RoHS Compliant. Excellent...
In stock


Whale Gulper 320 Installation Manual EN FR IT ES SE DE (252 Kb) - Download
