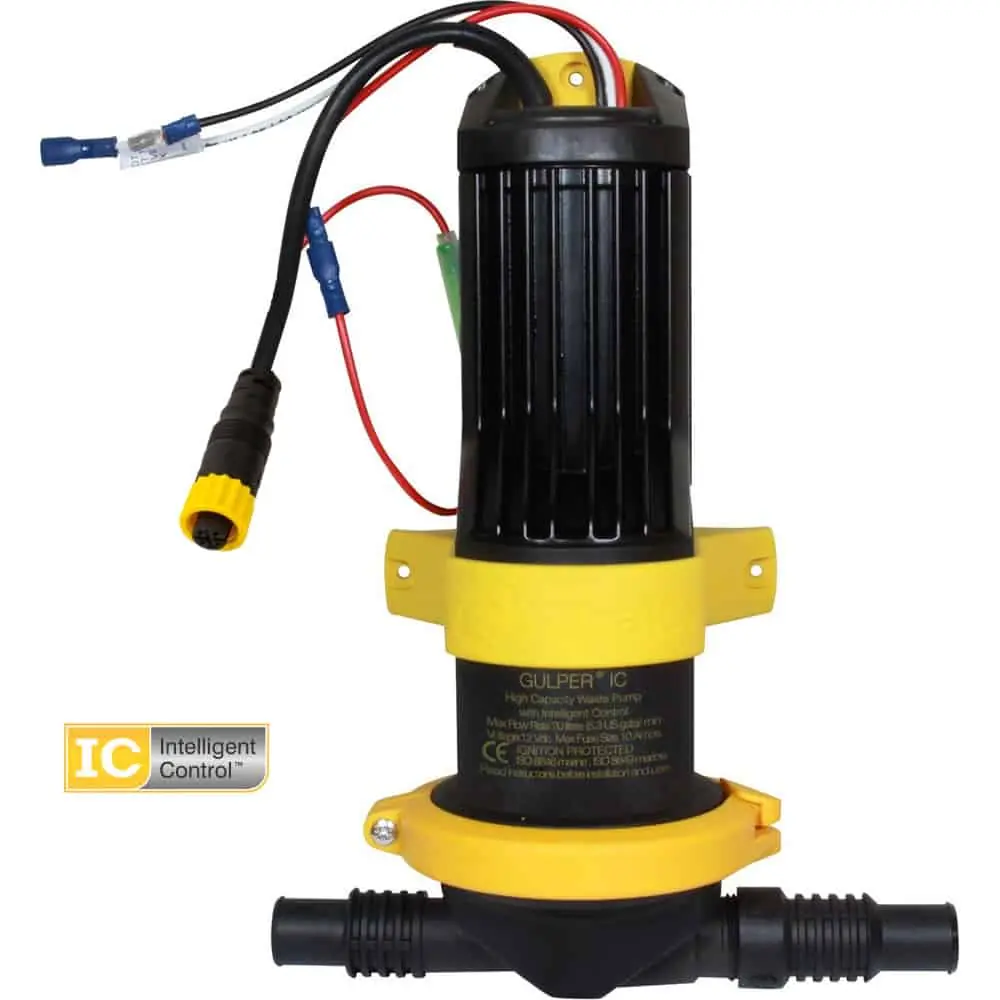

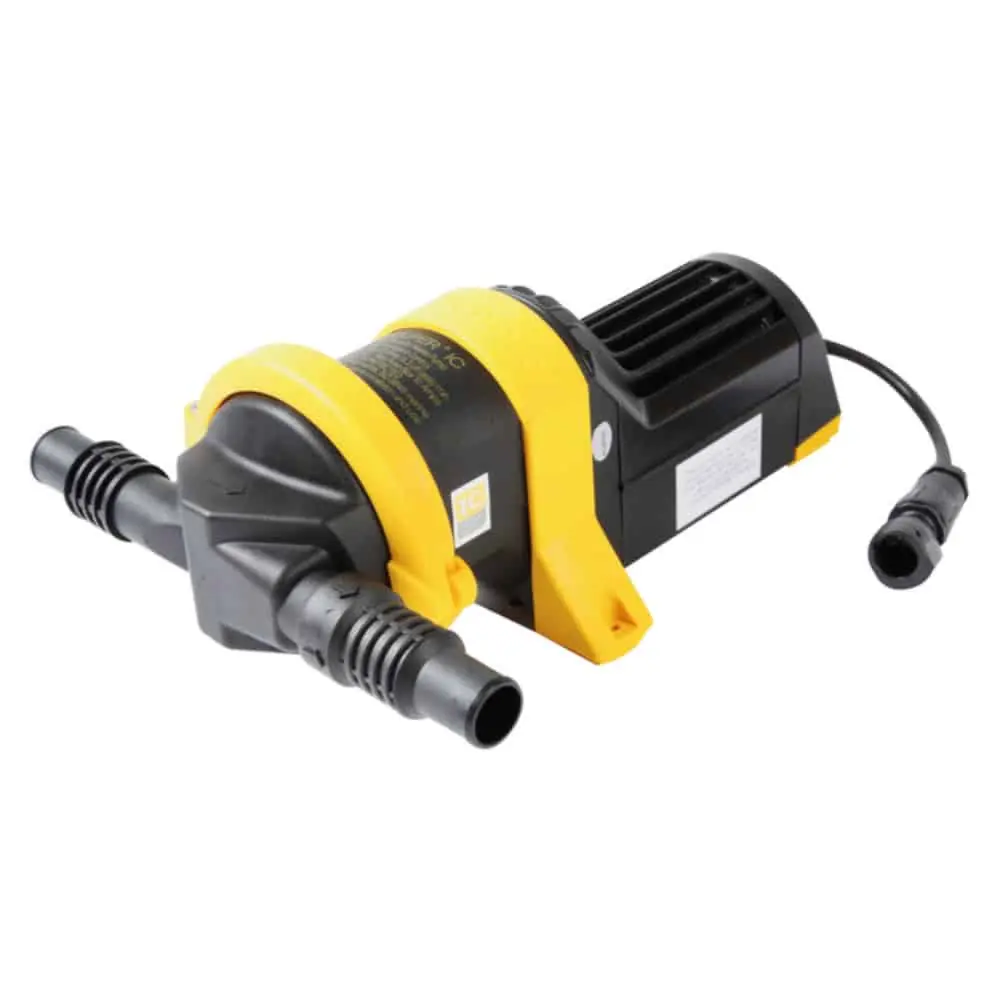

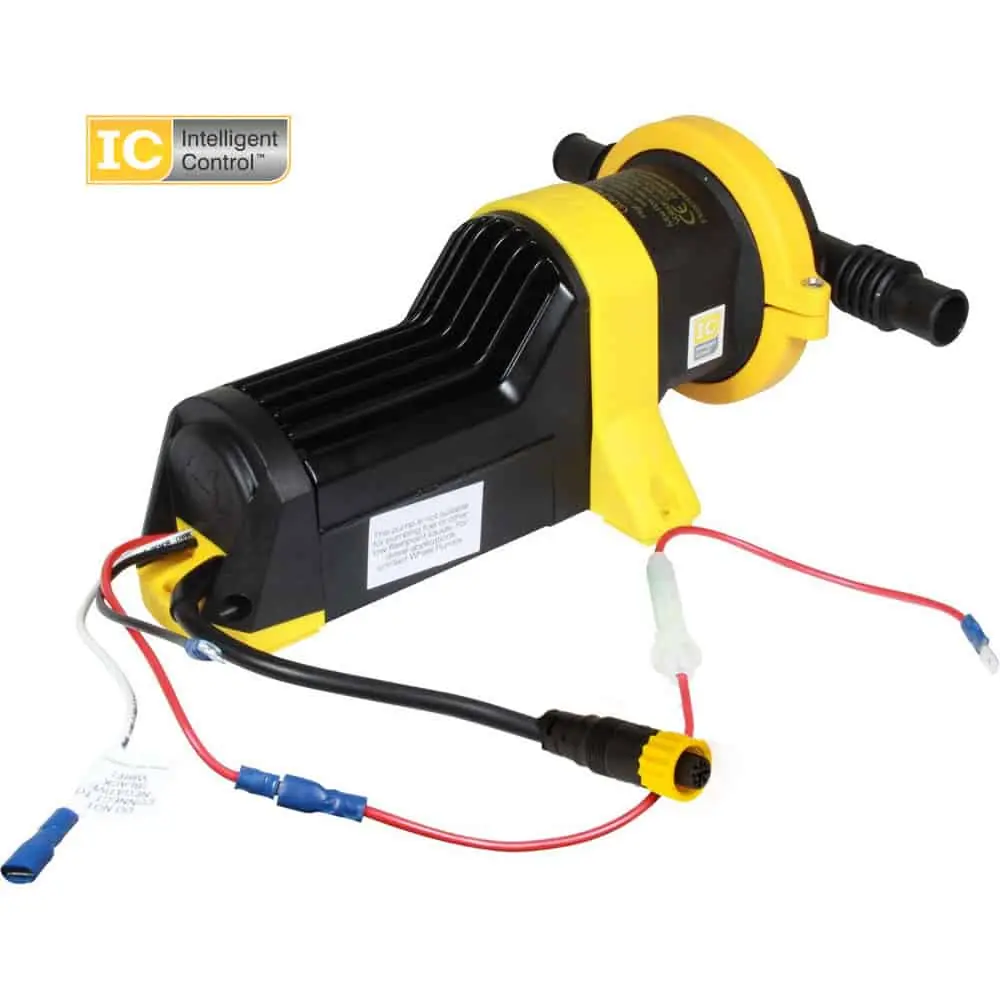

Whale Gulper® 320 IC High Capacity Replacement Pump

Price:271.90 ex. VAT
Price: 329.00 (inc. VAT)
WHALE BP2082B
Last one in stock
10 days (approx.)
+
Shipping Costs:

The Gulper 320 IC is a drop in replacement pump for any of the following systems. It can also be combined with any of the Gulper IC electronic sensor accessories such as electronic shower drains and bilge strainers. Now includes the new Mk3 Deutsch® Connector (yellow/black).

A new concept in shower / grey water & bilge pumps, the Whale Gulper 320 IC Intelligent Control high capacity pump has a separate prewired low voltage 5 V and low power 6 mA plug and play accessory connector compatible with any of the Gulper 320 IC accessories.

Gulper® valve technology is built on more than a decade of market leading pump technology. The Gulper® IC uses a large diaphragm, non choke valves and a non return valve built in to the pump head. The Gulper® IC easily handles shower waste such as hair and gel without clogging even without a filter. This simple design allows trouble free service and easy maintenance. The Gulper® IC is designed to be remote mounted in a dry location up to 3 meters above the suction point.

Whale Gulper IC Intelligent Control Pump

  1. Compatible any of the Gulper IC electronic sensor accessories (not included), no grey water tank required allowing installation in small spaces and no moving parts for ultimate reliability. The Gulper IC electronic sensors have a low voltage 5 V and low power 6 mA power supply, the pump power supply is not routed through the sensor and eliminates switch failure from high currents.
  2. Easy installation - Both the pump and new Gulper IC accessories are prewired with the new Mk3 Deutsch® Connector (yellow/black) for plug and play easy installation.
  3. Gulper® Valve Technology - no clogging even without a filter and the double outlet valve ensures continuous flow.
  4. Barbed hose connectors are suitable for 19 mm (¾") or 25 mm (1") flexible hose and features a built in Tricuspid non return valve
  5. Simple clamping ring design, the pump head can be rotated through 360° for easy installation and allows simple maintenance and service.
  6. Securing strap ensures pump remains in place even in harsh marine conditions.
  7. Three feet design only needs 3 installation screws.
  8. Robust aluminium and glass-filled Nylon housing for maximum corrosion resistance and reliability.

Features:

  • Easy installation, pre wired plug and play connector.
  • Automatic control - no manual switch, automatically turns on/off as required
  • Soft start - protects the pump for long life
  • Low current controlled switching - no switch failure from high currents
  • Fast drainage - high capacity up to 19 ltrs l/min
  • Optimal drainage - built in Time delay
  • Runs dry without damage and can pump a mixture of air and water
  • Easy maintenance non choke valves, no filter to block or clean
  • Self-priming up to 3 m (10 ft)
  • Double outlet valve ensures continuous flow
  • Multi directional head - for ease of installation
  • Low power consumption


Available for 12 V or 24 V systems.

Model Ref. Voltage

Recommended
Fuse
Max. Suction
Lift
Max. Discharge
Head
Max. Combined
Lift + Discharge
Performance
l/pm - Amps
Weight
kg
Gulper IC BP2082B 12 V 10 Amps 3 m 3 m 4 m 17.4 - 7.5* 1.6
Gulper IC BP2084B 24 V 5 Amps 3 m 3 m 4 m 17.4 - 3.25* 1.6

 * measured with 1 m suction lift and 1 m discharge head.


Whale Gulper 320 Dimensions



For discharge outlets below the waterline a vented anti-syphon loop should be incorporated in the system.

  Product Code Gulper® 320 IC Availability Price
Whale Gulper® 320 IC High Capacity Replacement Pump - bluemarinestore.com
WHALE BP2082B
BP2082B - 12 V
In stock
329.00 (inc. VAT)
271.90 (ex. VAT)
Whale Gulper® 320 IC High Capacity Replacement Pump - bluemarinestore.com
WHALE BP2084B
BP2084B - 24 V
In stock
309.00 (inc. VAT)
255.37 (ex. VAT)
WHALE AK1550
24.62 ex. VAT   29.79
Original replacement parts and service kits for the  Whale Gulper® 220 Shower / Grey Water Pump,  Whale Gulper® 320 Bilge Pump, Whale Gulper IC pumps and...
In stock


JCS HI-GRIP SS304 12
1.73 ex. VAT   2.09
JCS
HI-GRIP STAINLESS hose clips (hose clamps) by JCS High-Torque Ltd. Made entirely from 18/8 - AIS304 marine quality stainless steel and are ideal for salt...
In stock


ANCOR 1217
2.64 ex. VAT   3.19
Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46)...
In stock


HILLTOP DWA-3/1
1.07 ex. VAT   1.29
Adhesive Lined Dual Wall 3:1 Polyolefin heat shrink tubing High quality irradiation cross-linked Polyolefin, UL Approved and RoHS Compliant. Excellent...
In stock


Whale Gulley IC Manual EN FR DE IT ES SE FI (843 Kb) - Download
