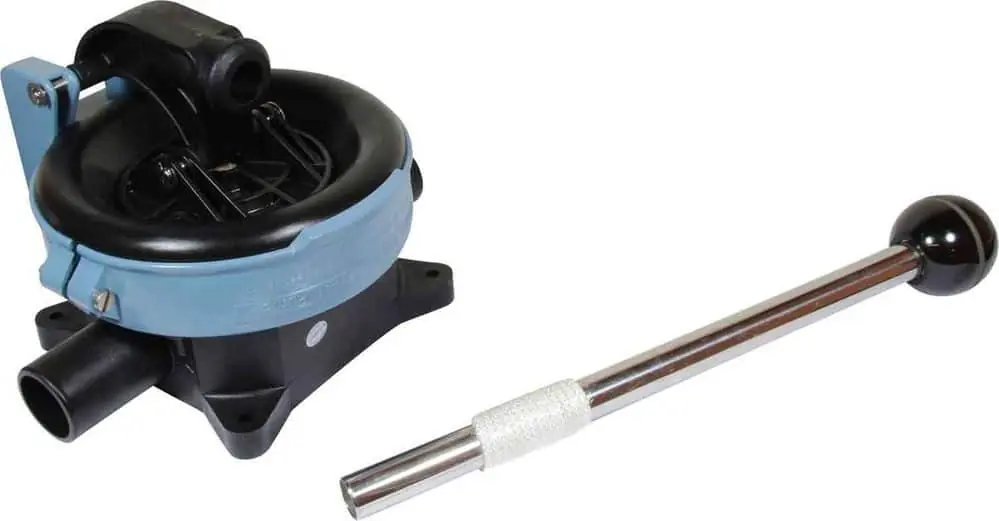

Whale Gusher® Titan Manual Bilge Pump
Tough high performance manual bilge pump with lightweight Polypropylene construction. The Whale Titen exceeds ISO15083 requirements as a primary bilge pump on boats over 12 m with an impressive flow rate of up to 105 l/min.
Whale have been manufacturing manual bilge pumps for over 60 years. The Gusher Titan is a proven design, tried and tested by sailors for decades, ideal for even the toughest marine conditions. Manual bilge pumps are not used everyday, but must be completely dependable when we need them. The Gusher Titan is designed for simple maintenance and many years of service, both service kits and spare parts are readily available, an essential feature for long term service and reliability.

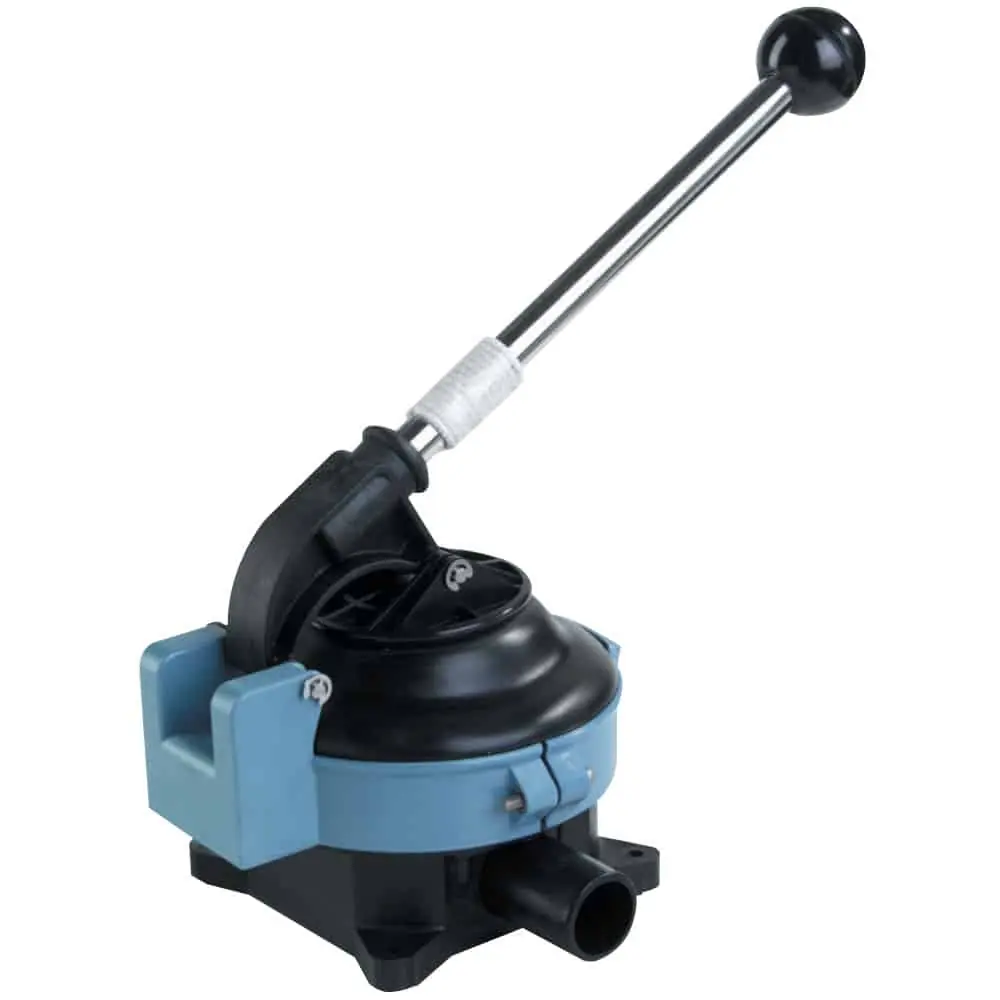

Available in two versions, the BP4402 for surface mounting on the floor or bulkhead and the BP4410 for through deck/bulkhead mounting. Alloy or plastic deck plates are available to complete the installation.
Features:
- High flow rate: 105 lt (28 US gals) per minute
- Clamp ring easily removed for pump head rotation
- Tough yet lightweight proven design
- 2 mounting options - bulkhead and thru deck models
- Quick maintenance - Clamp ring easily removed for pump head rotation
- Typical Uses: bilge pump out, Holding tank pump out, Toilet flush
- Ease of operation - Self priming and spring assisted outlet valve
- Straight forward installation
For outlets before the waterline it is important to ensure that a vented anti-syphon loop is incorporated in the system.
Specifications:

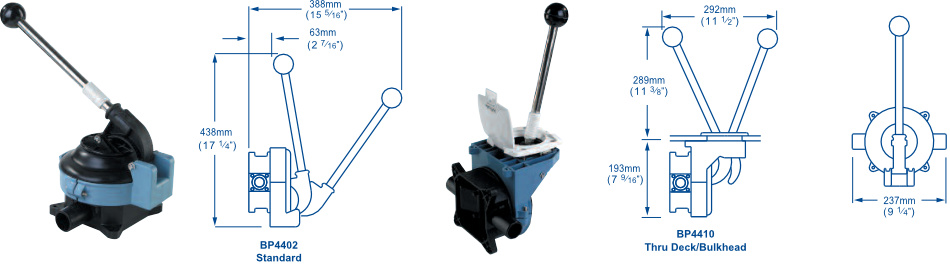

| Model | BP4402 | BP4410 |
| Type | Surface Mount | Through Deck/Bulkhead Mount |
| Hose Connectors | 38 mm (1" 1⁄2) Smooth Hose Connections | |
| Pump Body | Glass-filled Polypropylene | |
| Maximum Suction Lift | 4 m | |
| Maximum Discharge Head | 4 m | |
| Performance | 105 lt/min (70 strokes/min)* | 95 lt/min (70 strokes/min)** |
| Weight | 1.5 kg | 1.85 kg |
* measured with 1 m suction lift and 0.5 m discharge head.
** measured with 2 m suction lift and 0.5 m discharge head.
