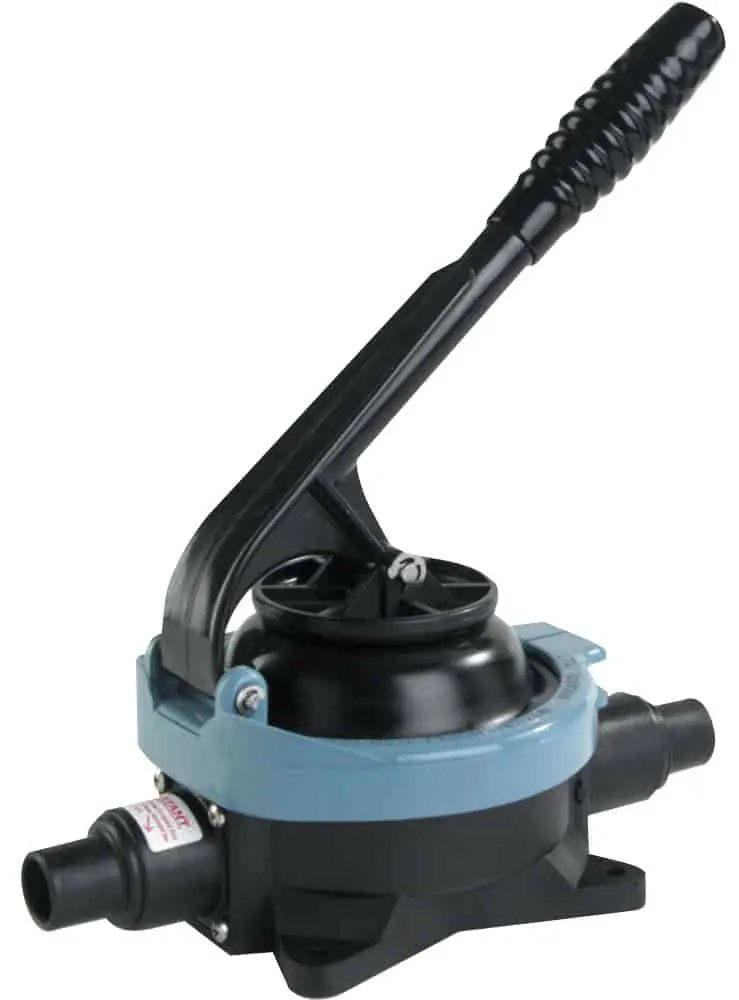

Whale Gusher® Urchin Manual Bilge Pump

Price:66.90 ex. VAT
Price: 80.95 (inc. VAT)
WHALE BP9005
4 in stock
10 days (approx.)
+
Shipping Costs:

Tough efficient manual bilge pump with lightweight Polypropylene construction and a compact size ideal for tight spaces. The Whale Urchin exceeds ISO15083 requirements as a primary bilge pump on boats over 12 m with a flow rate of up to 55 l/min.

Whale have been manufacturing manual bilge pumps for over 60 years. The Gusher Urchin is a proven design, tried and tested by sailors for decades, ideal for even the toughest marine conditions. Manual bilge pumps are not used everyday, but must be completely dependable when we need them.  The Gusher Urchin is designed for simple maintenance and many years of service, both service kits and spare parts are readily available, an essential feature for long term service and reliability.

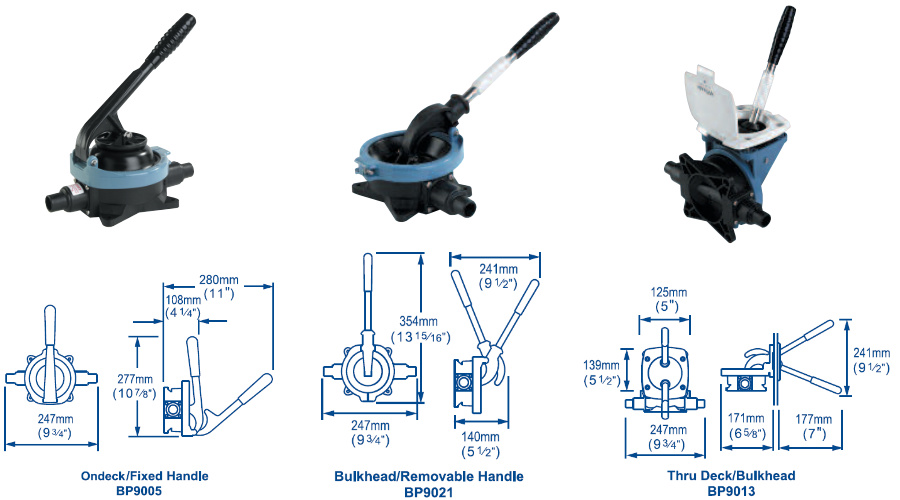

Available in three versions, the BP9005 Fixed Handle and the BP9021 Removeable Handle for surface mounting on the floor or bulkhead and the BP9013 for through deck/bulkhead mounting. Deck plates are available to complete the installation.



Whale Gusher Urchin Manual Bilge Pump


Features:

  • Easy operation with smooth action
  • Efficient performance up to 55 l/min (14.5 US gals)
  • Clamp ring easily removed for pump head rotation and quick maintenance
  • Dual size nozzles for 25 mm (1”) or 38 mm (1½”)
  • Tough yet lightweight proven design
  • Three different mounting options (deck, bulkhead and thru deck models)
  • Straight forward installation

For outlets before the waterline it is important to ensure that a vented anti-syphon loop is incorporated in the system.


Specifications:

Model Type Hose
Connectors
Pump Body Max. Suction
Lift
Max. Discharge
Head
Performance Weight
BP9005 Surface Mount
Fixed Handle
25 mm (1") or 38 mm (11⁄2") Smooth Glass-filled Polypropylene 4 m 3 m 55 l/min*

0.6 kg
BP9021 Surface Mount
Removeable  Handle
25 mm (1") or 38 mm (1"1⁄2) Smooth Glass-filled Polypropylene 4 m 3 m 55 l/min*

0.96 kg
BP9013 Thru Deck / Bulkhead 25 mm (1") or 38 mm (1"1⁄2) Smooth Glass-filled Polypropylene 4 m 3 m 55 l/min* 0.7 kg

* measured with 1 m suction lift, 0.5 m discharge head, 38 mm hose connections and 70 strokes/min.

  Code Gusher® Urchin Availability Price
Whale Gusher® Urchin Manual Bilge Pump - bluemarinestore.com
WHALE BP9005
BP9005
In stock
80.95 (inc. VAT)
66.90 (ex. VAT)
Whale Gusher® Urchin Manual Bilge Pump - bluemarinestore.com
WHALE BP9021
BP9021
In stock
89.95 (inc. VAT)
74.34 (ex. VAT)
Whale Gusher® Urchin Manual Bilge Pump - bluemarinestore.com
WHALE BP9013
BP9013
In stock
108.95 (inc. VAT)
90.04 (ex. VAT)
WHALE AK9003
29.08 ex. VAT   35.19
Original replacement parts and service kits for Whale Gusher Urchin manual pumps. AK9003 Neoprene Service Kit Complete set of serviceable parts for the...
In stock


WHALE DP8904
31.15 ex. VAT   37.69
UV resistant plastic deck plate for use with the Gusher ® 10, Gusher ® Titan and Gusher ® Urchin through deck manual bilge pumps.
In stock
+

WHALE SB5865
23.38 ex. VAT   28.29
Polypropylene pump inlet strainer/filter avoids debris entering the pump and blocking the valves. Features screw down holes and a dual size hose connector...
In stock


WHALE EB3364
7.76 ex. VAT   9.39
90 ° glass-filled Polypropylene elbow ideal for installing manual bilge pumps in tight spaces. Available in two sizes. EB3364 - 25 mm (1")...
In stock


JCS HI-GRIP SS304 12
1.73 ex. VAT   2.09
JCS
HI-GRIP STAINLESS hose clips (hose clamps) by JCS High-Torque Ltd. Made entirely from 18/8 - AIS304 marine quality stainless steel and are ideal for salt...
In stock


Whale Gusher Urchin Installation Manual EN (118 Kb) - Download

Whale Gusher Urchin Spare Parts EN (469 Kb) - Download
