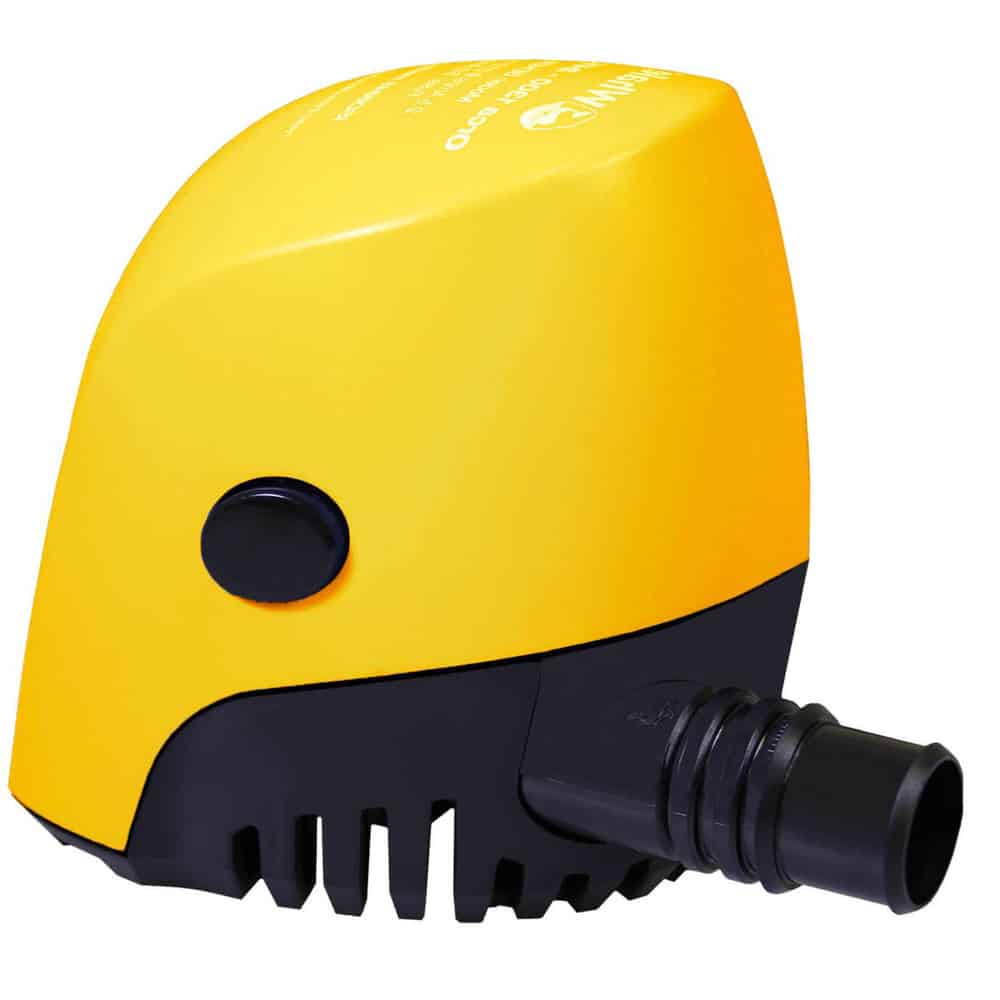

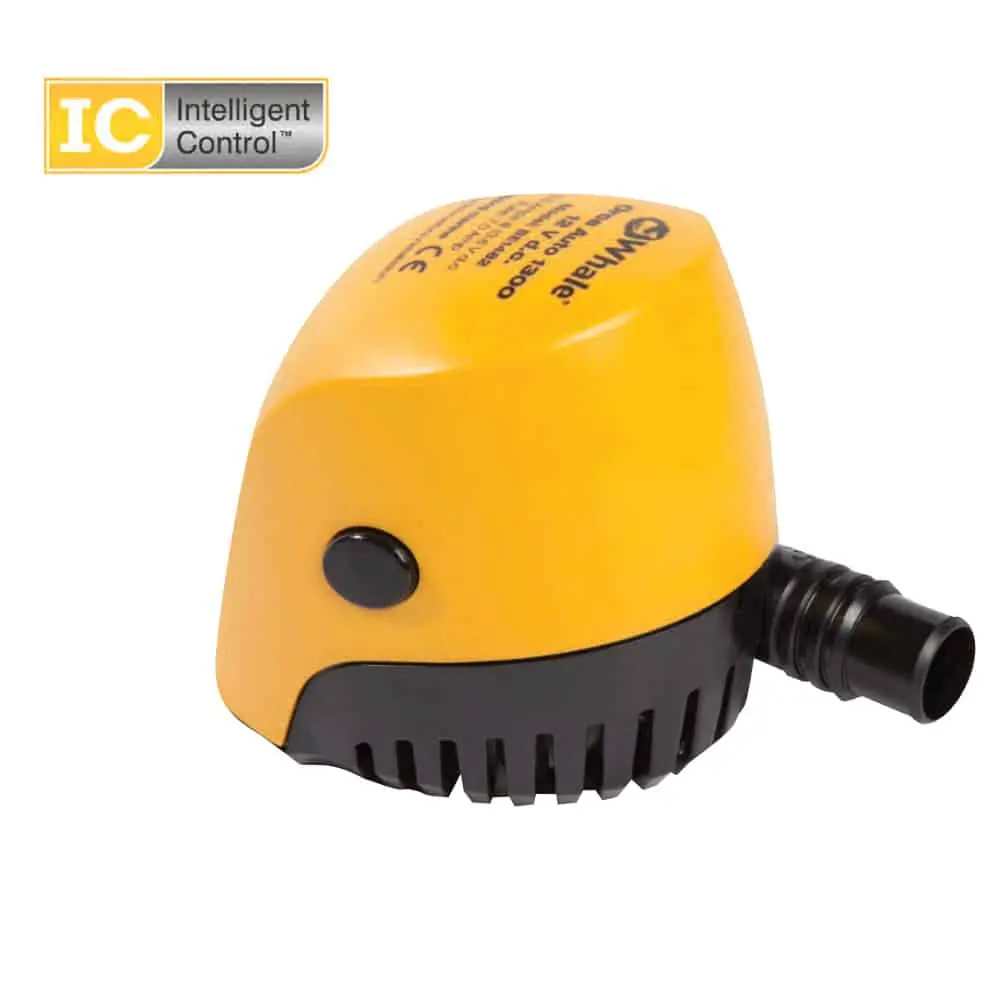

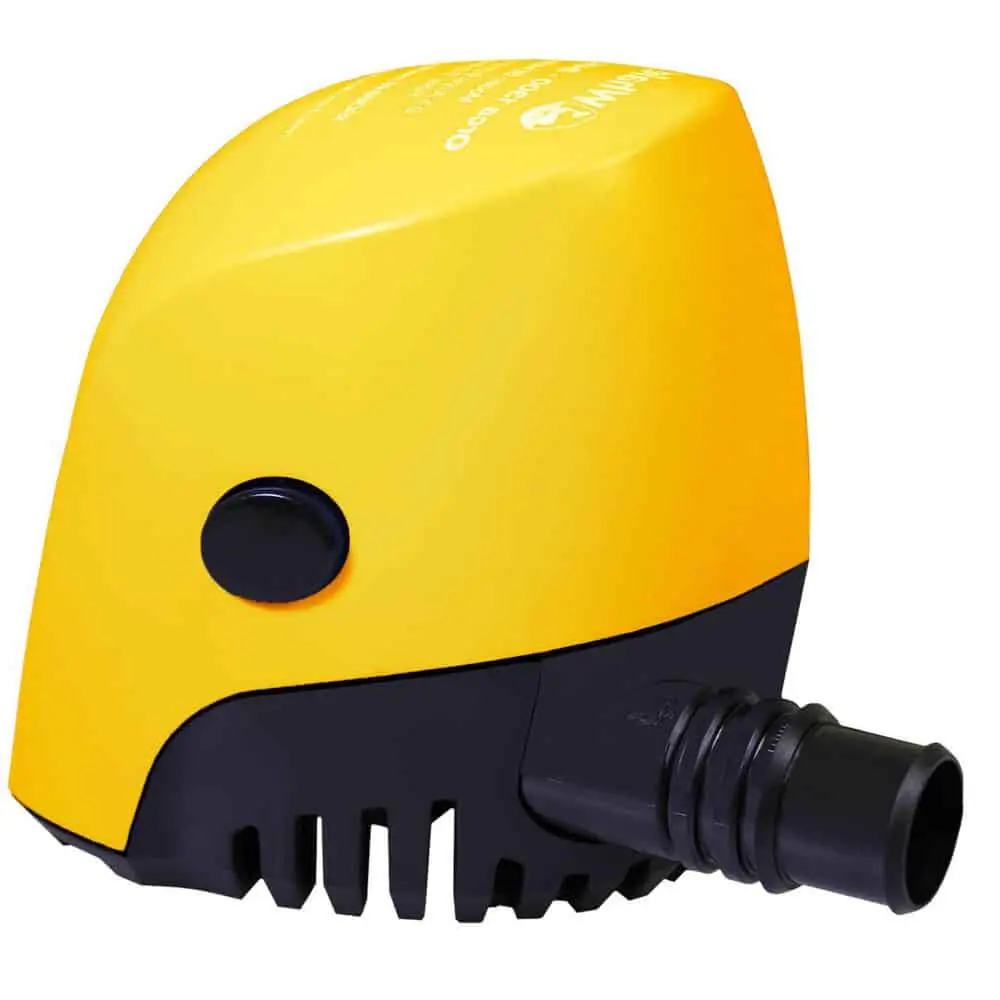

Whale Orca Auto IC 1300 Bilge Pump
The Orca Auto 1300 is the new addition to the IC bilge pump range of intelligently controlled pumps from Whale.
Submersible, compact and powerful with performance up to 82 ltrs/min (1300 US gals/hr). The Orca Auto 1300 requires no additional float switch thanks to the built in Intelligent Control field sensor. The large footprint ensures the lowest water level detection and maximum surface area exposure to bilge water.

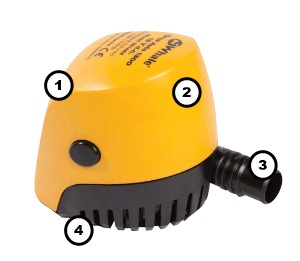

- Integrated electronics with built in IC Microprocessor intelligent control encapsulated for protection against water ingress.
- Fully protected robust housing made from fuel resistant ABS plastic.
- Easy to install with dual size stepped hose connector for both 25 mm (1”) or 28 mm (1 1/8”) outlet hose.
- Efficiency large surface area ensures maximum area exposed to bilge water
Features:
- High performance - 1300 US gals/hr flow rate (82 ltrs/min)
- Simple to install, built in field sensor, no need to fit a separate bilge switch
- Efficient large strainer with maximum surface area exposed to bilge water
- Solid state switching, no moving parts
- Low amp draw does not drain batteries
- Neat fit in compact bilge areas
- Unaffected by wave motion
Available in 12 V and 24 V versions.
| Model | Ref. | Flow Rate 0 Metre Head |
Flow Rate 1 Metre Head |
Voltage |
Current |
Recommended Fuse |

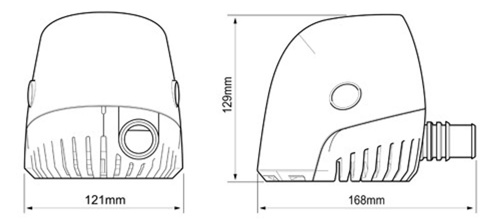

Hose Connector | Dimensions mm |
Weight kg |
| Orca Auto 1300 | BE1482 | 82 l/min (1300 GPH) |
65 l/min (1100 GPH) |
12 V | 5 Amps | 7.5 Amps | 25 mm (1") / 28 mm (1 ⅛") Escalonado |
129 x 168 x 121 | 0.9 |
| Orca Auto 1300 | BE1484 | 82 l/min (1300 GPH) |
65 l/min (1100 GPH) |
24 V | 2.5 Amps | 5 Amps | 25 mm (1") / 28 mm (1 ⅛") Escalonado |
129 x 168 x 121 | 0.9 |
| Product Code | Orca Auto IC | Availability | Price | |
|---|---|---|---|---|
|
WHALE BE1482
|
In stock
|
€163.96 (inc. VAT)
€135.50 (ex. VAT) |
|
|
|
WHALE BE1484
|
In stock
|
€163.96 (inc. VAT)
€135.50 (ex. VAT) |
