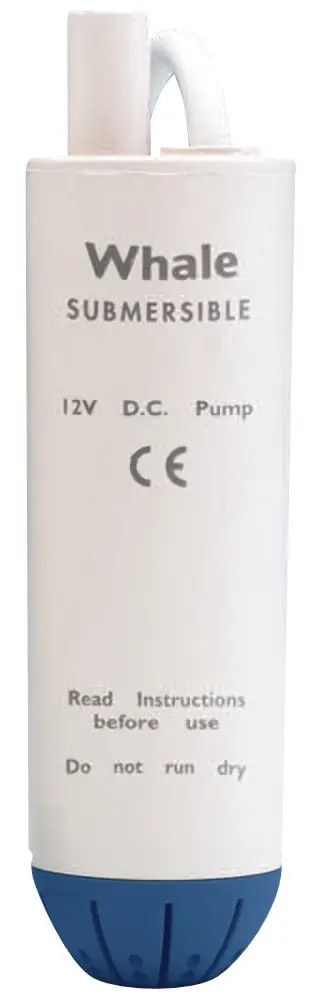

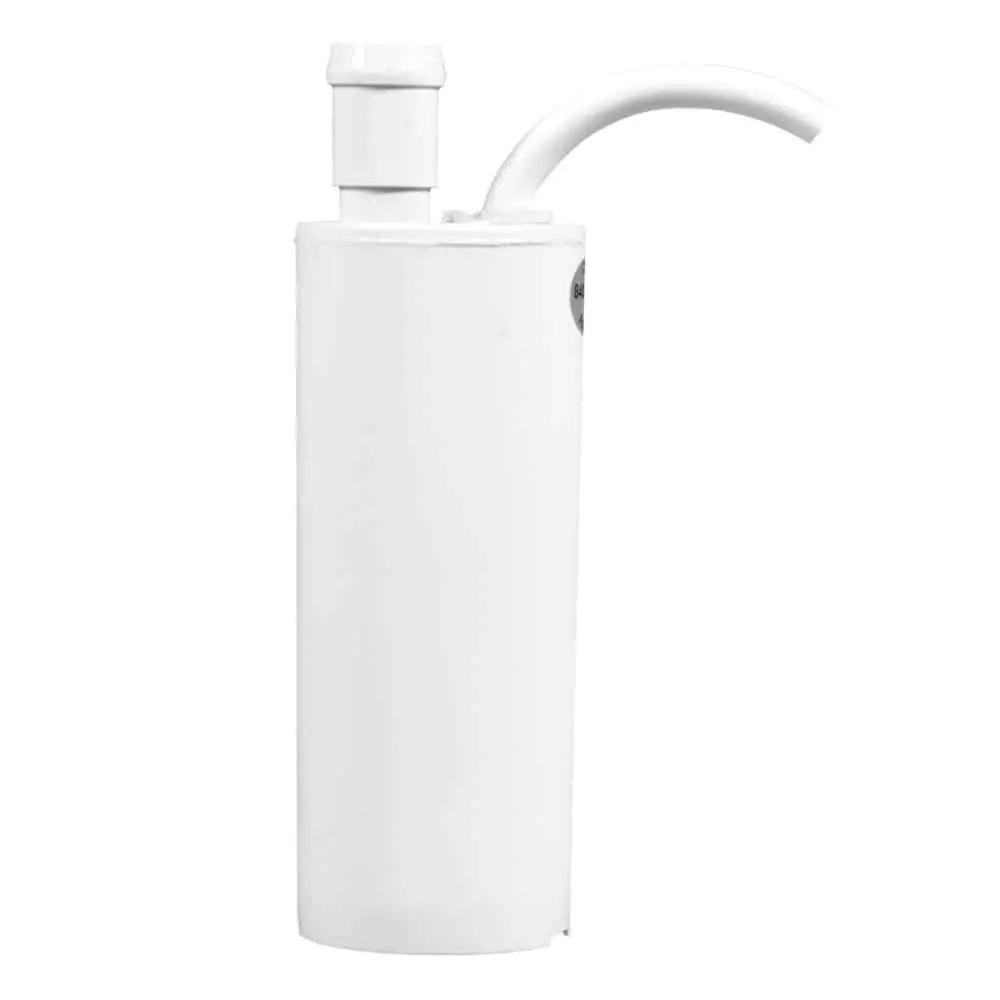

Whale Submersible Electric Galley Pump

Price:15.69 ex. VAT
Price: 18.98 (inc. VAT)
WHALE GP1002
6 in stock
10 days (approx.)
+
Shipping Costs:

Compact, quiet, lightweight and high performance, electric submersible impeller pump.

Simple and economical way to update a manual to an electric system or to combine a manual foot pump with a electric pump in the same system, running water at the flick of a switch. Also suitable for use with inline pressure switches.

Based on more than 60 years of expertise, Submersible Electric Impeller Pumps are manufactured from only the highest quality inhouse moulded parts and robust motors ensure long life and trouble free service.

Very popular not only for boats but also for recreational vehicles such as caravans or motorhomes. Can be used in conjunction with foot pumps for both manual and electric options in the same system. Simple installation, thanks to the narrow and compact design, simply connect the pump to either 10 mm or 13 mm flexible hose and drop it into the water tank. Also compatible with 11 mm push to fit connectors such as Speedfit or Whale Quick Connect fittings.

 Features:

  • Simple, compact and an economical solution
  • Long life, very quiet with low power consumption
  • An inexpensive way to upgrade your manual water system on board
  • Watertight electrics with sonic welded cable connection
  • Suitable for use with pressure switch and microswitch systems
  • Also suitable for pumping diesel


Available in 4 versions or both 12 V and 24 V systems.

Ref. Model Voltage Recommended
Fuse

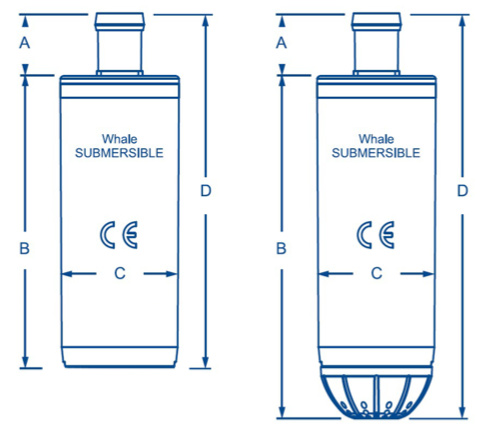

Performance l/min - Power consumption amps Size
A x B x C x D
mm
Weight
kg
Discharge Head
0 m
Discharge Head
1 m
Discharge Head
3 m
GP1002 Standard 12 V 5 amp 10.3 - 2.4 8.75 - 2.2 5.75 - 2.0 20 x 88 x 36 x 108 0.15
GP1352 Premium 12 V 5 amp 13.2 - 3.6 11.75 - 3.3 9.75 - 2.9 20 x 109 x 36 x 129   0.15
GP1354 Premium 24 V 3 amp 13.2 - 3.8 11.75 - 1.6 9.75 - 1.45 0.15
GP1652 High Flow 12 V 5 amp 15.8 - 3.8 14.8 - 3.7 12.8 - 3.5 0.15

 Whale Submersible Electric Galley Pump

  Product Code Whale Submersible Pump Availability Price
Whale Submersible Electric Galley Pump - bluemarinestore.com
WHALE GP1002
GP1002 12 V - 10.3 l/min
In stock
18.98 (inc. VAT)
15.69 (ex. VAT)
Whale Submersible Electric Galley Pump - bluemarinestore.com
WHALE GP1352
GP1352 12 V - 13.2 l/min
In stock
44.39 (inc. VAT)
36.69 (ex. VAT)
Whale Submersible Electric Galley Pump - bluemarinestore.com
WHALE GP1354
GP1354 24 V - 13.2 l/min
In stock
55.95 (inc. VAT)
46.24 (ex. VAT)
Whale Submersible Electric Galley Pump - bluemarinestore.com
WHALE GP1652
GP1652 12 V - 15.8 l/min
In stock
54.95 (inc. VAT)
45.41 (ex. VAT)

Whale Inline - Submersible Electric Impeller Pumps Manual EN DE FR IT ES SE (317 Kb) - Download
