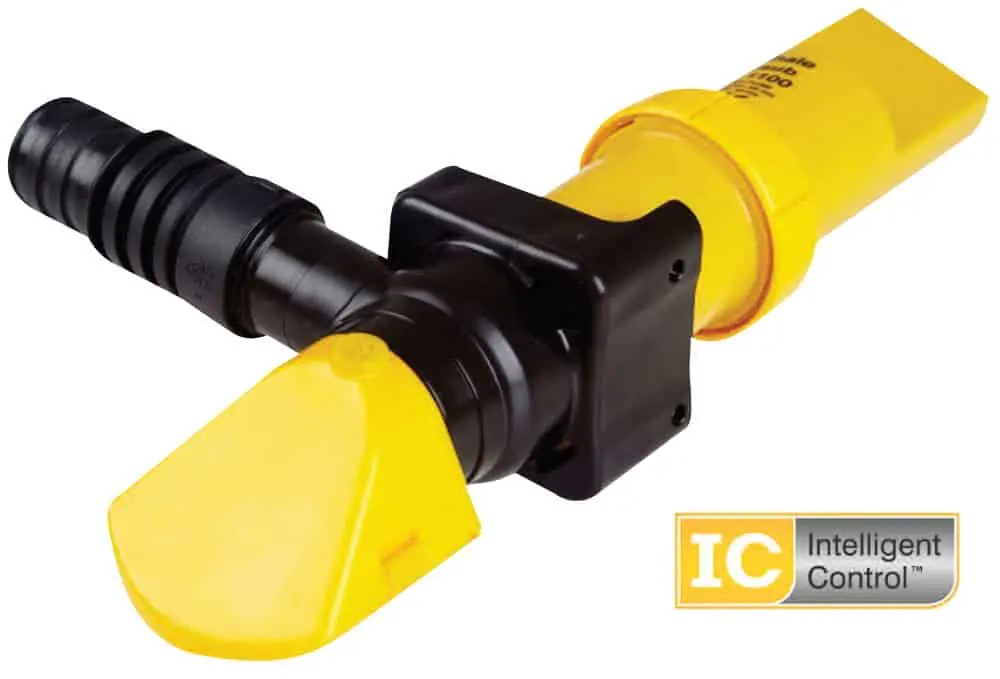

Whale Supersub Smart IC Automatic Bilge Pump
The original award winning low profile narrow automatic electric bilge pump proven over 20 years. Thanks to the rotating body / outlet, it fits almost anywhere, deep down in narrow bilge areas, shallow bilges and under engines or cockpit floors. The Supersub Smart IC (Intelligent Control) has a built in solid state field sensor which detects water and automatically activates the pump, no separate switch required.

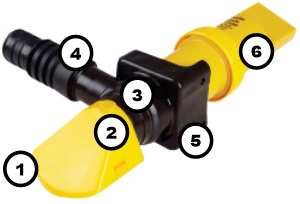

- Unique design inlet strainer can be rotated by 360° to facilitate the mounting orientation of the pump and can be easily removed for cleaning
- Inlet strainer features an integrated bleed ball valve which prevents airlocks typical with other impeller pumps
- Outlet valve / body rotates by 90 ° to suit almost any installation
- Barbed hose connector with built in non return valve
- New Installation wedge design allows the body to be installed in multiple positions and with an angle to pump almost dry ( 9mm depth)
- Solid state electric field sensor technology has no moving parts and waterproof electronics

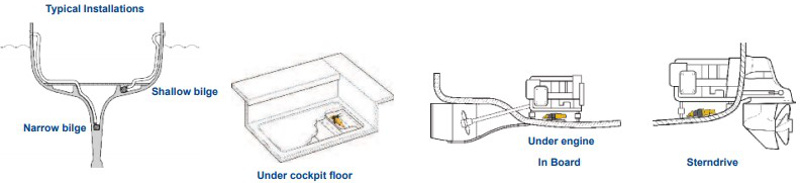

Narrow low profile automatic compact bilge pump can be installed almost anywhere onboard.
Features:
- Low narrow design for confined bilge spaces
- Outlet and pump body rotate to suit any installation
- No separate bilge switch required
- Now with angled mounting bracket to aid installation
- Environmentally friendly - mercury free
- Includes manual override option
- Solid state switching - no moving parts
- Suitable for use with fresh or salt water
- Very low power consumption
- Low profile strainer leaves the bilge almost dry
- Easy to remove and replace for cleaning
Available in three versions with 40 l/min (650 GPH) or 66 l/min (1050 GPH) outputs for either 12 V or 24 V systems.
| Model | Ref. | Flow Rate 0 Metre Head |
Flow Rate 1 Metre Head |
Voltage |
Current |
Recommended Fuse |

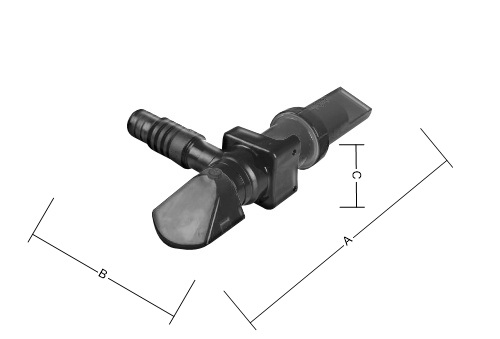

Hose Connectors | A x B x C mm |
Weight kg |
| Supersub Smart 650 |
SS5212 | 40 l/min (650 GPH) |
34 l/min (550 GPH) |
12 V | 3.4 Amps | 5 Amps | 19 mm / 25 mm (¾") / (1") Stepped port |
212 x 133 x 54 | 0.326 |
| Supersub Smart 1100 |
SS1212 | 66 l/min (1050 GPH) |
47 l/min (750 GPH) |
12 V | 3.4 Amps | 5 Amps | 25 mm / 28 mm (1") / (1 ⅛") Stepped port |
240 x 133 x 54 | 0.45 |
| Supersub Smart 1100 |
SS1224 | 66 l/min (1050 GPH) |
47 l/min (750 GPH) |
24 V | 2.2 Amps | 2.5 Amps | 25 mm / 28 mm (1") / (1 ⅛") Stepped port |
240 x 133 x 54 | 0.45 |
| Product Code | Supersub Smart IC | Availability | Price | |
|---|---|---|---|---|
|
WHALE SS5212
|
In stock
|
€90.96 (inc. VAT)
€75.17 (ex. VAT) |
|
|
WHALE SS1212
|
In stock
|
€168.95 (inc. VAT)
€139.63 (ex. VAT) |
|
|
WHALE SS1224
|
In stock
|
€173.95 (inc. VAT)
€143.76 (ex. VAT) |
