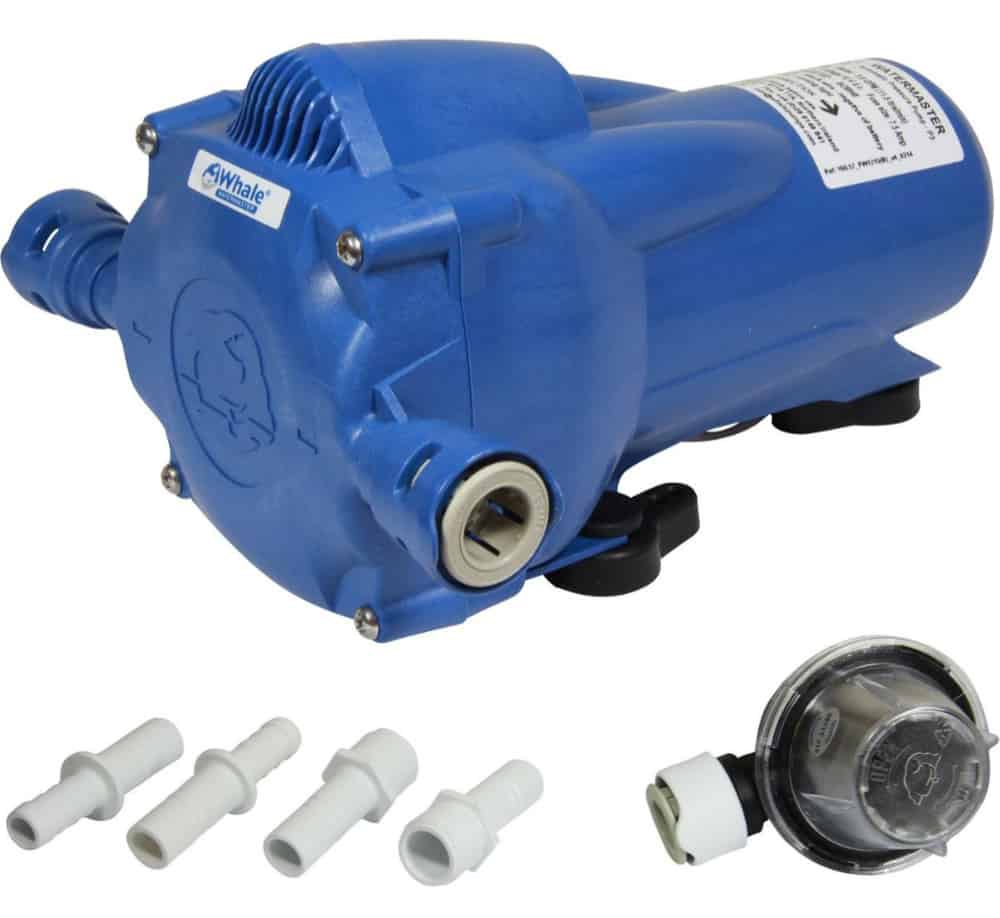

Whale Watermaster Automatic Pressure Pump

Price:104.92 ex. VAT
Price: 126.95 (inc. VAT)
WHALE FW0814
3 in stock
10 days (approx.)
+
Shipping Costs:

With over a decade of refinements, the new Watermaster automatic pressure pump has been designed to ensure not only efficient performance but most importantly, long term reliability even in harsh marine environments. The Whale Watermaster is simple to install, delivers quiet, automatic operation with constant high flow rates and features a IP65 rated sealed protective motor housing with integrated electronics and pressure switch. The pump is self priming and can run dry without damage. Suitable for both fresh and salt water applications.

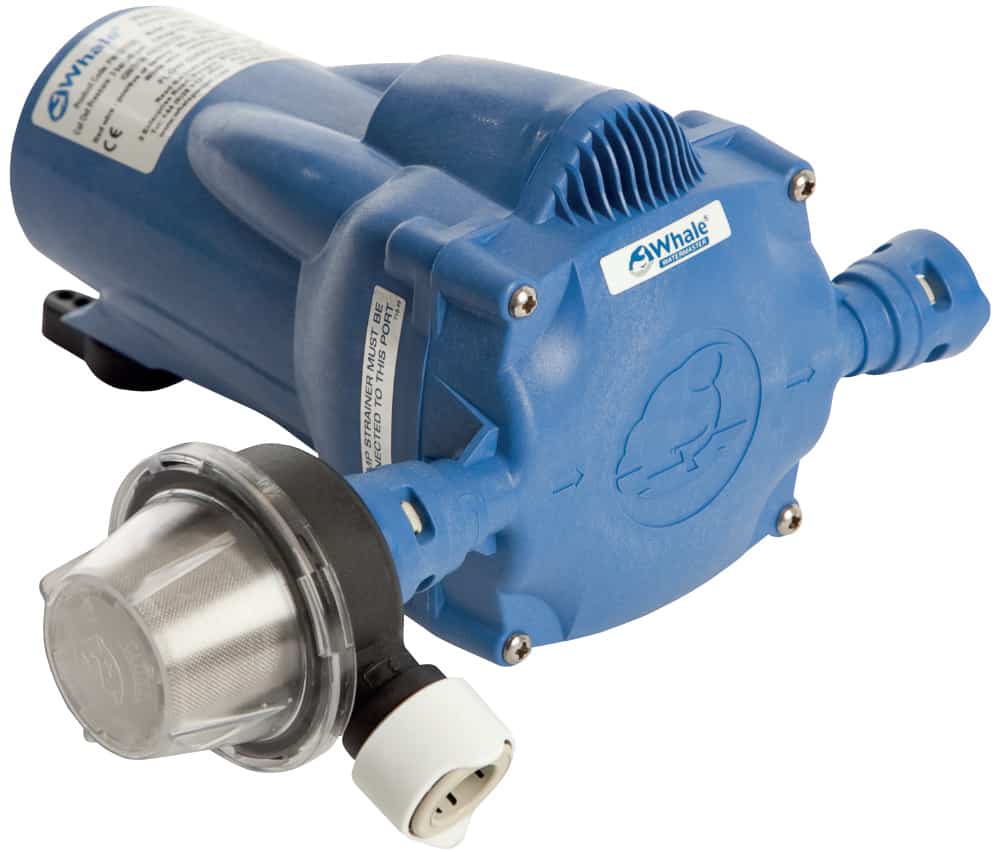

 Whale Watermaster Pressure Pump

Features:

  1. IP65 rated, fully sealed protective motor housing
  2. Completely integrated and protected electronics and pressure switch
  3. Four chamber pump head ensures smooth constant flow and high flow rates for up to 4 outlets. Self primes up to 3 m and can run dry without damage
  4. Simple installation, quick connect fittings for direct connection to 15 mm Whale Quick Connect or John Guest Speedfit pipe and fittings. Also supplied with both 1/2" threaded and barbed connections
  5. Included filter to protect pump from debris
  6. Anti-vibration feet for reduced noise

Available in four versions for both 12 V or 24 V systems.

Specifications:

Model FW0814 FW1214 FW1215 FW1225
Voltage 12 V 24V
Open Flow Rate 8 litres/min 11.5 litres/min
Number of Outlets 1-2 3-4
Max. System Pressure 2 bar (30 psi) 3 bar (45 psi)
Recommended Fuse Size 5 A  7.5 A  7.5A 5 A
Current Draw 4 A 6 A 6 A 3.5 A
Maximum Suction Lift 3 m
Weight 1.5 kg
Connectors Whale® Quick Connect 15 mm Female Connections
2 x ½” threaded connectors and 2 x ½” barbed hose connectors included

 Whale Watermaster

  Product Code Watermaster Availability Price
Whale Watermaster Automatic Pressure Pump - bluemarinestore.com
WHALE FW0814
FW0814 - 12 V
In stock
126.95 (inc. VAT)
104.92 (ex. VAT)
Whale Watermaster Automatic Pressure Pump - bluemarinestore.com
WHALE FW1214
FW1214 - 12 V
In stock
134.95 (inc. VAT)
111.53 (ex. VAT)
Whale Watermaster Automatic Pressure Pump - bluemarinestore.com
WHALE FW1215
FW1215 - 12 V
In stock
138.94 (inc. VAT)
114.83 (ex. VAT)
Whale Watermaster Automatic Pressure Pump - bluemarinestore.com
WHALE FW1225
FW1225 - 24 V
In stock
144.95 (inc. VAT)
119.79 (ex. VAT)

Whale Watermaster Pressure Pump Datasheet EN (1,193 Kb) - Download

Whale Watermaster Pressure Pump Installation Manual EN FR DE IT ES SE FI (433 Kb) - Download
