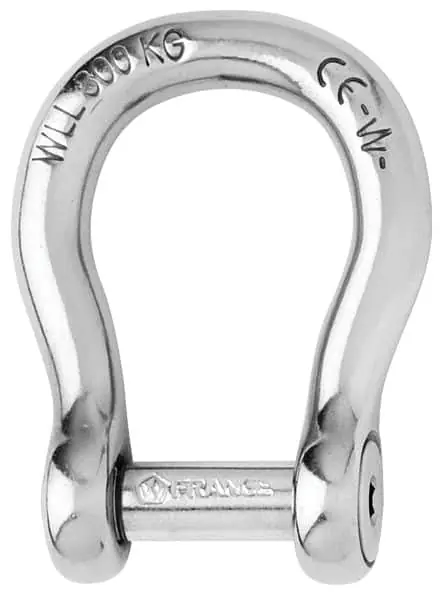

Wichard Allen Head Pin Shackle

Price:23.30 ex. VAT
Price: 28.19 (inc. VAT)
WICHARD 1345
2 in stock
3 days (approx.)
+
Shipping Costs:

Top quality patented stainless steel 316L shackles from Wichard. Flush fitting Allen head on the pin avoids snagging and damage often caused by traditional shackles with protruding heads. Ideal for anchor-chain connections, halyards and sails. Exceptional working and breaking loads with CE marking and batch number stamped into the shackle body to guarantee authenticity.

Available in 2 versions and in sizes from 4 mm to  12 mm with working loads up to 2080 kg.

  • Standard D Shackle
  • Bow Shackle

 Wichard Allen Head Pin Shackle



Ref. Type Size
C
A
mm
B
mm
D
mm
Dia. D
mm
E
mm
F
mm
G
mm
M
mm
Working Load *
mm
Breaking Load
mm
Weight
kg
1303 Standard D 6 mm 19 12   6       - 600 1600 0.022
1304 Standard D 8 mm 26 16 16 8 7 46 33 - 960 2700 0.053
1305 Standard D 10 mm 33 20 19 10 9 57 41 - 1440 4300 0.099
1306 Standard D 12 mm 39 24 24 12 10 73 49 - 2080 5500 0.187
1343 Bow 6 mm 27 12 12 6 5     32 600 1500 0.029
1344 Bow 8 mm 37 16 16 8 7 25 33 40 960 2700 0.067
1345 Bow 10 mm 47 20 20 10 9 32 41 52 1440 4300 0.133
1356 Bow 12 mm 55 24 24 12 10 38 49 63 2080 6000 0.222

* Working loads indicated are for marine use. For industrial use working load = breaking load/5.

  Product Code Allen Head Pin Shackle Size Allen Head Pin Shackle Model Availability Price
Wichard Allen Head Pin Shackle - bluemarinestore.com
WICHARD 1303
6 mm Standard D
In stock
10.89 (inc. VAT)
9.00 (ex. VAT)
Wichard Allen Head Pin Shackle - bluemarinestore.com
WICHARD 1343
6 mm Bow
In stock
12.69 (inc. VAT)
10.49 (ex. VAT)
Wichard Allen Head Pin Shackle - bluemarinestore.com
WICHARD 1304
8 mm Standard D
In stock
15.58 (inc. VAT)
12.88 (ex. VAT)
Wichard Allen Head Pin Shackle - bluemarinestore.com
WICHARD 1344
8 mm Bow
In stock
18.19 (inc. VAT)
15.03 (ex. VAT)
Wichard Allen Head Pin Shackle - bluemarinestore.com
WICHARD 1305
10 mm Standard D
In stock
24.09 (inc. VAT)
19.91 (ex. VAT)
Wichard Allen Head Pin Shackle - bluemarinestore.com
WICHARD 1345
10 mm Bow
In stock
28.19 (inc. VAT)
23.30 (ex. VAT)
Wichard Allen Head Pin Shackle - bluemarinestore.com
WICHARD 1306
12 mm Standard D
In stock
40.29 (inc. VAT)
33.30 (ex. VAT)
Wichard Allen Head Pin Shackle - bluemarinestore.com
WICHARD 1346
12 mm Bow
In stock
42.69 (inc. VAT)
35.28 (ex. VAT)
