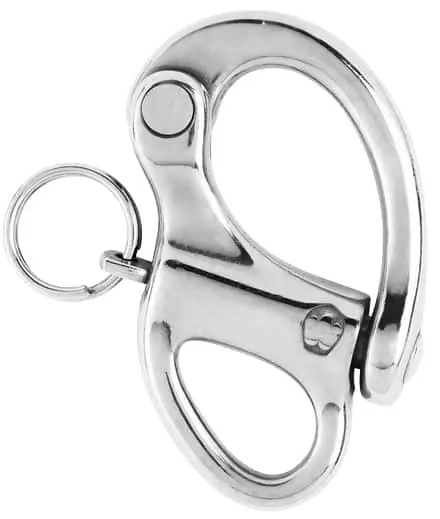

Wichard Fixed Eye HR Snap Shackle

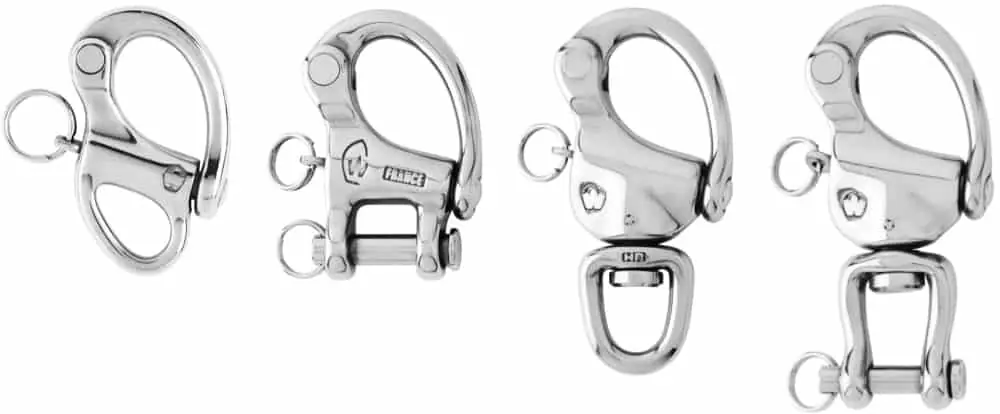

Designed and forged in France with HR High Resistance Martensitic X5CrNiCuNb 16-4 stainless steel for maximum strength. The Wichard forging process has been perfected own to the smallest detail. Wichard HR snap shackles will never break suddenly but will deform before reaching the breaking point, providing an early indication of extreme loads and therefore an additional level of safety. Available in various models and sizes for many uses onboard.
- Forged in HR Martensitic stainless steel
- Designed and manufactured in France
- High working and breaking loads
- Captive plunger pin cannot become detached
- Easy to open by pulling the plunger pin (easy to attach a lanyard)
Available en 3 Sizes:

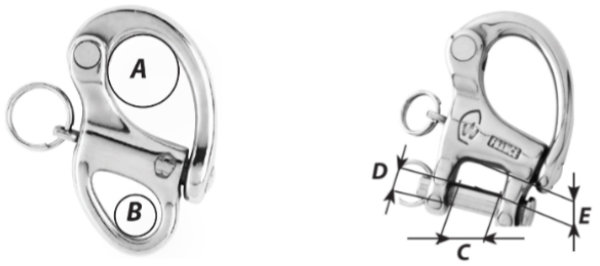

| Model | Ref. | Size A mm |
B mm |
C mm |
D mm |
E mm |
Length mm |
Working Load kg |
Breaking Load kg |
Weight kg |
| Fixed Eye | 2470* | 8 | 6 | 35 | 160 | 400 | 0.012 | |||
| Fixed Eye | 2471 | 16 | 10 | 50 | 960 | 2000 | 0.042 | |||
| Fixed Eye | 2472 | 21 | 13 | 70 | 1280 | 3000 | 0.090 |
* Ref 2470 is manufactured in 316L stainless steel
| Code | Wichard Snap Shackle Size | Availability | Price | |
|---|---|---|---|---|
|
WICHARD 2470
|
In stock
|
€25.19 (inc. VAT)
€20.82 (ex. VAT) |
|
|
WICHARD 2471
|
In stock
|
€34.49 (inc. VAT)
€28.50 (ex. VAT) |
|
|
WICHARD 2472
|
In stock
|
€50.95 (inc. VAT)
€42.11 (ex. VAT) |
