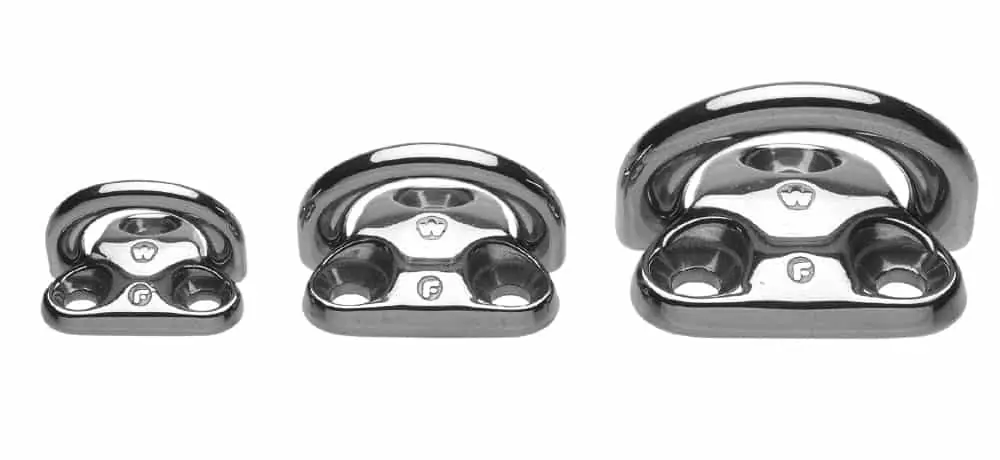

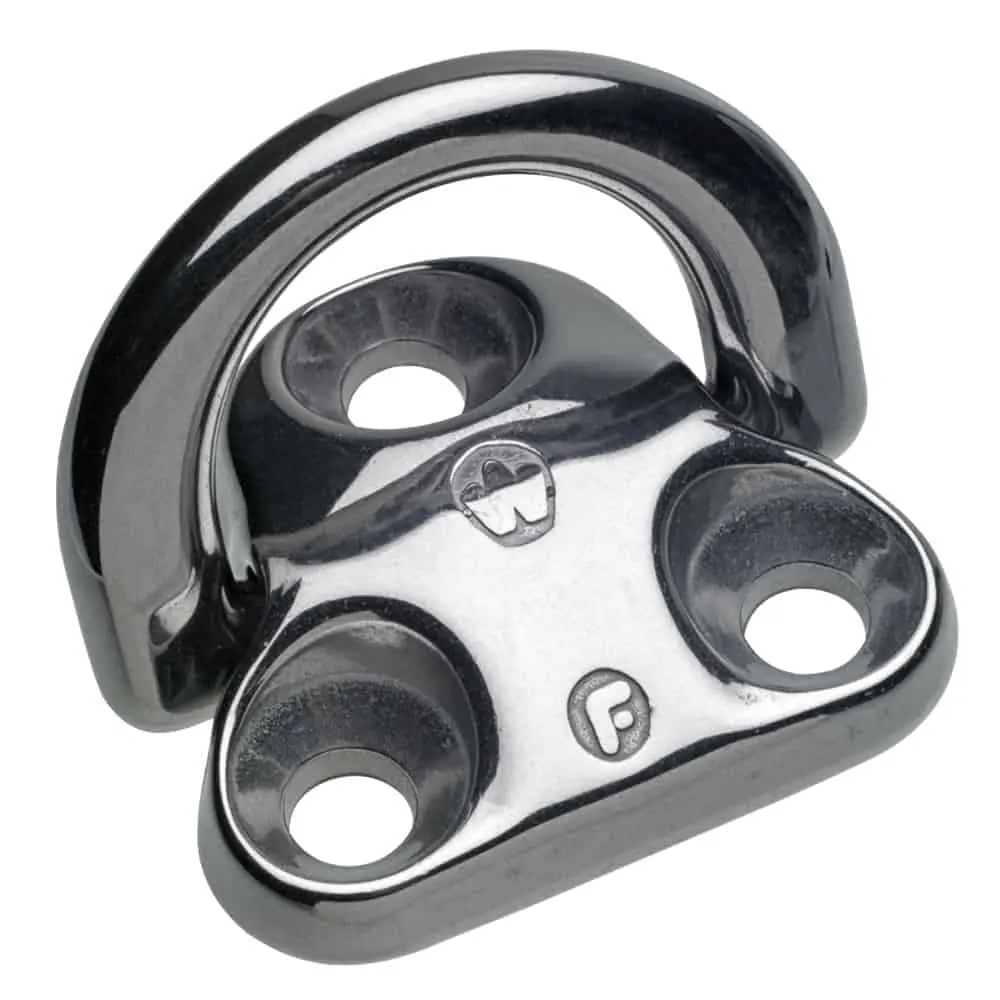

Hot forged AISI 316L Stainless Steel and Titanium pad-eyes for providing a high strength attachment point for a multitude of uses both onboard and ashore. Simple, very strong and aesthetic, available in single Stainless Steel or Titanium versions and double Stainless Steel versions for attaching lifelines, removable fore stays, deck equipment and rigging. Flush when folded with a Silicon pad to reduce noise and vibrations. Outstanding working loads in all positions.
- Fully dropforged with outstanding working and breaking loads regardless the angle of the load.
- Perfect solution attachment (stay, blocks, jib tack point).
- Possibility to attach multiple stays.
- Modern and optimized design to suit aesthetics of modern boats.
- Folds down to minimize the risk of injuries.
- Included silicon backing pad eliminates noise and vibrations.

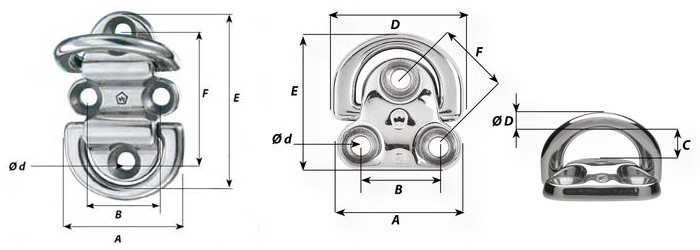

Type | Bolt Size | Ref. | A mm | B mm | C mm | Ø d mm | E mm | F mm | Work Load | Break Load | Weight kg |
Single | M6 | 6504 | 45 | 27 | 14 | 6.4 | 40 | - | 1440 | 1800 | 0.067 |
Single | M8 | 6505 | 59 | 35 | 17 | 8,5 | 50 | - | 2400 | 3000 | 0.136 |
Single | M10 | 6506 | 75 | 45 | 23 | 10.5 | 65 | - | 4080 | 8000 | 0.286 |
Double | M6 | 6564 | 45 | 27 | 14 | 6.4 | 75 | 59 | 1440 | 2500 | 0.126 |
Double | M8 | 6565 | 59 | 35 | 17 | 8.5 | 81 | 59 | 2400 | 4300 | 0.252 |
Double | M10 | 6566 | 75 | 45 | 23 | 10.5 | 104 | 78 | 4560 | 9000 | 0.494 |
Single Titanium | M6 | 56504 | 45 | 27 | 14 | 6.4 | 40 | - | 1600 | 3000 | 0.040 |
Single Titanium | M8 | 56505 | 59 | 35 | 17 | 8.5 | 50 | - | 2720 | 5000 | 0.080 |
Single Titanium | M10 | 56506 | 75 | 45 | 23 | 10.5 | 65 | - | 4560 | 8500 | 0.174 |
