Wichard Self Locking Shackle
Top quality patented stainless steel 316L shackles from Wichard. The shackle features indentations which lock the pin into position when full screwed into the body, avoiding loosening due to vibrations when in use. Exceptional working and breaking loads with CE marking and batch number stamped into the shackle body to guarantee authenticity.
Available in 5 version and in sizes from 4mm to 20mm with working loads up to 4000 kg.
- Standard D Shackle

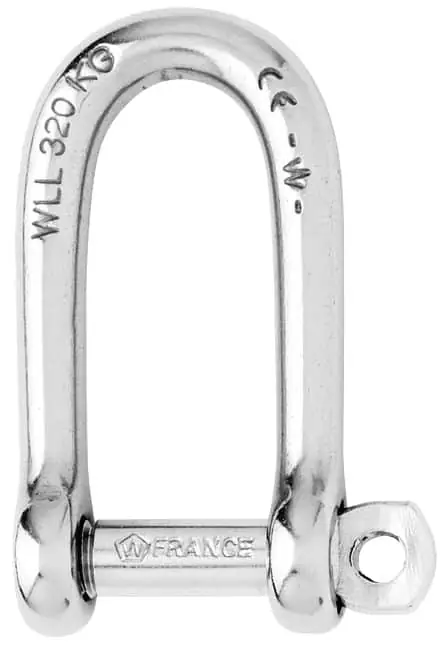

- Long D Shackle
- Bow Shackle
- Large Shackle
- Twisted Shackle
| Ref. | Type | Size C |
A mm |
B mm |
D mm |
Dia. D mm |
E mm |
F mm |
G mm |
M mm |
Working Load * kg |
Breaking Load kg |
Weight kg |
| 1201 | Standard D | 4 mm | 13 | 8 | 8 | 4 | 3 | 23 | 20 | - | 320 | 700 | 0.007 |
| 1202 | Standard D | 5 mm | 16 | 10 | 10 | 5 | 4 | 29 | 26 | - | 400 | 1000 | 0.013 |
| 1203 | Standard D | 6 mm | 20 | 12 | 12 | 6 | 5 | 34 | 31 | - | 600 | 1600 | 0.022 |
| 1204 | Standard D | 8 mm | 26 | 16 | 16 | 8 | 7 | 45 | 41 | - | 1000 | 2700 | 0.055 |
| 1205 | Standard D | 10 mm | 33 | 20 | 19 | 10 | 9 | 57 | 55 | - | 1520 | 4300 | 0.098 |
| 1206 | Standard D | 12 mm | 42 | 27 | 24 | 12 | 11 | 73 | 62 | - | 2080 | 6000 | 0.193 |
| 1207 | Standard D | 14 mm | 47 | 28 | 28 | 14 | 13 | 82 | 78 | - | 2400 | 8000 | 0.312 |
| 1211 | Long D | 4 mm | 22 | 8 | 8 | 4 | 4 | 32 | 21 | - | 320 | 700 | 0.008 |
| 1212 | Long D | 5 mm | 29 | 10 | 10 | 5 | 4 | 41 | 26 | - | 400 | 1000 | 0.017 |
| 1213 | Long D | 6 mm | 33 | 12 | 12 | 6 | 5 | 47 | 31 | - | 600 | 1600 | 0.027 |
| 1214 | Long D | 8 mm | 45 | 16 | 16 | 8 | 7 | 64 | 41 | - | 1000 | 2700 | 0.066 |
| 1215 | Long D | 10 mm | 55 | 20 | 19 | 10 | 9 | 79 | 52 | - | 1520 | 4300 | 0.128 |
| 1241 | Bow | 4 mm | 18 | 8 | 8 | 4 | - | - | - | 21 | 320 | 700 | 0.009 |
| 1242 | Bow | 5 mm | 23 | 10 | 10 | 5 | 4 | - | - | 25 | 400 | 1000 | 0.017 |
| 1243 | Bow | 6 mm | 28 | 12 | 12 | 6 | 5 | - | - | 32 | 600 | 1500 | 0.030 |
| 1244 | Bow | 8 mm | 37 | 16 | 16 | 8 | 7 | - | - | 39 | 1000 | 2700 | 0.068 |
| 1245 | Bow | 10 mm | 47 | 20 | 20 | 10 | 9 | - | - | 52 | 1520 | 4300 | 0.137 |
| 1246 | Bow | 12 mm | 55 | 24 | 24 | 12 | 10 | - | - | 63 | 2080 | 6000 | 0.233 |
| 1247 | Bow | 16 mm | 70 | 32 | 32 | 16 | 15 | - | - | 85 | 3200 | 10000 | 0.540 |
| 1248 | Bow | 20 mm | 80 | 40 | 40 | 20 | 18 | - | - | 100 | 4000 | 15000 | 1.056 |
| 1262 | Large | 5 mm | 36 | 20 | 11 | 5 | 5 | 48 | 35 | - | 250 | 1100 | 0.016 |
| 1263 | Large | 6 mm | 42 | 25.5 | 14 | 6 | 6 | 58 | 44 | - | 320 | 1500 | 0.027 |
| 1264 | Large | 8 mm | 57 | 32 | 17 | 8 | 8 | 77 | 57 | - | 760 | 2700 | 0.067 |
| 1265 | Large | 10 mm | 72 | 40 | 21 | 10 | 10 | 71 | - | 1280 | 4000 | 0.127 | |
| 1222 | Twisted | 5 mm | 26 | 10 | 10 | 5 | 4 | 38 | 26 | - | 480 | 1100 | 0.016 |
| 1223 | Twisted | 6 mm | 30 | 12 | 12 | 6 | 5 | 45 | 31 | - | 600 | 1500 | 0.027 |
| 1224 | Twisted | 8 mm | 67 | 40 | 16 | 8 | 7 | 60 | 41 | - | 1000 | 3000 | 0.067 |
| 1225 | Twisted | 10 mm | 50 | 20 | 19 | 10 | 9 | 74 | 52 | - | 1440 | 4500 | 0.127 |
* Working loads indicated are for marine use. For industrial use working load = breaking load/5.
| Product Code | Self Locking Shackle - Model | Self Locking Shackle - Size | Availability | Price | |
|---|---|---|---|---|---|
|
WICHARD 1201
|
In stock
|
€4.39 (inc. VAT)
€3.63 (ex. VAT) |
||
|
|
WICHARD 1202
|
In stock
|
€5.09 (inc. VAT)
€4.21 (ex. VAT) |
||
|
|
WICHARD 1203
|
In stock
|
€6.49 (inc. VAT)
€5.36 (ex. VAT) |
||
|
|
WICHARD 1204
|
In stock
|
€10.39 (inc. VAT)
€8.59 (ex. VAT) |
||
|
|
WICHARD 1205
|
In stock
|
€16.99 (inc. VAT)
€14.04 (ex. VAT) |
||
|
|
WICHARD 1206
|
In stock
|
€29.79 (inc. VAT)
€24.62 (ex. VAT) |
||
|
|
WICHARD 1207
|
In stock
|
€60.95 (inc. VAT)
€50.37 (ex. VAT) |
||
|
WICHARD 1211
|
In stock
|
€5.09 (inc. VAT)
€4.21 (ex. VAT) |
||
|
WICHARD 1212
|
In stock
|
€6.09 (inc. VAT)
€5.03 (ex. VAT) |
||
|
WICHARD 1213
|
In stock
|
€7.99 (inc. VAT)
€6.60 (ex. VAT) |
||
|
WICHARD 1214
|
In stock
|
€12.58 (inc. VAT)
€10.40 (ex. VAT) |
||
|
WICHARD 1215
|
In stock
|
€21.19 (inc. VAT)
€17.51 (ex. VAT) |
||
|
WICHARD 1241
|
In stock
|
€5.19 (inc. VAT)
€4.29 (ex. VAT) |
||
|
WICHARD 1242
|
In stock
|
€5.80 (inc. VAT)
€4.79 (ex. VAT) |
||
|
WICHARD 1243
|
In stock
|
€7.59 (inc. VAT)
€6.27 (ex. VAT) |
||
|
WICHARD 1244
|
In stock
|
€11.99 (inc. VAT)
€9.91 (ex. VAT) |
||
|
WICHARD 1245
|
In stock
|
€19.89 (inc. VAT)
€16.44 (ex. VAT) |
||
|
WICHARD 1246
|
In stock
|
€31.79 (inc. VAT)
€26.27 (ex. VAT) |
||
|
WICHARD 1247
|
7 days
|
€82.95 (inc. VAT)
€68.55 (ex. VAT) |
||
|
WICHARD 1248
|
In stock
|
€151.95 (inc. VAT)
€125.58 (ex. VAT) |
||
|
WICHARD 1262
|
In stock
|
€9.29 (inc. VAT)
€7.68 (ex. VAT) |
||
|
WICHARD 1263
|
In stock
|
€12.49 (inc. VAT)
€10.32 (ex. VAT) |
||
|
WICHARD 1264
|
In stock
|
€19.59 (inc. VAT)
€16.19 (ex. VAT) |
||
|
WICHARD 1265
|
In stock
|
€31.48 (inc. VAT)
€26.02 (ex. VAT) |
||
|
WICHARD 1222
|
In stock
|
€7.59 (inc. VAT)
€6.27 (ex. VAT) |
||
|
WICHARD 1223
|
In stock
|
€8.49 (inc. VAT)
€7.02 (ex. VAT) |
||
|
WICHARD 1224
|
In stock
|
€13.89 (inc. VAT)
€11.48 (ex. VAT) |
||
|
WICHARD 1225
|
In stock
|
€22.29 (inc. VAT)
€18.42 (ex. VAT) |
