Speedlink, the new trigger Snap Shackle from Wichard has been developed by using finite element analysis software. Its shape, cut-outs and ribs achieve an excellent strength/weight ratio ideal for spinnaker operations, sheets or halyards both when racing or cruising. Forged in France with HR High Resistance Martensitic X5CrNiCuNb 16-4 stainless steel for maximum strength.

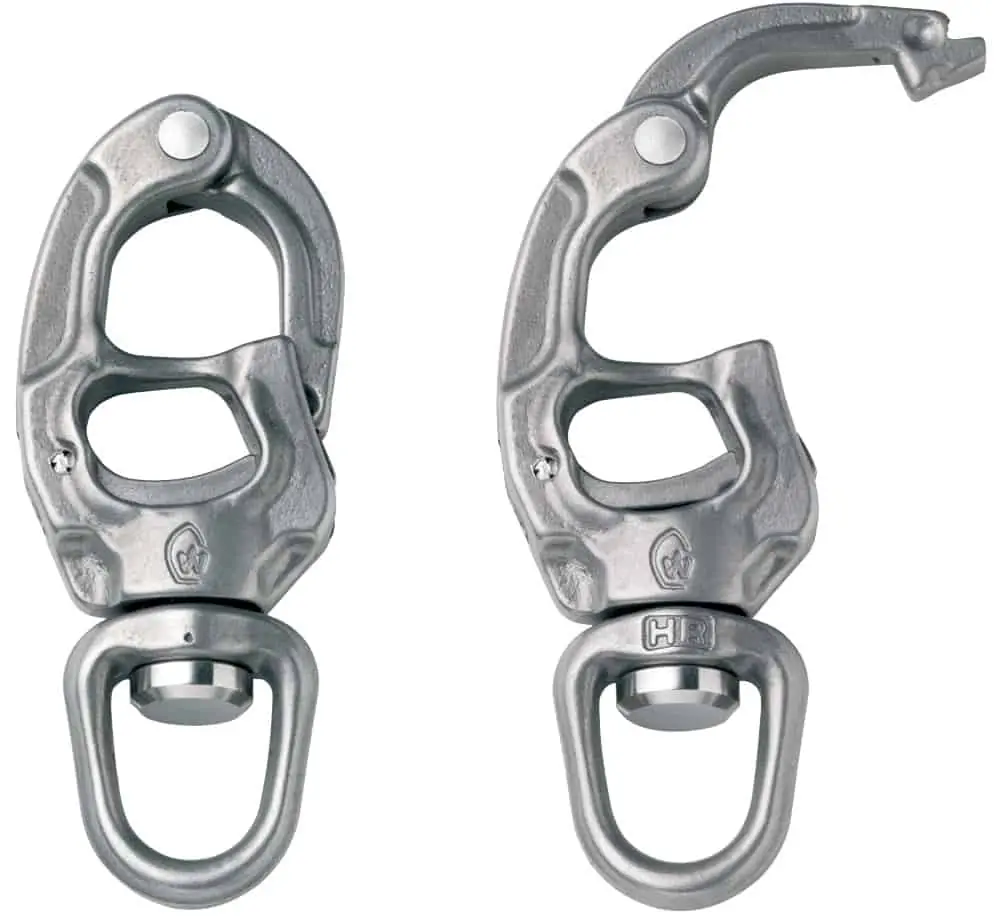

Speedlink can be easily opened under load with a release fid, or manually thanks to the generous aperture diameter and its optimised design. The shape of the latch reduces inertia and avoids unintentional opening, especially under impact. Outstanding working and breaking loads of up to 8700 kg and modern design lines avoid excessive rope wear and prevent adjacent lines from jamming.
- Forged in HR Martensitic stainless steel
- Designed and manufactured in France
- Outstanding working and breaking loads
- Easy to open under load with or without a fid

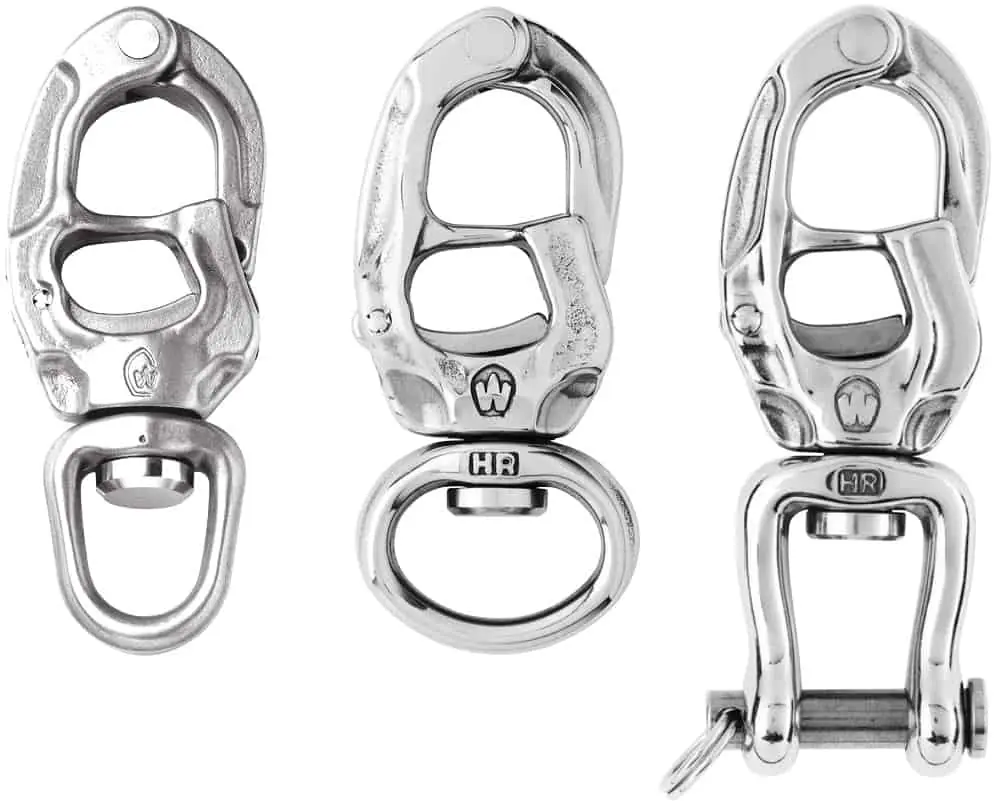

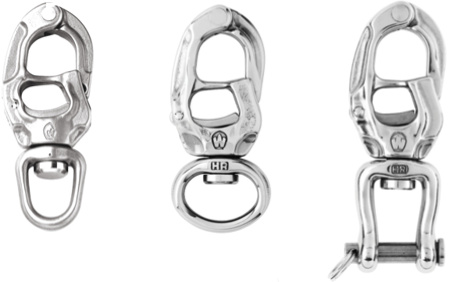

Available en 3 versions:

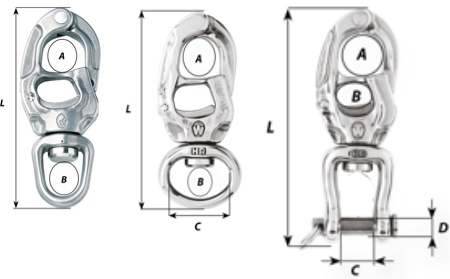

Model | Ref. | Size L mm |
A mm |
B mm |
C mm |
D mm |
Working Load kg |
Breaking Load kg |
Weight g |
Universal Eye | 2650 | 74 | 14 | 11.5 | - | - | 1100 | 2300 | 59 |
Universal Eye | 2652 | 87 | 17 | 15.5 | - | - | 1440 | 3400 | 97 |
Universal Eye | 2654 | 108 | 21 | 22 | - | - | 2320 | 5400 | 173 |
Universal Eye | 2656 | 134 | 25 | 26 | - | - | 4300 | 8700 | 326 |
Webbing Eye | 2750 | 72 | 14 | 11 | 23 | - | 1100 | 2000 | 58 |
Webbing Eye | 2752 | 83 | 17 | 13 | 26 | - | 1440 | 3400 | 95 |
Webbing Eye | 2754 | 102 | 21 | 17 | 35 | - | 2320 | 5400 | 174 |
Webbing Eye | 2756 | 128 | 25 | 21 | 59 | - | 4300 | 8700 | 337 |
Swivel Shackle | 2852 | 105 | 22 | 13 | 11 | 7 | 1440 | 4100 | 110 |
Swivel Shackle | 2856 | 135 | 27 | 19 | 18 | 11 | 4100 | 8700 | 360 |
Code | Wichard Speedlink Model | Wichard Speedlink Size | Availability | Price | |
---|---|---|---|---|---|
WICHARD 2650
|
3 days
|
€130.95 (inc. VAT)
€108.22 (ex. VAT) |
|||
WICHARD 2652
|
In stock
|
€139.95 (inc. VAT)
€115.66 (ex. VAT) |
|||
WICHARD 2654
|
In stock
|
€157.95 (inc. VAT)
€130.54 (ex. VAT) |
|||
WICHARD 2656
|
In stock
|
€210.95 (inc. VAT)
€174.34 (ex. VAT) |
|||
WICHARD 2750
|
3 days
|
€139.95 (inc. VAT)
€115.66 (ex. VAT) |
|||
WICHARD 2752
|
3 days
|
€148.95 (inc. VAT)
€123.10 (ex. VAT) |
|||
WICHARD 2754
|
3 days
|
€166.96 (inc. VAT)
€137.98 (ex. VAT) |
|||
WICHARD 2756
|
3 days
|
€218.95 (inc. VAT)
€180.95 (ex. VAT) |
|||
WICHARD 2852
|
3 days
|
€176.95 (inc. VAT)
€146.24 (ex. VAT) |
|||
WICHARD 2856
|
3 days
|
€231.94 (inc. VAT)
€191.69 (ex. VAT) |
